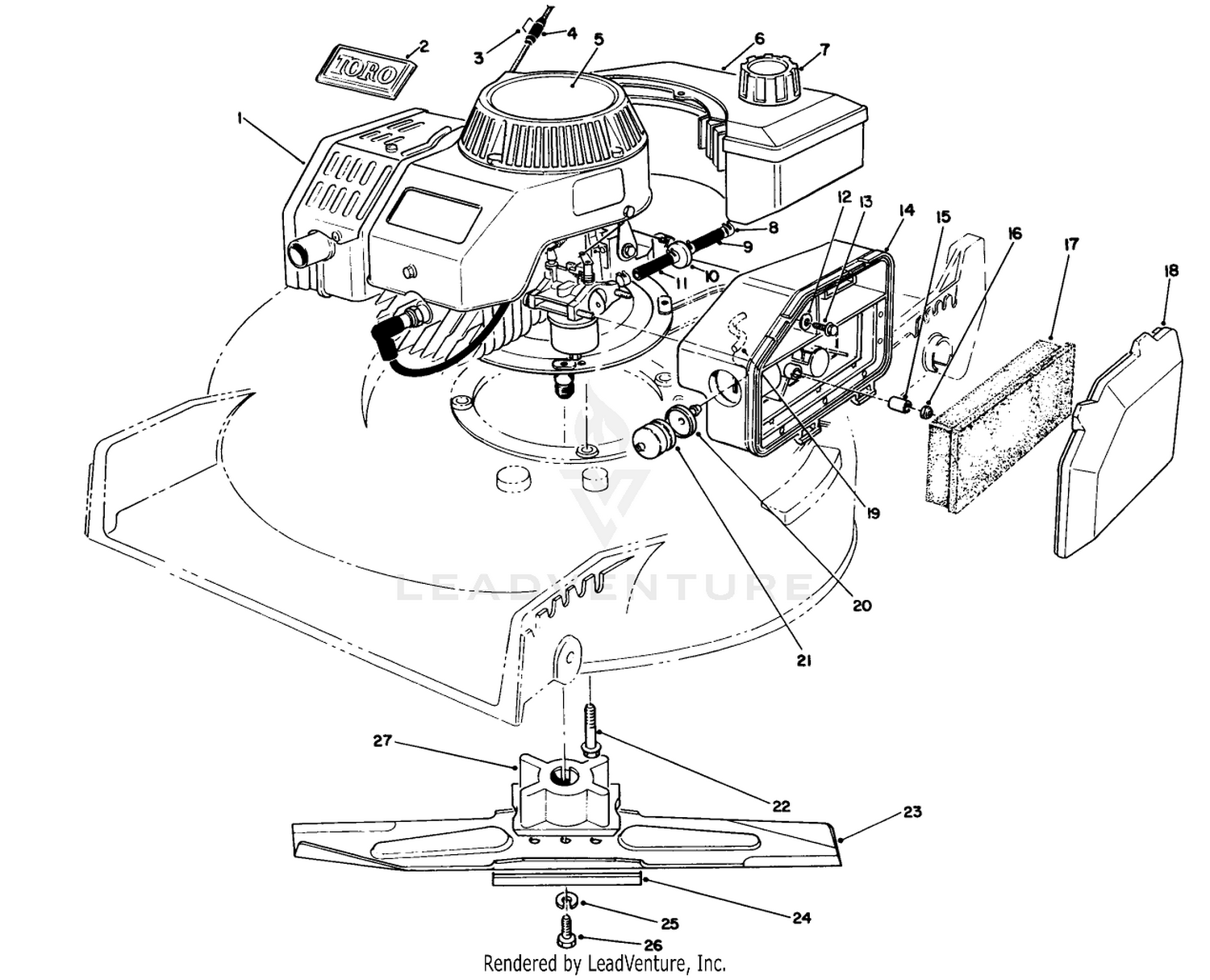

Engine Assembly (serial No. 2005001 Up)

Engine Assembly (serial No. 2005001  Up)

Parts (25)

RefPart NumberDescription
1 12-8099 ENGINE SHORT BLOCK This part replaces 51-0413. Price: Call Us
2 98-3206 DECAL This part replaces 46-8290. Price: $1.99
4 81-3980 STOP Price: $5.11
5 66-0510 DISCONTINUED Price: Call Us
6 99-5263 DISCONTINUED This part replaces 81-0042. Price: Call Us
7 55-3575 GAS CAP ASM Price: $12.03
8 2412-95 CLAMP-FUEL LINE Price: $0.93
9 51-3215 HOSE-FUEL Price: $2.38
10 56-6360 FILTER-FUEL Price: $5.79
11 51-3216 HOSE-FUEL Price: $2.64
12 3256-16 WASHER-FLAT Price: $0.39
13 51-2690 SCREW-HH Price: $1.24
14 63-9330 BODY-AIR CLEANER Price: Call Us
15 62-3980 SPACER Price: $1.65
16 50-7180 NUT Price: $3.48
17 63-9380 ELEMENT-AIR CLEANER Price: $8.74
18 63-9340 COVER-AIR CLEANER Price: $32.52
19 44-3172 HOSE-PRIMER Price: $3.63
20 44-2750 BODY-PRIMER Price: $6.55
21 66-7460 BULB-PRIMER Price: $3.05
22 66-9300 SCREW-HHF Price: $4.69
23 91-2256-03 BLADE-21 INCH This part replaces 14-1659. Price: $21.88
24 80-0510-03 STIFFENER-BLADE This part replaces 80-0510. Price: $10.93
25 3253-22 WASHER-LOCK Price: $2.09
26 26-0670 SCREW-BLADE Price: $3.65
