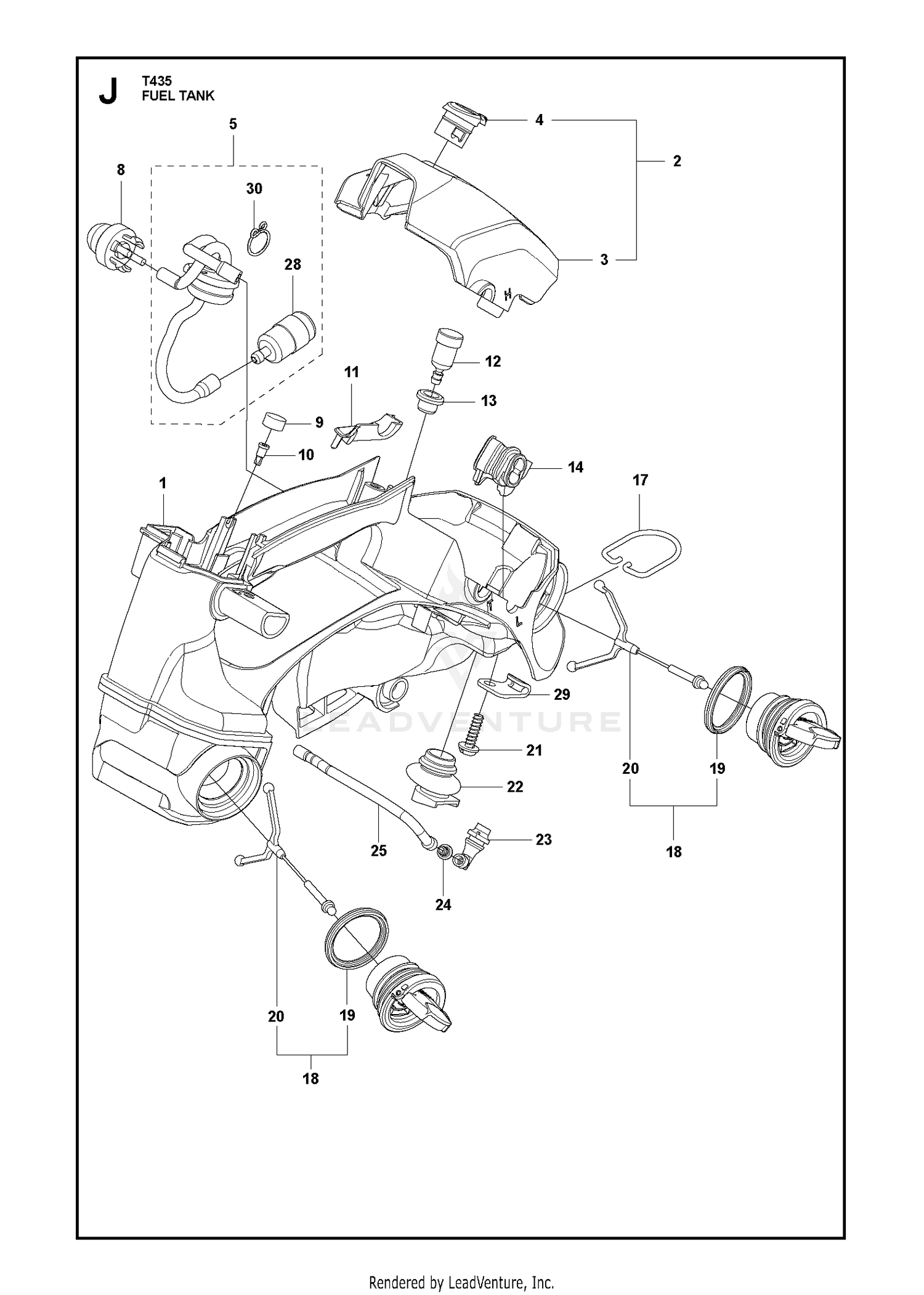

FUEL TANK
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 522017701 | COVER COMP Price: $14.99 |
| 3 | 522017801 | COVER CLEANER Price: $22.99 |
| 4 | 522017901 | KNOB Price: $9.99 |
| 8 | 503936601 | AIR PURGE BUBBLE Price: $9.99 |
| 9 | 514235301 | SEAL This part replaces 516948101. Price: $3.99 |
| 10 | 516961901 | AIR CONTROL BREATHER Price: $3.99 |
| 11 | 522017601 | BRACKET KNOB Price: $5.99 |
| 12 | 513751501 | BREATHER Price: $9.99 |
| 13 | 514201402 | GROMMETS Price: $3.99 |
| 14 | 579606501 | GUIDE CARB Price: $9.99 |
| 17 | 522019401 | EYELET Price: $12.99 |
| 18 | 577878603 | TANK CAP ASSY Price: $9.99 |
| 19 | 589241301 | GASKET TANK CAP Price: $4.99 |
| 20 | 503578901 | TANK LOCK Price: $4.99 |
| 21 | 521518001 | SCREW (RPLS 267132210) Price: $2.99 |
| 22 | 522647101 | PIPE, AIR Price: $3.99 |
| 23 | 522647802 | PIPE 848CE085R0 Price: $3.99 |
| 24 | 516950301 | JOINT Price: $2.99 |
| 25 | 595526906 | FUEL HOSE L=105 ROHS2 Price: $3.99 |
| 28 | 575960701 | FILTER Price: $9.99 |
| 29 | 522019301 | PLATE EYELET Price: $4.99 |
| 30 | 506707001 | CLIP Price: $3.99 |
