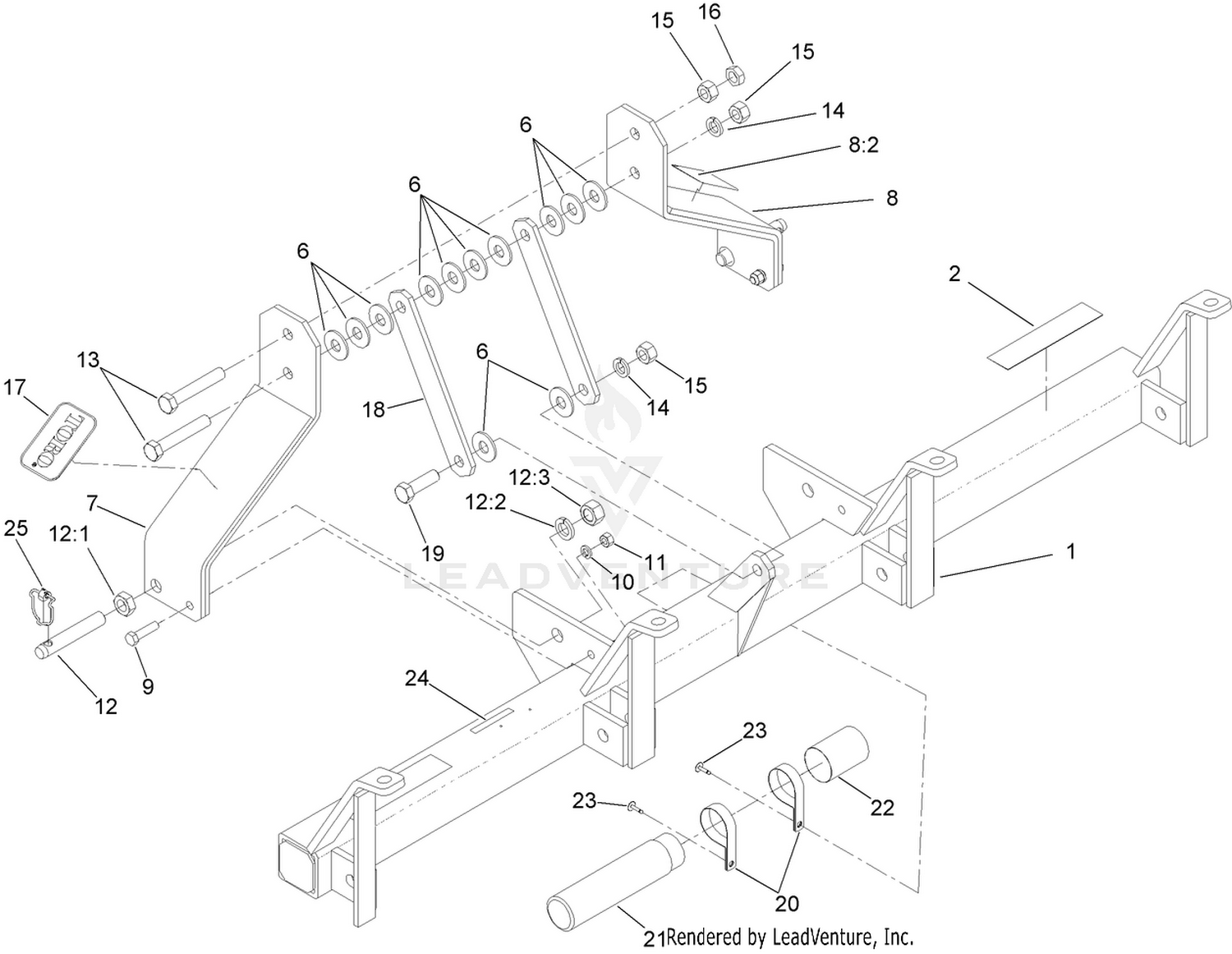

Three Point Frame Assembly
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 68-705-4053-01 | FRAME-MAIN Price: $1,620.88 |
| 2 | 01-506-0640 | DECAL Price: $34.09 |
| 6 | 3256-8 | WASHER-FLAT Price: $1.09 |
| 7 | 68-705-4061-01 | ARM-LIFT, LH Price: $582.69 |
| 8 | 106-0228 | ARM-LIFT, RH Price: $582.69 |
| 9 | 325-8 | SCREW-HH Price: $3.52 |
| 10 | 3253-7 | WASHER-LOCK Price: $0.27 |
| 11 | 3217-9 | NUT-HH Price: $0.37 |
| 12 | 01-252-0010 | LIFT ARM PIN ADJUSTMENT ASM Price: $20.22 |
| 13 | 328-8 | SCREW-HH Price: $5.54 |
| 14 | 3253-9 | WASHER-LOCK Price: $1.02 |
| 15 | 3217-12 | NUT-HEX Price: $3.12 |
| 16 | 3218-7 | NUT-JAM Price: $3.86 |
| 17 | 67-1300 | DECAL Price: $29.99 |
| 18 | 68-704-4201-01 | STABILIZER-HITCH Price: $32.03 |
| 19 | 328-2 | SCREW-HH Price: $6.51 |
| 20 | 2412-133 | CLAMP-R Price: $3.19 |
| 21 | 104-7050 | TUBE-MANUAL Price: $8.76 |
| 22 | 104-7048 | CAP-HOUSING Price: $5.21 |
| 23 | 01-161-0020 | RIVET-POP Price: $0.95 |
| 24 | 133-8061 | DECAL-WARNING Price: $0.79 |
