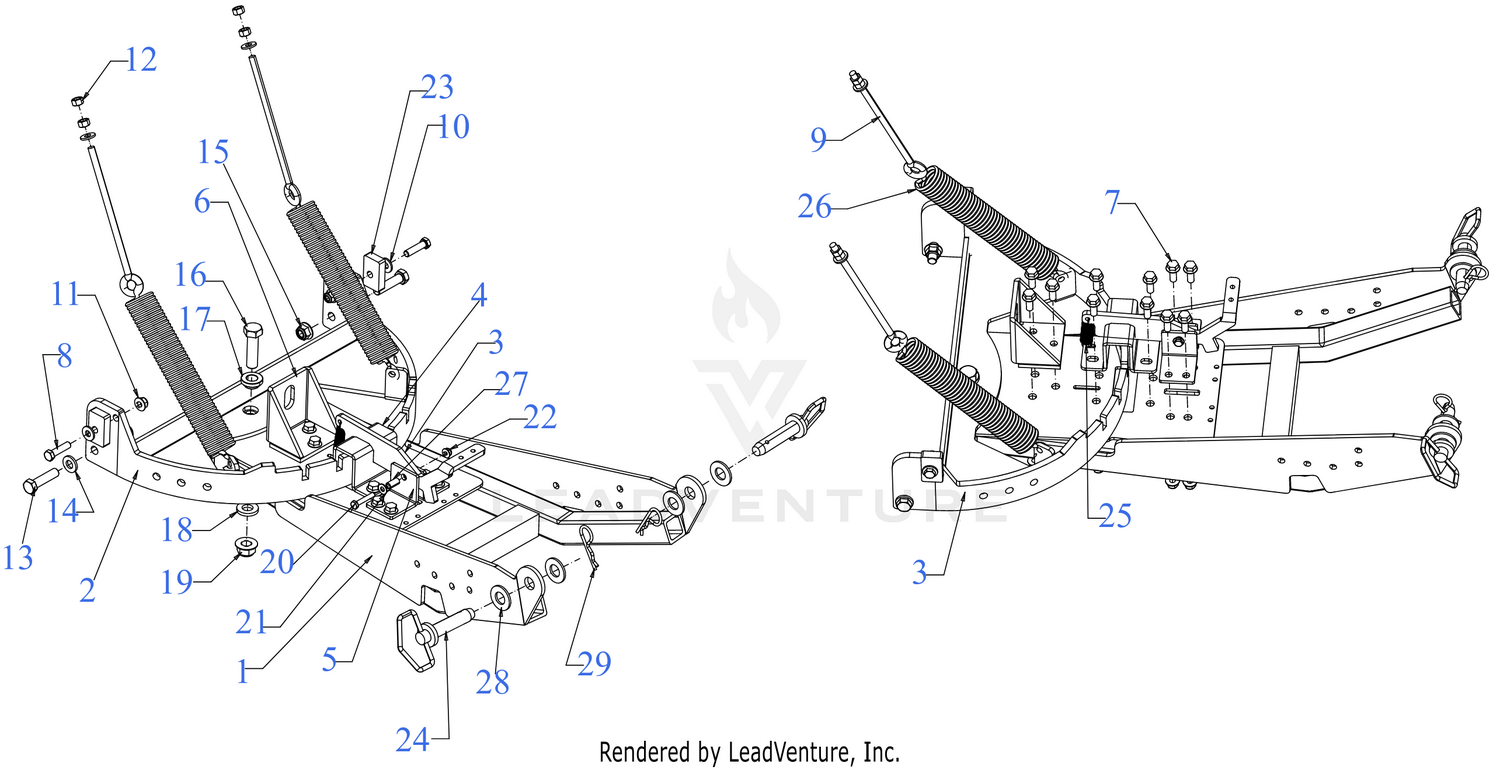

| Ref | Part Number | Description |
|---|
| 1 |
N/A |
LIFT ARM |
| 2 |
N/A |
SWIVEL PLATE |
| 3 |
N/A |
PIVOT LOCK LEVER |
| 4 |
N/A |
PIVOT LEVER SUPPORT BRACKET |
| 5 |
N/A |
PIVOT LEVER RISER |
| 6 |
N/A |
WINCH ATTACHMENT BRACKET |
| 7 |
710-04042 |
HEX SCREW 3/8-16 Price: $4.05 |
| 8 |
710-0520 |
SCREW 3/8-16 x 1.50 Price: $3.93 |
| 10 |
736-0262 |
FLAT WASHER .385X.870X.090 Price: $3.66 |
| 11 |
712-04065 |
NUT Price: $3.68 |
| 12 |
912-3017 |
HEX NUT Price: $3.90 |
| 13 |
710-0489 |
SCREW 1/2-13 x 2 GR5 Price: $6.24 |
| 14 |
736-0326 |
Washer - Flat This part replaces 936-0326. Price: $3.89 |
| 15 |
712-04150 |
NUT Price: $3.74 |
| 16 |
710-05000 |
SCREW 5/8-11 x 2.25 GR5 Price: $2.77 |
| 18 |
736-04088 |
FLAT WASHER .635 x 1.24 x .181 This part replaces 936-04088. Price: $3.90 |
| 19 |
712-04151 |
FLANGE LOCK NUT Price: $3.37 |
| 20 |
710-0606 |
SCREW 1/4-20 x 1.50 GR.5 Price: $4.67 |
| 21 |
736-0463 |
Washer, 9/32 X 5/8 X .062 C-Z This part replaces 936-0463. Price: $3.91 |
| 22 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 23 |
N/A |
STOP BLOCK |
| 24 |
N/A |
QUICK RELEASE PIN |
| 25 |
N/A |
LOCK LEVER SPRING |
| 28 |
736-0315 |
FLAT WASHER Price: $5.94 |
