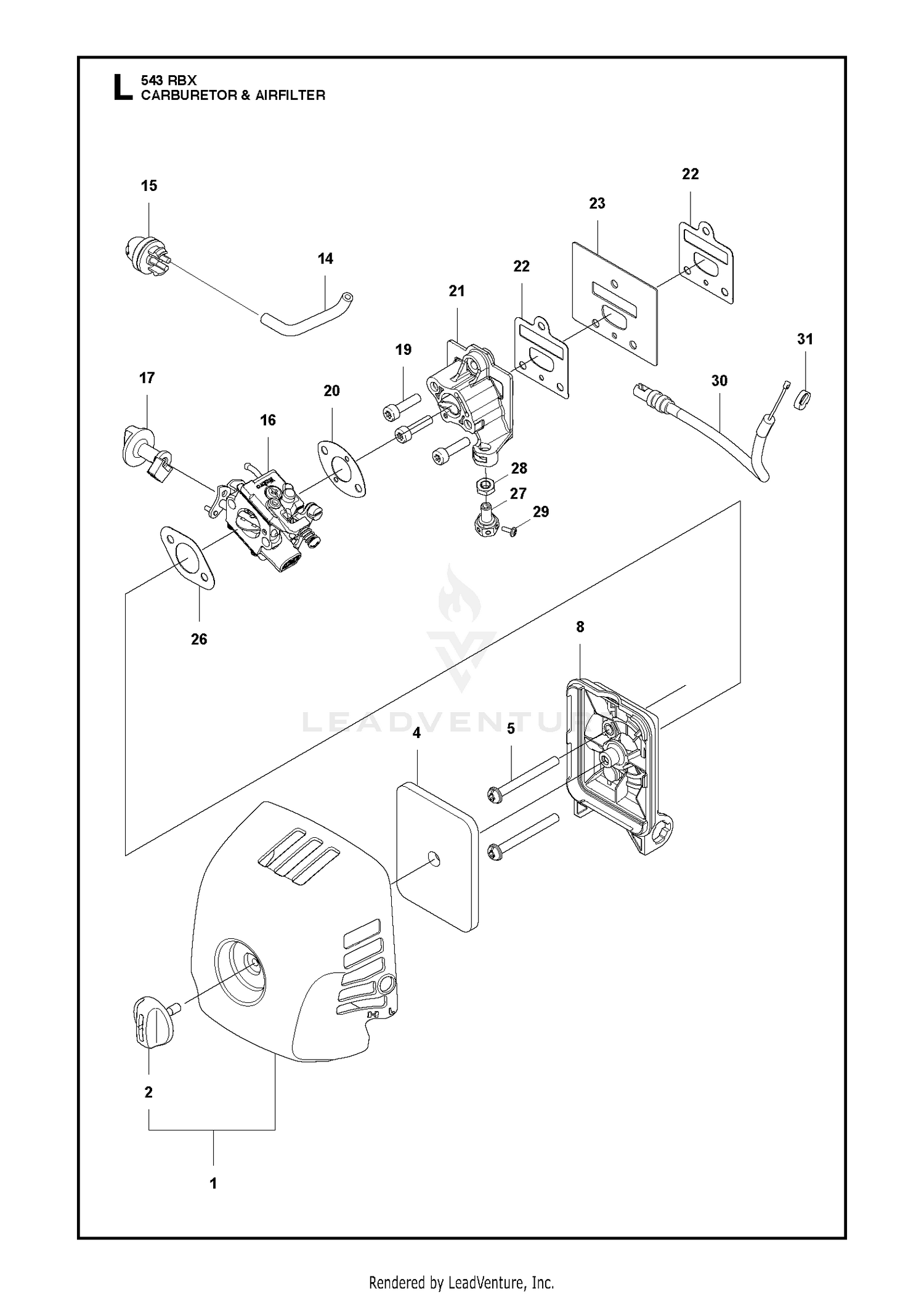

CARBURETOR & AIR FILTER
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 22-8330 | PLUG Price: $64.59 |
| 1 | 577980001 | AIR FILTER COVER ASSY GZ40N7 Price: $11.99 |
| 2 | 237-42 | O-RING Price: $2.78 |
| 2 | 577979801 | TURNING KNOB GZ40N7 Price: $2.99 |
| 3 | 22-8340 | SPRING Price: $19.09 |
| 4 | 22-8350 | BALL Price: $12.28 |
| 4 | 577926701 | ELEMENT Price: $5.99 |
| 5 | 22-8370 | SEAT-VALVE Price: $88.05 |
| 5 | 521515501 | BOLT TORX Price: $2.99 |
| 6 | 22-8360 | PIN Price: $43.02 |
| 8 | 22-8420 | SPOOL Price: $437.22 |
| 8 | 576685501 | HOUSING Price: $8.99 |
| 9 | 22-8500 | O-RING Price: $18.87 |
| 10 | 22-8380 | RETAINER Price: $17.86 |
| 11 | 22-8410 | SPRING Price: $17.61 |
| 12 | 23-3030 | SPACER Price: $33.93 |
| 13 | 22-8480 | RING-SNAP Price: $49.87 |
| 14 | 577509501 | PIPE L70 Price: $3.99 |
| 15 | 513789301 | PRIMARY BTN Price: $9.99 |
| 16 | 577992806 | Carburetors This part replaces 577992805. Price: $99.99 |
| 17 | 577133101 | KNOB Price: $3.99 |
| 19 | 506689001 | BOLT TORX Price: $3.99 |
| 20 | 577673801 | GASKET Price: $3.99 |
| 21 | 576685801 | INSULATOR Price: $9.99 |
| 22 | 585996601 | GASKET, INSULATOR This part replaces 576785401. Price: $5.99 |
| 23 | 578115301 | PLATE Price: $2.99 |
| 27 | 505308201 | SCREW CABLE ADJUST Price: $29.99 |
| 28 | 510487401 | NUT Price: $2.99 |
| 29 | 505308301 | SCREW Price: $2.99 |
| 30 | 521528401 | Price: Call Us |
| 31 | 513352401 | CAP Price: $2.99 |
