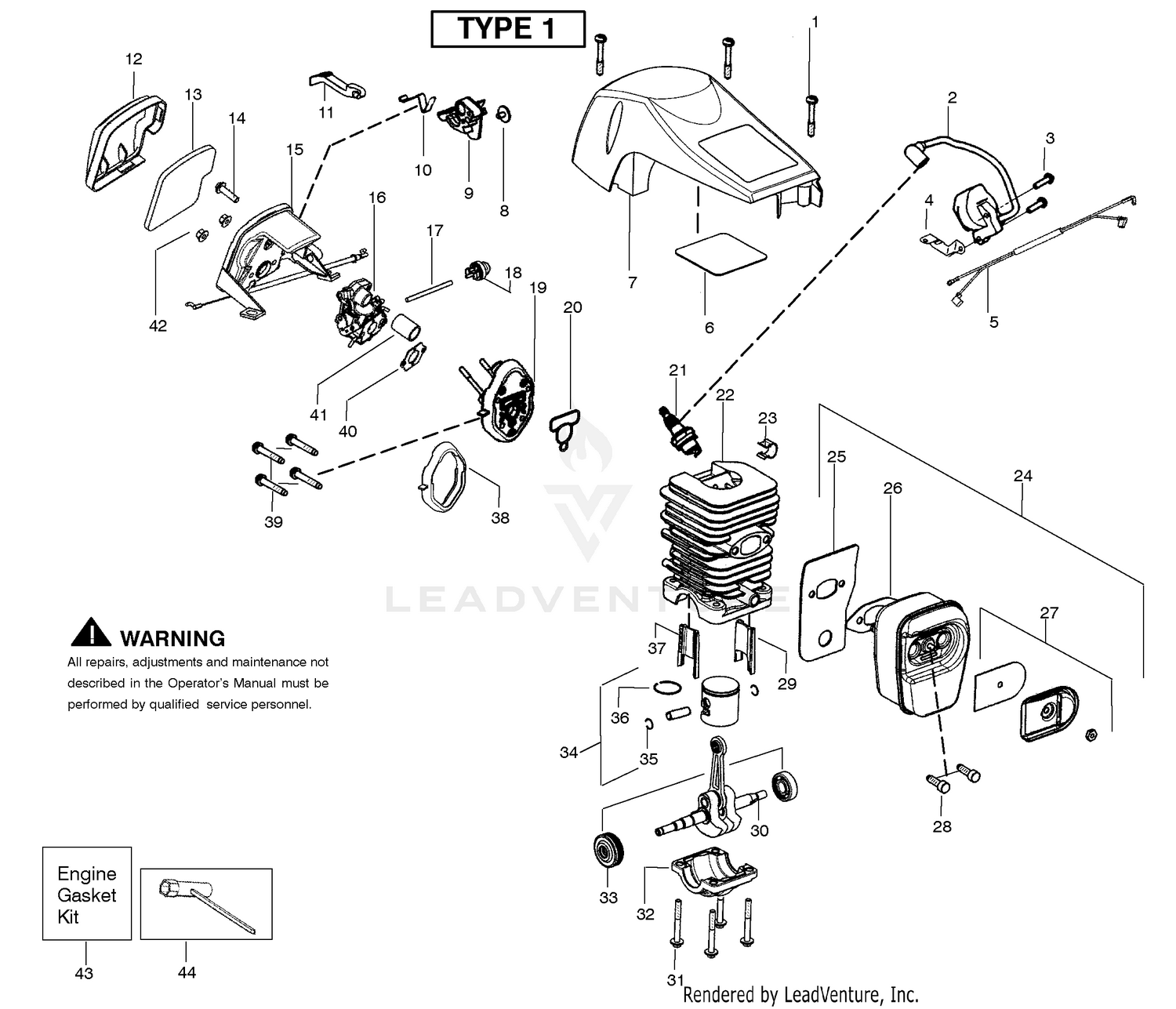

| Ref | Part Number | Description |
|---|
| 1 |
38-4270 |
DISCONTINUED Price: Call Us |
| 1 |
530016153 |
Screw Price: $1.99 |
| 2 |
3-9337 |
DISCONTINUED Price: Call Us |
| 2 |
573992801 |
KIT MODULE & FLYWHEEL This part replaces 530039232. Price: $39.99 |
| 3 |
530016432 |
Screw Price: $1.99 |
| 4 |
32122-20 |
DISCONTINUED Price: Call Us |
| 4 |
530058661 |
Strap-Ground Price: $1.99 |
| 5 |
3217-5 |
NUT-HEX Price: $0.25 |
| 5 |
530057943 |
Assy-Wire Harness Price: $5.99 |
| 6 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 6 |
530055698 |
Reflector-Tape Price: $1.99 |
| 7 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 8 |
283-10 |
PIN-CLEVIS Price: $7.43 |
| 8 |
530016080 |
Screw Price: $1.99 |
| 9 |
32122-30 |
SCREW-PTH Price: $0.28 |
| 9 |
530057891 |
Lever-Ignition Switch Price: $4.99 |
| 10 |
249-10 |
DISCONTINUED Price: Call Us |
| 10 |
530057908 |
Spring-Ignition Switch Price: $2.99 |
| 11 |
3253-17 |
WASHER-LOCK Price: $0.25 |
| 11 |
530059399 |
Knob-Choke Price: $1.99 |
| 12 |
3217-26 |
NUT-HEX Price: $0.25 |
| 12 |
530059001 |
Cover-Air Filter Price: $3.99 |
| 13 |
530057869 |
Filter-Air Price: $1.99 |
| 13 |
8-0030 |
DISCONTINUED Price: Call Us |
| 14 |
5-3276 |
DISCONTINUED Price: Call Us |
| 14 |
530016425 |
Screw Price: $1.99 |
| 15 |
40-7830 |
DISCONTINUED Price: Call Us |
| 15 |
530150029 |
Housing-Air Filter w/cable Price: $4.99 |
| 16 |
5-0946 |
KEY-SQUARE Price: $1.76 |
| 16 |
545070601 |
Carburetor Zama W-26 This part replaces 530035590. Price: $27.99 |
| 17 |
322-3 |
SCREW-HH Price: $0.79 |
| 18 |
51-2710 |
DISCONTINUED This part replaces 5-1894. Price: Call Us |
| 18 |
530047721 |
Bulb-Purge "snap-in" Price: $3.99 |
| 19 |
3-8516 |
DISCONTINUED Price: Call Us |
| 20 |
6-9930 |
DISCONTINUED Price: Call Us |
| 21 |
3296-4 |
NUT-LOCK Price: $0.25 |
| 22 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 23 |
3242-7 |
Setscrew Price: Call Us |
| 23 |
530058660 |
Clip-High Tension Lead Price: $1.99 |
| 24 |
3-9374 |
DISCONTINUED Price: Call Us |
| 25 |
218-219 |
DISCONTINUED Price: Call Us |
| 25 |
530057942 |
Backplate-Muffler Price: $5.99 |
| 26 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 27 |
3290-244 |
WASHER-LOCK Price: $0.85 |
| 27 |
530071886 |
Kit-Spark Arrestor Price: $9.99 |
| 28 |
40-7480 |
DISCONTINUED Price: Call Us |
| 28 |
530016338 |
Bolt-Muffler Price: $1.99 |
| 29 |
323-6 |
SCREW-HH Price: $0.66 |
| 30 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 30 |
545112901 |
Assy-Crankshaft/Rod This part replaces 530012537. Price: $49.99 |
| 31 |
20-9530 |
WASHER-END Price: $28.36 |
| 31 |
530016417 |
Bolt Price: $1.99 |
| 32 |
530057941 |
Cap-Crankcase Price: $5.99 |
| 32 |
57-6480 |
DISCONTINUED This part replaces 38-6150. Price: Call Us |
| 33 |
298-8 |
DISCONTINUED Price: Call Us |
| 33 |
530056363 |
Assy-Bearing/Seal Price: $11.99 |
| 34 |
237-62 |
DISCONTINUED Price: Call Us |
| 35 |
283-15 |
PIN-CLEVIS Price: $4.07 |
| 35 |
530015697 |
Retainer-Piston Pin Price: $1.99 |
| 36 |
3-8782 |
DISCONTINUED Price: Call Us |
| 36 |
545160401 |
Ring-Piston This part replaces 530038729. Price: $2.99 |
| 37 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 38 |
3217-7 |
NUT-HEX Price: $0.28 |
| 39 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 39 |
530016426 |
Screw Price: $1.99 |
| 40 |
3217-6 |
NUT-HEX Price: $1.19 |
| 41 |
3-8524 |
SWAGED STRG CABLE ASM Price: $226.19 |
| 41 |
530057926 |
Tube-Intake Price: $1.99 |
| 42 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 42 |
530016101 |
Nut-Carb. Price: $1.99 |
| 43 |
3254-8 |
WASHER-LOCK Price: $0.37 |
| 44 |
256-268 |
BUSHING Price: $18.24 |
| 44 |
530031163 |
Wrench-Bar Price: $4.99 |
| 45 |
257-4 |
DISCONTINUED Price: Call Us |
| 46 |
40-7870 |
DISCONTINUED Price: Call Us |
| 47 |
40-7050 |
DISCONTINUED Price: Call Us |
| 48 |
251-182 |
DISCONTINUED Price: Call Us |
| 49 |
242-36 |
DISCONTINUED Price: Call Us |
| 50 |
232-3 |
TUBE-INNER Price: $30.40 |
| 51 |
231-21 |
DISCONTINUED Price: Call Us |
| 52 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 53 |
3-8542 |
DISCONTINUED Price: Call Us |
| 54 |
323-20 |
SCREW-HH Price: $1.28 |
| 55 |
HY2562 |
DISCONTINUED This part replaces 256-2. Price: Call Us |
| 56 |
3-8523 |
DISCONTINUED Price: Call Us |
| 57 |
3257-30 |
KEY-WOODRUFF Price: $5.35 |
| 58 |
3-8521 |
DISCONTINUED Price: Call Us |
| 59 |
32121-34 |
PIN-ROLL Price: $1.31 |
| 60 |
40-7540 |
DISCONTINUED Price: Call Us |
| 61 |
3290-239 |
DISCONTINUED Price: Call Us |
| 62 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 63 |
3-9046 |
DISCONTINUED Price: Call Us |
| 64 |
3-8522 |
DISCONTINUED Price: Call Us |
| 65 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 66 |
321-10 |
SCREW-HH Price: $1.29 |
| 67 |
38-1420 |
SWITCH-SEAT Price: Call Us |
| 68 |
322-1 |
SCREW-HH Price: $0.22 |
| 69 |
40-7120 |
DISCONTINUED Price: Call Us |
| 70 |
3217-26 |
NUT-HEX Price: $0.25 |
| 71 |
3253-17 |
WASHER-LOCK Price: $0.25 |
| 73 |
32121-10 |
PIN-ROLL Price: $6.99 |
| 74 |
25-6250 |
DISCONTINUED Price: Call Us |
| 75 |
24-2090 |
STEERING WHEEL CAP Price: $30.55 |
