| Ref | Part Number | Description |
|---|
| 1 |
105-2917 |
INSTRUMENT PANEL ASM Price: $119.85 |
| 1 |
165892 |

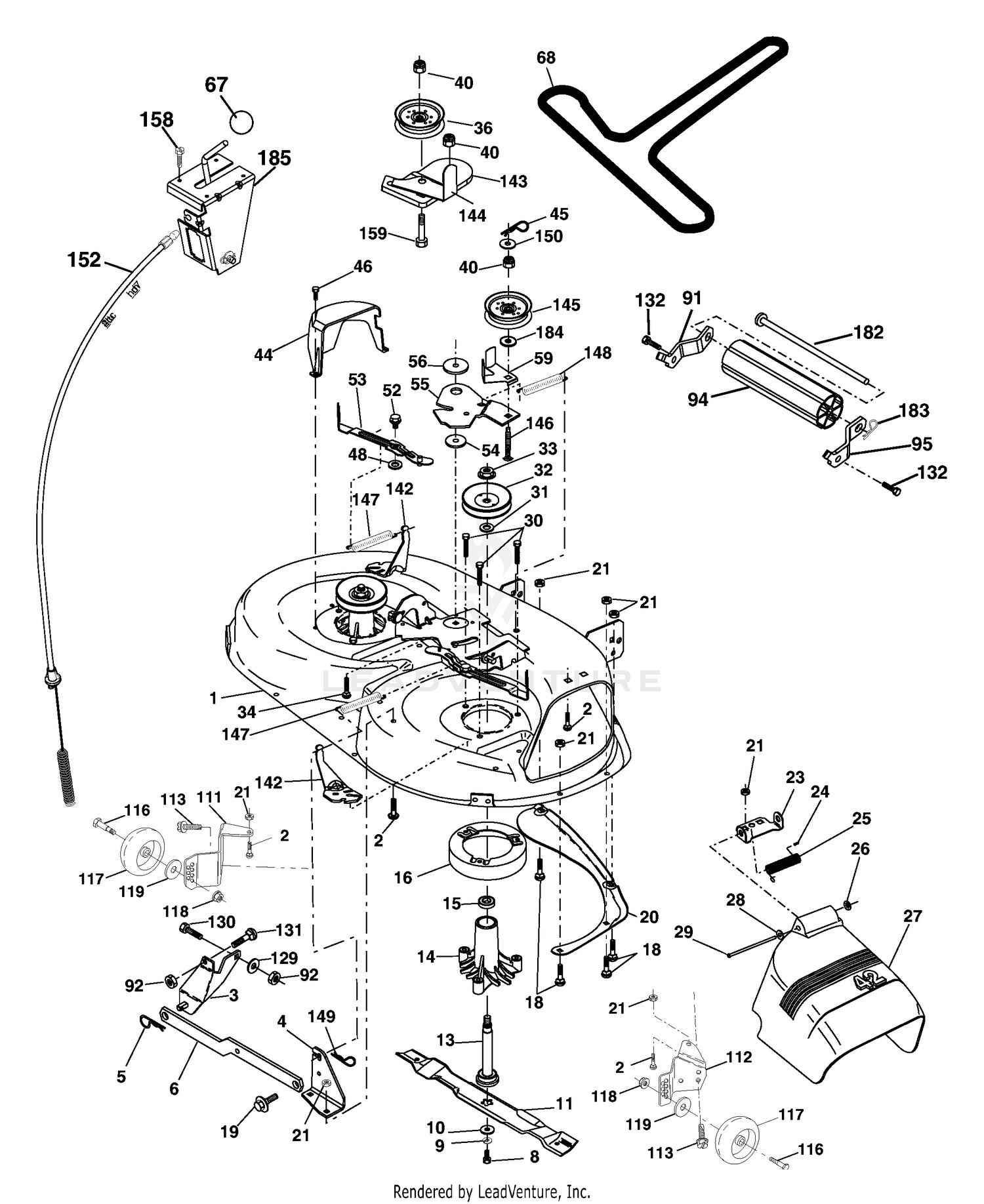

Mower Deck Assembly, 42" Price: Call Us |
| 2 |
72140506 |
Bolt Price: Call Us |
| 2 |
98-9339 |
GAUGE-FUEL Price: $115.28 |
| 3 |
112-3528 |
HARNESS-WIRE Price: $451.16 |
| 3 |
138017 |
Bracket Asm Fr. Sway Bar 3/42 Price: Call Us |
| 4 |
165460 |
Bracket Asm Deck 42" Sway Bar Price: Call Us |
| 4 |
32128-30 |
NUT Price: $2.69 |
| 5 |
322-3 |
SCREW-HH Price: $0.79 |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 6 |
178024 |
Bar Sway Deck Price: Call Us |
| 6 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 7 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 8 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 8 |
850857 |
Bolt 3/8-24 x 1.25 Gr. 8 patched Price: Call Us |
| 9 |
10030600 |
Washer, Lock Price: Call Us |
| 9 |
106-5190 |
BATTERY Price: $170.85 |
| 10 |
104-9497 |
CABLE-BATTERY, NEGATIVE Price: $75.01 |
| 11 |
95-8853 |
CABLE-BATTERY, POSITIVE Price: $95.21 |
| 12 |
24-6420-03 |
HOLDDOWN-BATTERY Price: $55.90 |
| 13 |
137645 |
Shaft Assembly, Mandrel, Vented Price: Call Us |
| 13 |
24-6390 |
STUD-HOLDDOWN, BATTERY Price: $19.83 |
| 14 |
128774 |
Housing, Mandrel, Vented Price: Call Us |
| 14 |
3217-6 |
NUT-HEX Price: $1.19 |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 15 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 16 |
174493 |
Stripper, Mandrel Deck Price: Call Us |
| 16 |
32103-2 |
NUT-WING Price: $0.68 |
| 18 |
120-2244 |
HOURMETER This part replaces 66-2950. Price: $48.06 |
| 18 |
72140505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 19 |
112-6561 |
WARNING LIGHT ASM This part replaces 98-9306. Price: $121.84 |
| 19 |
132827 |
Bolt, Shoulder Price: Call Us |
| 20 |
159770 |
Baffle, Vortex Price: Call Us |
| 20 |
98-9308 |
GAUGE-TEMPERATURE Price: $112.90 |
| 21 |
100-8072 |
SWITCH Price: $94.07 |
| 21 |
73680500 |
Nut Price: Call Us |
| 22 |
104-2541 |
SWITCH ASM Price: $36.70 |
| 23 |
177563 |
Bracket, Deflector Mower 42" Price: Call Us |
| 23 |
63-8360 |
KEY-IGNITION Price: $5.29 |
| 24 |
105304X |
Cap, Sleeve 80 x 112 Blk Mower Price: Call Us |
| 24 |
43-3990 |
CONTROL-THROTTLE Price: $49.39 |
| 25 |
123713X |
Spring, Torsion, Deflector 2 52 Price: Call Us |
| 25 |
3290-134 |
SCREW Price: $0.27 |
| 26 |
110452X |
Nut, Push Phos & Oil Price: Call Us |
| 26 |
3296-12 |
NUT-LOCK, NI Price: $1.29 |
| 27 |
105-0002-01 |
BRACKET-RELAY Price: $34.06 |
| 27 |
130968X428 |
Shield, Deflector 42" Blk Price: Call Us |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: Call Us |
| 28 |
99-7430 |
RELAY-MINI Price: $22.99 |
| 29 |
131491 |
Rod, Hinge 42" 6 75 W/G Price: Call Us |
| 29 |
98-7611 |
CONTROLLER-GLOW Price: $316.53 |
| 30 |
173984 |
Screw Thdrol Price: Call Us |
| 30 |
37-2690 |
CAPACITOR Price: $155.98 |
| 31 |
187690 |
Washer, Spacer Mower Vented Price: Call Us |
| 31 |
2412-74 |
R-CLAMP Price: $2.37 |
| 32 |
173436 |
Pulley, Mandrel Price: Call Us |
| 32 |
321-4 |
SCREW-HH Price: $0.99 |
| 33 |
178342 |
Nut, Toplock Price: Call Us |
| 34 |
72110612 |
Bolt Carr SH 3/8-16 x 1-1/2 Gr.5 Price: Call Us |
| 36 |
173438 |
Pulley, Idler, Flat Price: Call Us |
| 40 |
73900600 |
Nut Lock 3/8-16 Price: Call Us |
| 44 |
140088 |
Guard, Mandrel, LH Price: Call Us |
| 45 |
4497H |
Retainer Price: Call Us |
| 46 |
137729 |
Screw, Thdrol 1/4-20 x 5/8 T Price: Call Us |
| 48 |
133944 |
Washer, Hardened Price: Call Us |
| 52 |
139888 |
Bolt, Shoulder 5/16-18 unc Price: Call Us |
| 53 |
184907 |
Arm Assembly, Pad, Brake Price: Call Us |
| 54 |
178515 |
Washer, Hardened Price: Call Us |
| 55 |
155046 |
Arm, Idler Price: Call Us |
| 56 |
122052X |
Spacer, Retainer Price: Call Us |
| 59 |
141043 |
Guard TUV Idler Price: Call Us |
| 67 |
171598 |
Knob Round Price: Call Us |
| 68 |
144959 |
V-Belt, 42" Mower Price: Call Us |
| 91 |
180532 |
Bracket Asm LH Price: Call Us |
| 92 |
73800600 |
Nut Lock Hex 3/8-16 unc Price: Call Us |
| 94 |
132264 |
Roller Nose Price: Call Us |
| 95 |
180533 |
Bracket Nose RH Price: Call Us |
| 111 |
179292 |
Bracket Wheel Guage LH Price: Call Us |
| 112 |
179293 |
Bracket Wheel Guage RH Price: Call Us |
| 113 |
17060510 |
Screw 5/16-18 Price: Call Us |
| 116 |
4898H |
Bolt, Shoulder Price: Call Us |
| 117 |
188606 |
Wheel, Gauge Price: Call Us |
| 118 |
73930600 |
Nut Centerlock 3/8-16 Price: Call Us |
| 119 |
19121414 |
Washer 3/8 x 7/8 x 14 Ga. Price: Call Us |
| 129 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 130 |
74780616 |
Bolt Fin Hex 3/8-16 x 1 Price: Call Us |
| 131 |
72140608 |
Bolt Rdhd Sqnk 3/8-16 x 1 Price: Call Us |
| 132 |
17000612 |
Screw 3/8-16 x 3/4 Price: Call Us |
| 142 |
165890 |
Arm Spring Brake Mower Price: Call Us |
| 143 |
157109 |
Bracket Arm Idler 42" Price: Call Us |
| 144 |
173441 |
Keeper Belt 42" Clutch Cable Price: Call Us |
| 145 |
173437 |
Pulley Idler Flat Price: Call Us |
| 146 |
173443 |
Bolt Carriage Idler Price: Call Us |
| 147 |
131335 |
Spring Extension Price: Call Us |
| 148 |
169022 |
Spring Return Idler Price: Call Us |
| 149 |
165898 |
Retainer Spring Yellow Price: Call Us |
| 150 |
19091210 |
Washer 9/32 x 3/4 x 10 Ga. Price: Call Us |
| 152 |
169676 |
Clutch Cable 42" Price: Call Us |
| 158 |
17720408 |
Screw Hex Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 159 |
72140614 |
Bolt Rdhd Sqn 3/8-16 unc x 1-3/4 Price: Call Us |
| 182 |
179126 |
Rod Roller Nose Price: Call Us |
| 183 |
163552 |
Retainer Clip Price: Call Us |
| 184 |
19131410 |
Washer 13/32 x 7/8 x 10 Ga. Price: Call Us |
| 185 |
188234 |
Head Asm Cable Clutch Price: Call Us |
