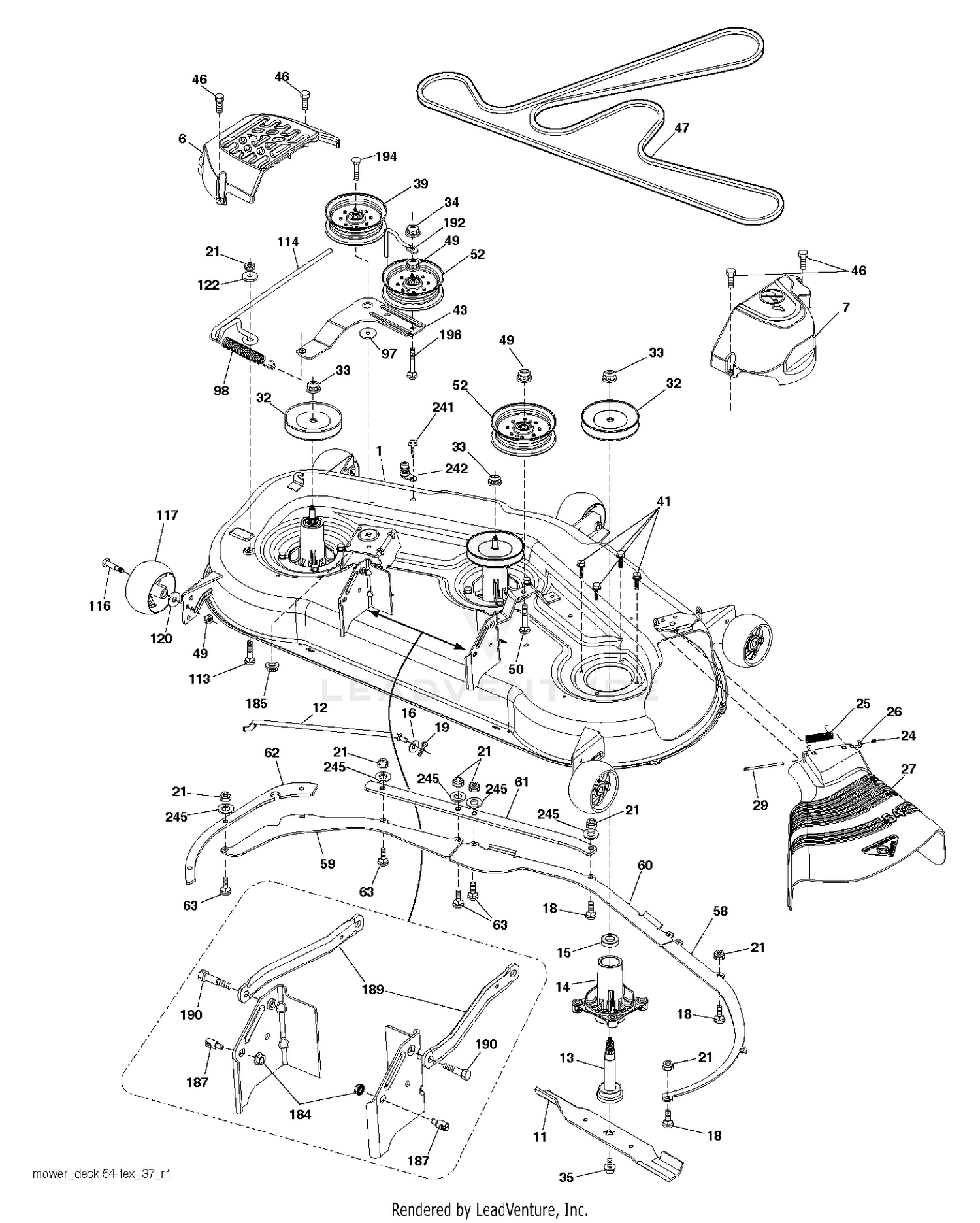

| Ref | Part Number | Description |
|---|
| 1 |
104-5269 |
FAN This part replaces 92-2961. Price: $287.64 |
| 1 |
532418230 |
DECK SVC 54" 417743X668 This part replaces 532441847. Price: $649.99 |
| 2 |
114-3989 |
FAN CLUTCH ASM This part replaces 93-1430. Price: $498.92 |
| 3 |
98-1242 |
ADAPTER-FAN Price: $147.55 |
| 4 |
52-6290 |
SCREW-HSH Price: $1.09 |
| 5 |
322-2 |
SCREW-HH Price: $0.69 |
| 7 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 12 |
532404851 |
ROD.ANTI.SWAY.48/54"K4 Price: $22.99 |
| 13 |
587820301 |
KIT.MANDREL.GREASEABLE.TALL This part replaces 587256401. Price: $49.99 |
| 14 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 15 |
585323901 |
BEARING.MANDREL.TOP.EXTENDED Price: $12.99 |
| 16 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 18 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 19 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 20 |
98-3824 |
SWITCH-TEMP Price: $134.61 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 21 |
98-3825 |
SWITCH-TEMP Price: $151.07 |
| 22 |
108-6749 |
DISCONTINUED This part replaces 95-4395. Price: Call Us |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
539107609 |
TORSION SPRING This part replaces 532178102. Price: $4.99 |
| 26 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
33014-00 |
NUT-HEX Price: $0.25 |
| 27 |
532187257 |
DEFLECTOR.BLACK.54" This part replaces 532188938. Price: $64.99 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 29 |
98-3817 |
SOLENOID KIT Price: $522.93 |
| 30 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 31 |
98-3818 |
DISCONTINUED Price: Call Us |
| 32 |
110-3254 |
HOSE-FUEL This part replaces 75-4706. Price: $18.55 |
| 32 |
532173436 |
PULLEY MANDREL This part replaces 532153535. Price: $14.99 |
| 33 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 33 |
98-1293-03 |
BRACKET-LINE This part replaces 98-1293. Price: $27.85 |
| 34 |
240-9 |
GROMMET Price: $3.25 |
| 34 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 35 |
2412-83 |
CLAMP-CABLE Price: $9.85 |
| 35 |
532193003 |
BOLT.WASHER.ASM.7/16-2 This part replaces 584309301. Price: $6.99 |
| 36 |
43-5940 |
WASHER-LOCK, SPRING Price: $0.70 |
| 37 |
42-9250 |
BOLT Price: $1.63 |
| 38 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 39 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 40 |
109-0276 |
HOSE-FUEL This part replaces 63-7610. Price: $24.99 |
| 41 |
110-9662 |
HOSE-FUEL This part replaces 63-7628. Price: $31.52 |
| 41 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 Price: $3.99 |
| 43 |
108-3282 |
HOSE-FUEL This part replaces 37-9560. Price: $36.93 |
| 43 |
531169301 |
SERVICE KIT ARM.IDLER This part replaces 532196065. Price: $9.99 |
| 44 |
48-7890 |
NUT-HEX Price: $0.25 |
| 45 |
48-8020 |
WASHER-SPRING Price: $1.19 |
| 46 |
33113-016 |
SCREW-HH This part replaces 48-7620. Price: $0.34 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 47 |
3272-2 |
PIN-COTTER Price: $2.29 |
| 47 |
587686701 |
BELT.DECK.DRIVE.BELT.54 Price: $54.99 |
| 48 |
33113-025 |
SCREW-HH This part replaces 48-7640. Price: $1.97 |
| 49 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 50 |
33093-00 |
WASHER-FLAT Price: $0.70 |
| 50 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 52 |
532196106 |
PULLEY.IDLER.2006 This part replaces 532197379. Price: $34.99 |
| 61 |
585322605 |
PLATE.REIN.FRONT.BOLT54"X431 Price: $17.99 |
| 62 |
585322806 |
REINFORCEMENT PLATE 54 SIDE BO This part replaces 585322805. Price: $14.99 |
| 63 |
872110510 |
BOLT.CARRIAGE.5/16-18 Price: $4.99 |
| 97 |
532178515 |
WASHER Price: $5.99 |
| 98 |
547878302 |
SPRING BELT TENSIONER BLACK This part replaces 532196105. Price: $5.99 |
| 113 |
596435701 |
Bolts This part replaces 872110508. Price: $2.99 |
| 114 |
532187556 |
ROD TENSION RELIEF Price: $17.99 |
| 116 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 117 |
589527301 |
WHEEL.GAUGE.RALLY This part replaces 532174873. Price: $8.99 |
| 122 |
532187557 |
BUSHING.RELIEF.TENSION Price: $7.99 |
| 184 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 185 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 187 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 190 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 192 |
532198468 |
KEEPER.BELT.IDLER.54"T Price: $7.99 |
| 194 |
874490736 |
BOLT.HEX.WASHER.HEAD.7/16-24X Price: $9.99 |
| 196 |
596337801 |
Bolts This part replaces 539128101. Price: $4.99 |
| 241 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 242 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 245 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111116. Price: $2.99 |
| 532416405 |
COUPLING.QUICK |
CONNECT Price: $8.99 532416405 |
