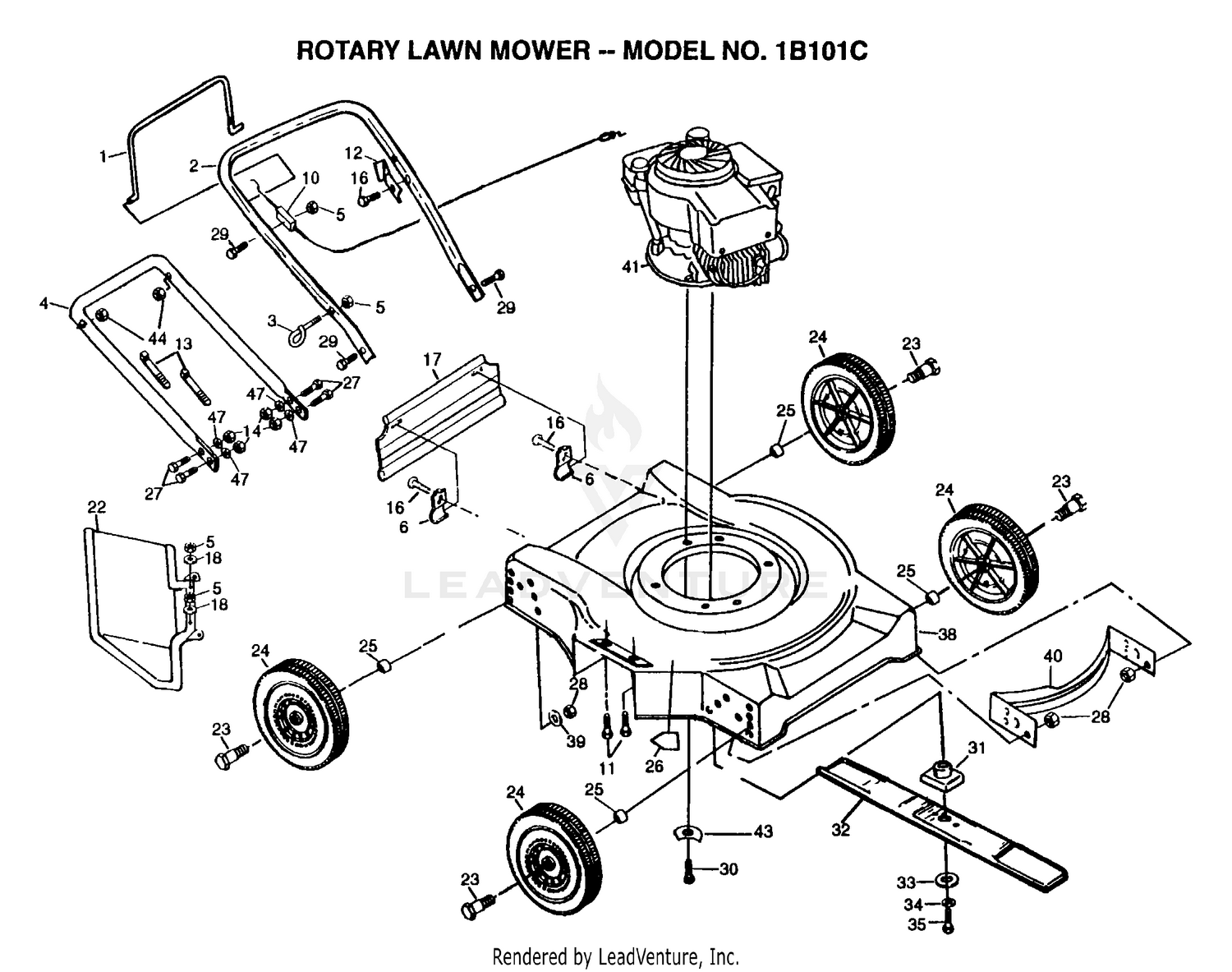

| Ref | Part Number | Description |
|---|
| 1 |
86902 |
CONTROL BAR PM Price: Call Us |
| 1 |
92-5671 |
STRIP-SEALING Price: $20.41 |
| 2 |
108-3283 |
HOSE-FUEL This part replaces 94-1348. Price: $4.60 |
| 2 |
132826X479 |
UPPER HANDLE Price: Call Us |
| 3 |
132001 |
ROPE GUIDE Price: Call Us |
| 3 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 4 |
851646X479 |
HANDLE LWR PM Price: Call Us |
| 4 |
92-9266 |
STANDPIPE Price: $26.91 |
| 5 |
63601 |
SUB= 73800400 Price: Call Us |
| 5 |
92-5670 |
STRIP-SEALING Price: $7.03 |
| 6 |
46-6560 |
BUSHING Price: $2.94 |
| 7 |
32122-24 |
SCREW-PTH Price: $0.27 |
| 8 |
3253-15 |
WASHER-LOCK Price: $1.49 |
| 9 |
92-9267 |
SENDER-FUEL Price: $118.15 |
| 10 |
62-7650 |
GASKET Price: $4.28 |
| 10 |
851670 |
CABLE.ZONE.CONTRO Price: Call Us |
| 11 |
74760412 |
BOLT LT Price: Call Us |
| 11 |
93-3102 |
CAP-FUEL Price: $24.02 |
| 12 |
92-5674 |
NECK-FILL, FUEL Price: $188.78 |
| 13 |
664-26 |
SUB= 7192J Price: Call Us |
| 13 |
92-5675 |
GROMMET Price: $21.90 |
| 14 |
132010 |
LOCKNUT Price: Call Us |
| 14 |
2412-42 |
CLAMP-HOSE Price: $2.65 |
| 15 |
92-9272 |
HOSE-FILL, FUEL Price: $52.93 |
| 16 |
750097 |
TAPPING SCREW Price: Call Us |
| 16 |
93-1402 |
TANK-FUEL Price: $602.12 |
| 17 |
104-5266-03 |
BODY-LOWER Price: $2,297.30 |
| 17 |
140541 |
SKIRT.REAR.20RD. Price: Call Us |
| 18 |
32144-1 |
SCREW-TAPTITE Price: $3.19 |
| 18 |
53847 |
SUB= 19091214 Price: Call Us |
| 19 |
240-11 |
BUSHING-FLANGE Price: $5.32 |
| 20 |
63-8410 |
WASHER Price: $1.76 |
| 21 |
323-5 |
SCREW-HH Price: $0.41 |
| 22 |
52-9590 |
LATCH-SCREEN Price: $6.57 |
| 23 |
3296-12 |
NUT-LOCK, NI Price: $1.29 |
| 23 |
67609 |
AXLE BOLT Price: Call Us |
| 24 |
130491 |
WHEEL ASSY Price: Call Us |
| 24 |
92-5654-03 |
PANEL-OUT, CLEAN Price: $113.82 |
| 25 |
136624 |
SUB= 532136624 Price: Call Us |
| 26 |
107339X |
DECAL HYT Price: Call Us |
| 27 |
137009 |
SUB= 532137009 Price: Call Us |
| 28 |
751592 |
LOCKNUT PM Price: Call Us |
| 29 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 29 |
74350424 |
BOLT 1/4-20-1 1/2 Price: Call Us |
| 30 |
321-2 |
SCREW-HH Price: $2.79 |
| 30 |
850998 |
SCREW Price: Call Us |
| 31 |
3296-56 |
NUT-LOCK, NI Price: $2.09 |
| 31 |
850977 |
BLADE ADAPTOR Price: Call Us |
| 32 |
850972 |
BLADE.STAND.20INC Price: Call Us |
| 32 |
92-5653-03 |
RING-CLAMP Price: $16.40 |
| 33 |
92-5269 |
BELLOWS Price: $193.76 |
| 34 |
850263 |
LOCKWASHER Price: Call Us |
| 34 |
92-1242 |
DECAL Price: $20.82 |
| 35 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 35 |
851084 |
SCREW Price: Call Us |
| 36 |
240-9 |
GROMMET Price: $3.25 |
| 37 |
32148-9 |
NUT-CLINCH Price: $2.65 |
| 38 |
3256-51 |
WASHER-FLAT Price: $0.19 |
| 38 |
701106 |
SUB= 48285 Price: Call Us |
| 39 |
46-6550 |
FITTING-ELBOW, 90 DEG Price: $37.39 |
| 39 |
61537 |
SUB= 19132012 Price: Call Us |
| 40 |
110-4112 |
HOSE-FUEL This part replaces 92-9283. Price: $12.60 |
| 40 |
700839X479 |
FRONT BAFFLE Price: Call Us |
| 41 |
92-6064 |
CLAMP-R Price: $2.04 |
| 42 |
322-3 |
SCREW-HH Price: $0.79 |
| 43 |
851201X004 |
WASHER Price: Call Us |
| 43 |
92-6069-03 |
SHIELD-EXHAUST Price: $27.08 |
| 44 |
132004 |
SUB= 73800400 Price: Call Us |
| 44 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 45 |
32128-33 |
NUT-HF Price: $0.25 |
| 47 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 47 |
55611 |
STEEL WASHER Price: Call Us |
| 51 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 52 |
94-8270 |
BOLT-SHOULDER Price: $17.58 |
| 53 |
63-4220 |
SPRING-COMPRESSION Price: $16.11 |
| 54 |
3256-78 |
WASHER-FLAT Price: $1.21 |
| 55 |
94-8258 |
STRIP-SEAL Price: $3.70 |
| 57 |
110-5688 |
HOSE-FUEL This part replaces 100-6588. Price: $34.27 |
| 58 |
60-4350 |
GROMMET Price: $4.46 |
| 60 |
98-7612 |
FILTER-FUEL Price: $10.48 |
| 140751 |
MANUAL |
OP GEN RTA Price: Call Us 140751 |
| 146941 |
MANUAL.P.1B101C |
Price: Call Us 146941 |
