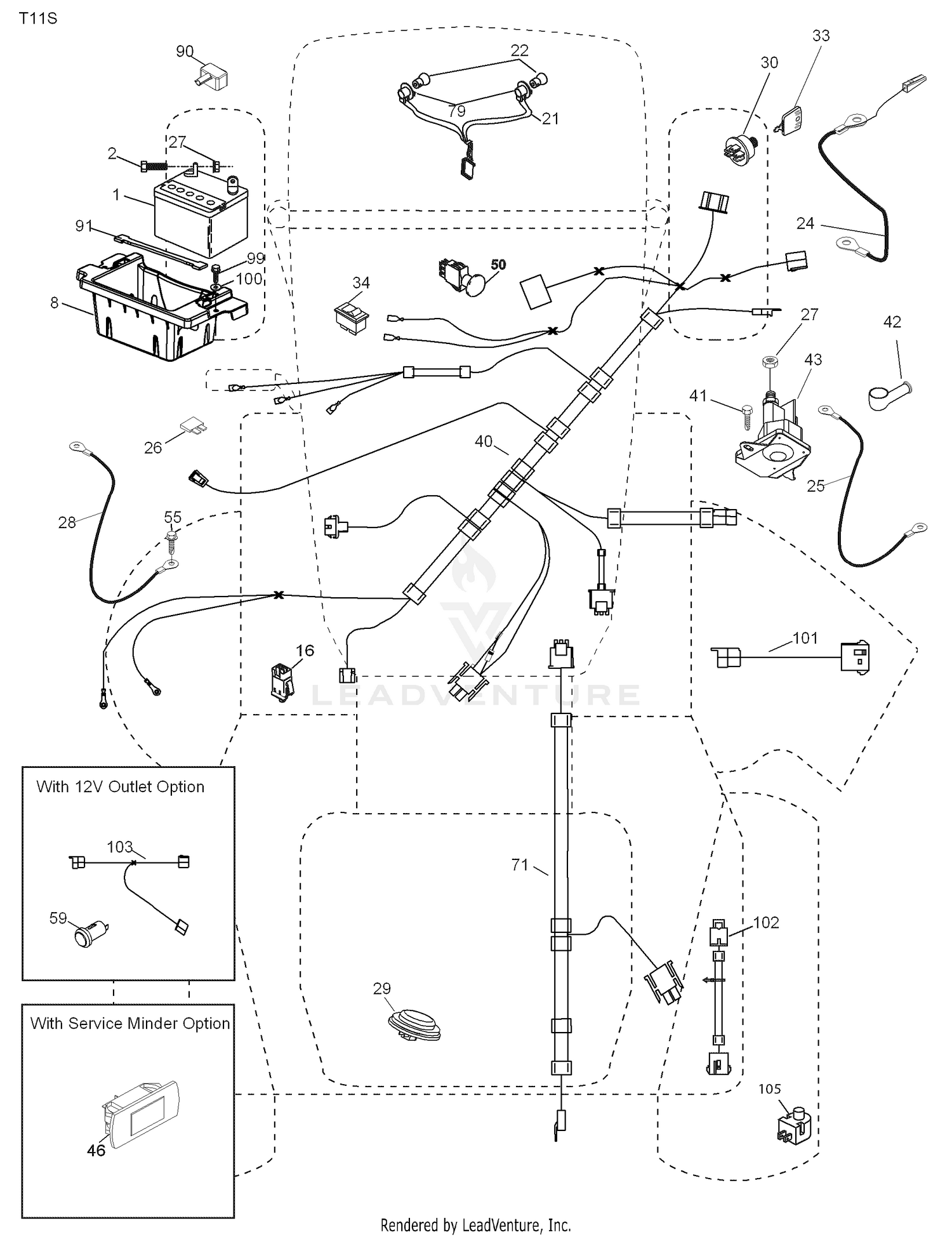

| Ref | Part Number | Description |
|---|
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532144927. Price: $149.99 |
| 1 |
92-7531-03 |
TUBE-PUMP CONTROL This part replaces 92-7531. Price: $139.90 |
| 2 |
3220-3 |
NUT-HJ Price: $0.28 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 4 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 5 |
323-9 |
SCREW-HH Price: $1.29 |
| 6 |
75-3270-03 |
HUB-PIVOT, TRACTION This part replaces 75-3270. Price: $144.73 |
| 7 |
75-6580 |
CABLE-PEDAL Price: $34.72 |
| 8 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 8 |
532186491 |
BOX.BATTERY.MOUNT.FRONT.LT Price: $14.99 |
| 9 |
3272-2 |
PIN-COTTER Price: $2.29 |
| 10 |
323-7 |
SCREW-HH Price: $0.65 |
| 11 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 12 |
92-7608-03 |
BRACKET-SPRING This part replaces 92-7608. Price: $16.86 |
| 13 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 14 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 15 |
49-6440-03 |
PEDAL-FORWARD This part replaces 49-6440. Price: $84.90 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 16 |
75-2970 |
PEDAL-TRACTION Price: $135.64 |
| 17 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 18 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 19 |
75-6550 |
DISC-FRICTION Price: $7.96 |
| 20 |
112-5084 |
BRACKET-LEVER This part replaces 75-6510. Price: $61.39 |
| 21 |
233-42 |
KNOB Price: $12.88 |
| 21 |
532183759 |
HARNESS ASSY LIGHT Price: $24.99 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 22 |
75-6490 |
LEVER ASM Price: $78.45 |
| 23 |
75-6710 |
DECAL - FAST/SLOW Price: $5.87 |
| 23 |
84-3500 |
DECAL - SPEED CONTROL Price: $13.52 |
| 23 |
93-6699 |
DECAL-FAST / SLOW Price: $18.07 |
| 24 |
3290-461 |
WASHER-SPRING Price: $3.89 |
| 24 |
585555601 |
CABLE.FRBATT.W/WIRE.8GA.8 This part replaces 532400253. Price: $7.99 |
| 25 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 25 |
585555501 |
CABLE.STARTER.8GA.17.5 This part replaces 532412895. Price: $7.99 |
| 26 |
32128-20 |
NUT-HF Price: $0.99 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
322-3 |
SCREW-HH Price: $0.79 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 28 |
532145491 |
CABLE GROUND 6 GA 21" 90T BLK Price: $6.99 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 29 |
93-8742 |
FOOTPAD-BRAKE Price: $27.95 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 30 |
92-7530 |
CABLE-BRAKE, LH Price: $132.98 |
| 31 |
63-7880 |
PIN-LATCH, BRAKE Price: $6.04 |
| 32 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 33 |
3256-69 |
WASHER-FLAT Price: $0.62 |
| 33 |
532411935 |
KEY.CHAIN.BLISTER.PACK.GEN.INT Price: $8.99 |
| 34 |
32121-16 |
PIN-SPRING Price: $0.41 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 35 |
75-1440-03 |
PEDAL-BRAKE, LH This part replaces 75-1440. Price: $207.74 |
| 36 |
32121-50 |
PIN-SPRING Price: $1.21 |
| 37 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 38 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 39 |
256-42 |
BUSHING Price: $7.03 |
| 40 |
532401104 |
HARNESS.IGN.DASH.HUQ/P Price: $59.99 |
| 40 |
75-1430 |
RH BRAKE PEDAL ASM Price: $255.51 |
| 41 |
32121-11 |
PIN-ROLL Price: $0.47 |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 42 |
92-7610 |
RETAINER-SPRING Price: $26.52 |
| 43 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 43 |
60-5700 |
SPRING Price: $27.02 |
| 44 |
3256-5 |
WASHER-FLAT Price: $0.27 |
| 45 |
92-7609 |
SHAFT-SPRING Price: $62.79 |
| 46 |
594919101 |
GUAGE.SRVCMNDR.HRMTR. This part replaces 532401763. Price: $19.99 |
| 46 |
75-1470 |
PIN-PIVOT, BRAKE Price: $45.68 |
| 47 |
5-0652 |
SPACER Price: $5.35 |
| 48 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532174651. Price: $24.99 |
| 55 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 59 |
596941001 |
Outlets This part replaces 532400303. Price: $11.99 |
| 71 |
532194276 |
HARNESS-CHASSIS SUB Price: $27.99 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $8.99 |
| 90 |
532400724 |
COVER.TERMINAL.BATTERY Price: $3.99 |
| 91 |
532190270 |
STRAP.BATTERY.MOUNT.FRONT(2 2) Price: $7.99 |
| 99 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 100 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 101 |
532198317 |
PIGTAIL.MATNLK.NEW.HAR Price: $6.99 |
| 102 |
532404454 |
HARNESS PIGTAIL PCH TEX ROS Price: $14.99 |
| 103 |
532407962 |
HARNESS PIGTAIL 12V OUTLET Price: $8.99 |
