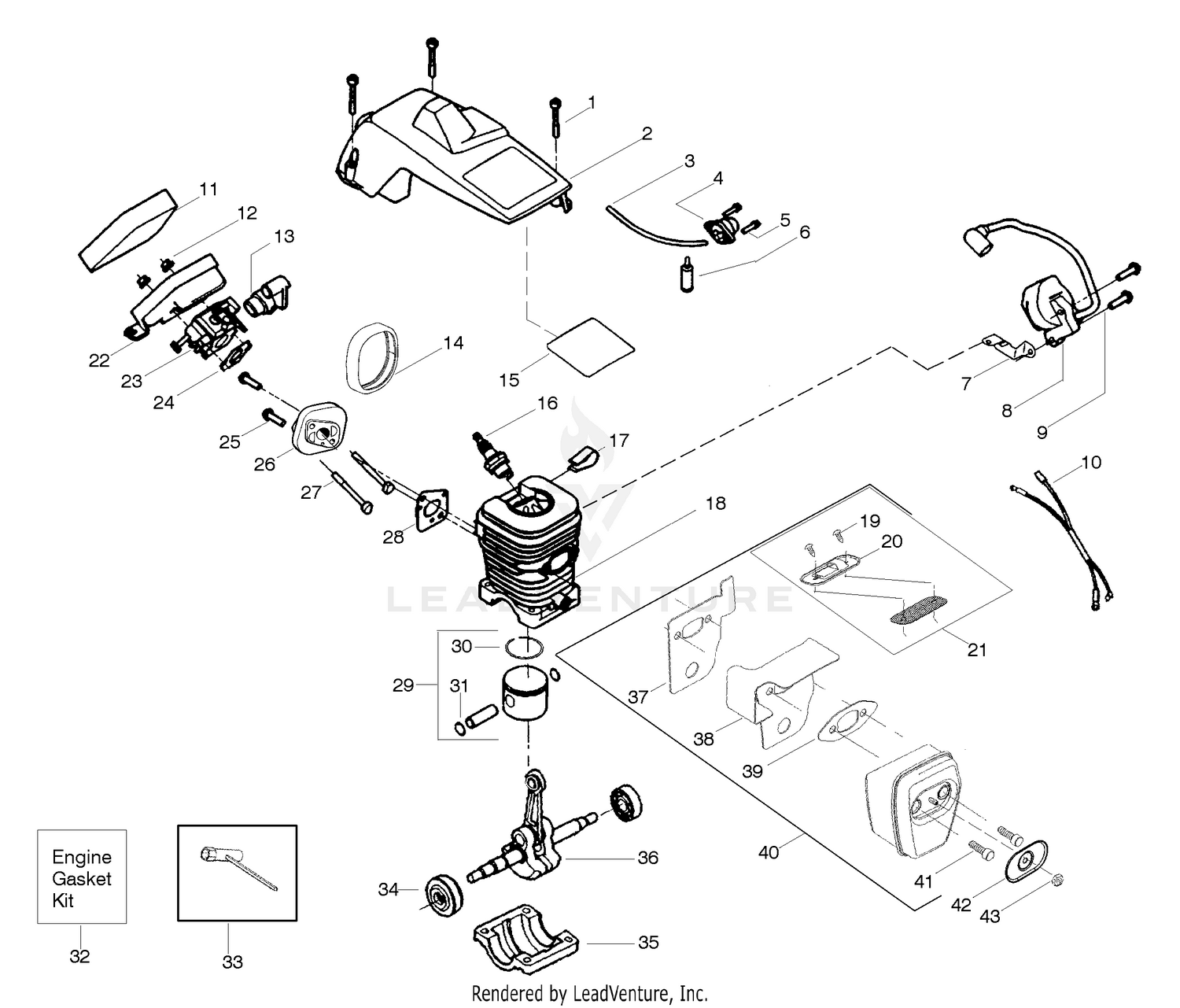

| Ref | Part Number | Description |
|---|
| 1 |
530016153 |
Screw Price: $1.99 |
| 2 |
112-1711 |
SHAFT-REAR ROLLER, SHORT Price: $88.40 |
| 3 |
114-3717 |
SEAL-OIL Price: $2.77 |
| 3 |
530069247 |
Kit-Fuel Line (Small) Price: $3.99 |
| 4 |
112-5290 |
BEARING-STEEL, STAINLESS Price: $12.64 |
| 4 |
530071835 |
Kit-Purge Bulb This part replaces 530047213. Price: $5.99 |
| 5 |
112-7494 |
SEAL Price: $6.37 |
| 5 |
530015780 |
Screw Price: $1.99 |
| 6 |
114-5411 |
NUT-LOCK, BEARING This part replaces 114-3745. Price: $24.46 |
| 6 |
530095646 |
Assy-Fuel Pick- up Price: $2.99 |
| 7 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 7 |
530047442 |
Strap-Ground Price: $1.99 |
| 8 |
530039198 |
Ignition Module Price: $29.99 |
| 9 |
530015814 |
Screw Price: $1.99 |
| 10 |
530052296 |
Assy-Wire Harness Price: $4.99 |
| 11 |
530037793 |
Foam-Air Filter Price: $1.99 |
| 12 |
530016101 |
Nut Price: $1.99 |
| 13 |
530035526 |
Grommet-Carb Adjust Price: Call Us |
| 14 |
530054144 |
Seal-Carb Adapter Price: $2.99 |
| 15 |
530055698 |
Reflector-Heat Price: $1.99 |
| 16 |
503235111 |
BPMR7A NGK SPARK PLUG This part replaces 952030150. Price: $3.99 |
| 17 |
530016136 |
Clip-High Tension Lead Price: $1.99 |
| 18 |
530012550 |
Cylinder Price: $17.99 |
| 19 |
530016351 |
Screw-Outlet cover Price: $1.99 |
| 20 |
530055759 |
Cover-Outlet Price: $2.99 |
| 22 |
530057480 |
Housing- Air Filter This part replaces 530037804. Price: $4.99 |
| 23 |
530071622 |
Kit-Carburetor (WT- 637) Price: $34.99 |
| 24 |
530069608 |
Gasket-Carb. (kit) Price: $5.99 |
| 25 |
530016386 |
Screw Price: $5.99 |
| 26 |
530049700 |
Carb. Adapter Price: $3.99 |
| 27 |
530016187 |
Screw Price: $1.99 |
| 28 |
530069608 |
Gasket-Adaptor (kit) Price: $5.99 |
| 30 |
545160401 |
Ring-Piston This part replaces 530038729. Price: $2.99 |
| 31 |
530015697 |
Retainer-Piston Pin Price: $1.99 |
| 33 |
530031163 |
Bar Wrench Price: $4.99 |
| 34 |
530056363 |
Assy-Seal & Bearing Price: $11.99 |
| 35 |
530037935 |
Cap-Crankcase Price: $8.99 |
| 36 |
545113101 |
CRANKSHAFT ASSY This part replaces 530047062. Price: $54.99 |
| 37 |
530054885 |
Backplate Price: $5.99 |
| 38 |
530054880 |
Guide-Outlet Price: $5.99 |
| 39 |
530069608 |
Gasket-Muffler (kit) Price: $5.99 |
| 41 |
530016338 |
Bolt-Muffler Price: $1.99 |
| 42 |
530055586 |
Cover-Bolt Price: $0.99 |
