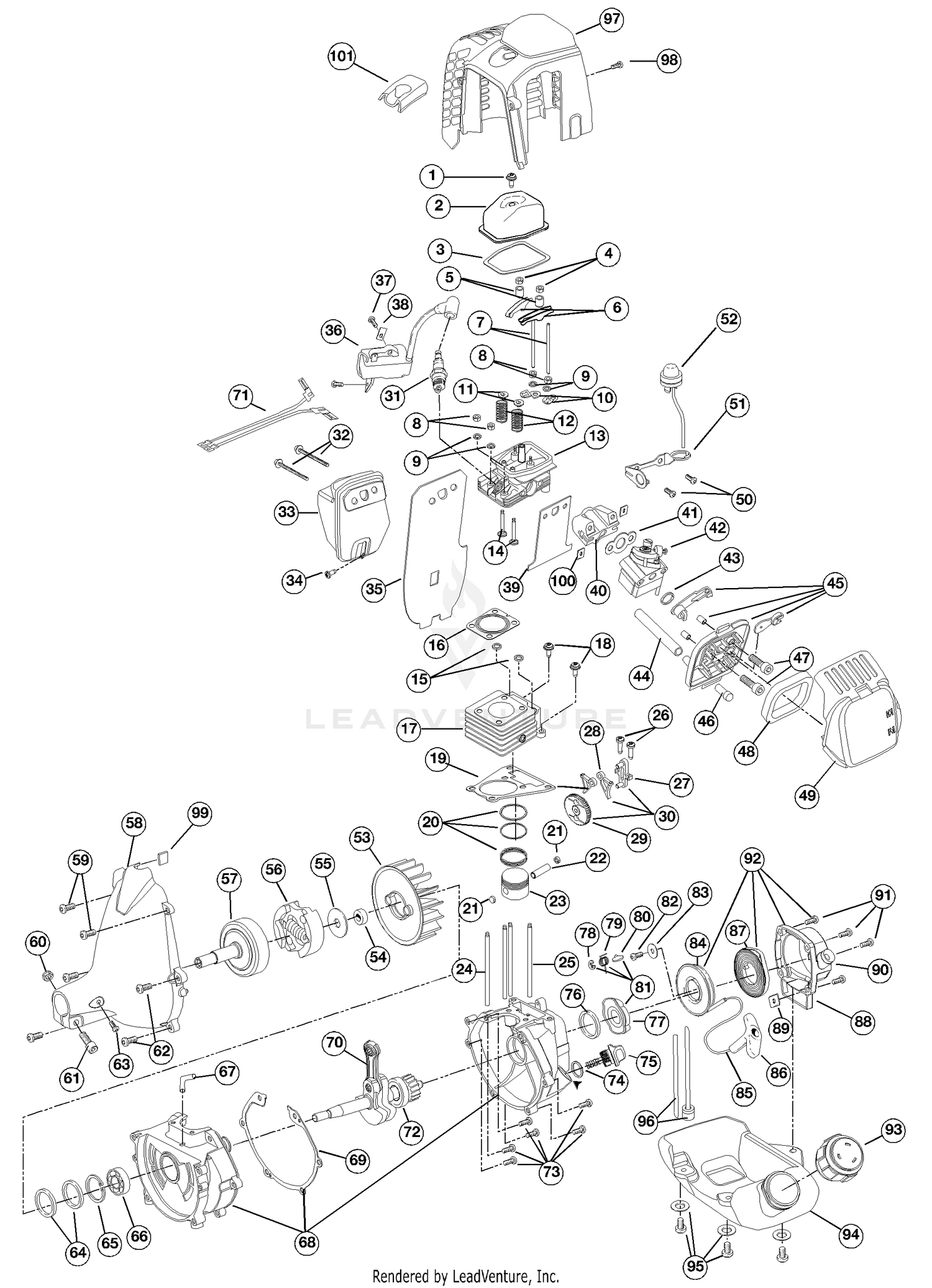

| Ref | Part Number | Description |
|---|
| 1 |
791-181025 |
Valve Cover Screw Price: $2.44 |
| 2 |
791-182098 |
COVER, VALVE W/O BRE Not Available Price: |
| 3 |
791-182099 |
Valve Cover Gasket Price: $8.64 |
| 4 |
791-182340 |
NUT, ROCKER ADJUST Not Available Price: |
| 5 |
791-182101 |
PIVOT, ROCKER ARM Not Available Price: |
| 6 |
791-182100 |
ARM, ROCKER Not Available Price: |
| 7 |
791-181033 |
ROD, PUSH Not Available Price: |
| 8 |
791-181034 |
NUT-DEE HANDLE Not Available Price: |
| 9 |
791-181035 |
WASH Not Available Price: |
| 10 |
791-182102 |
GUIDE, PUSH ROD Not Available Price: |
| 11 |
791-182103 |
RET, VALVE SPRING Not Available Price: |
| 12 |
791-181038 |
SPRING, VALVE Not Available Price: |
| 13 |
791-182306 |
ASSEMBLY, CYL HEAD W/RO Not Available Price: |
| 14 |
791-181040 |
VALVE Not Available Price: |
| 15 |
791-181000 |
O-RING Not Available Price: |
| 16 |
791-181001 |
GASKET, CYLINDER HEAD Not Available Price: |
| 17 |
791-182132 |
CYLINDER, AC-10 MA Not Available Price: |
| 18 |
9052-1 |
SCREW, M5 X18 This part replaces 791-181003. Price: $3.78 |
| 19 |
791-181004 |
GASKET, CYLINDER Not Available Price: |
| 20 |
753-04801 |
RING SET:PISTON Not Available This part replaces 791-182295. Price: |
| 21 |
791-181008 |
BUTTON, WRIST PIN Not Available Price: |
| 22 |
791-181006 |
PIN, WRIST Not Available Price: |
| 23 |
753-1243 |
PISTON ASSEMBLY:PSTN Not Available Price: |
| 24 |
791-181010 |
STUD, CYLINDER M5X Not Available Price: |
| 25 |
791-181011 |
STUD, CYLINDER M5X Not Available Price: |
| 26 |
791-181012 |
SCR, CAM BRACKET Not Available Price: |
| 27 |
791-181013 |
BRACKET, CAM Not Available Price: |
| 28 |
791-182123 |
FOLLOWER, Not Available Price: |
| 29 |
791-182124 |
GEAR, CAM Not Available Price: |
| 30 |
791-182125 |
ASSEMBLY, MCR C Not Available Price: |
| 31 |
794-00082 |
Spark Plug This part replaces 791-180852B. Price: $6.35 |
| 32 |
791-182105 |
SCREW, M5 x 0.8-35 S Not Available Price: |
| 33 |
791-182106 |
MUFFLER, AC-10 Not Available Price: |
| 34 |
791-182153 |
SCREEN, SPARK ARRE Not Available Price: |
| 35 |
791-182107 |
GASKET, AC Not Available Price: |
| 36 |
753-04226 |
MODULE Not Available Price: |
| 37 |
791-181066 |
SCREW, MODULE Not Available Price: |
| 38 |
791-611063 |
TAB, GROUND Not Available Price: |
| 39 |
791-182131 |
GASKET, INSULATOR Not Available Price: |
| 40 |
791-182109 |
INSULATOR, AC-10 C Not Available Price: |
| 41 |
791-182270 |
GASKET, CA Not Available Price: |
| 42 |
791-182110 |
CARBURETOR, AC-10 Not Available Price: |
| 43 |
791-181751 |
O-Ring, Carburetor Price: $3.92 |
| 44 |
791-182379 |
Breather Hose Price: $4.10 |
| 45 |
791-182111 |
AIR CLEANER ASSEMBLY Not Available Price: |
| 46 |
791-182097 |
Breather assembly Price: $10.13 |
| 47 |
791-182133 |
SCREW, M5 x .8-55 PH Not Available Price: |
| 48 |
791-182116 |
FILTER, AC Not Available Price: |
| 49 |
791-182115 |
AIR CLEANER ASSEMBLY Not Available Price: |
| 50 |
791-182105 |
SCREW, M5 x 0.8-35 S Not Available Price: |
| 51 |
791-182589 |
BRACKET, THROTTLE Not Available Price: |
| 52 |
791-181538 |
PRIMER & FUEL LINE ASSEMBLY Not Available Price: |
| 53 |
791-182113 |
FLYWL:AC-10:PHELON Not Available Price: |
| 54 |
791-181731 |
SPACER Not Available Price: |
| 55 |
791-181074 |
WASHER-CLUTCH Not Available Price: |
| 56 |
791-181730 |
Clutch Price: $40.50 |
| 57 |
791-180232 |
ASSEMBLY, CLUTCH DRUM (N28) Not Available Price: |
| 58 |
791-182829 |
HOUSING, AC-10 CLUTCH Not Available Price: |
| 59 |
791-181844 |
SCREW, 10-9X.750 PH Not Available This part replaces 791-181764. Price: |
| 60 |
791-181761 |
HEX NUT Not Available Price: |
| 61 |
791-181760 |
BOLT-PHIL HD W/WAS Not Available Price: |
| 62 |
9052-1 |
SCREW, M5 X18 This part replaces 791-181003. Price: $3.78 |
| 63 |
791-182188 |
TAP SCREWTITE Not Available Price: |
| 64 |
791-182127 |
SEAL, 12-28-7 DOUB Not Available Price: |
| 65 |
791-182128 |
RING, RETAINER 30 Not Available Price: |
| 66 |
791-182134 |
BEARING, SINGLE SE Not Available Price: |
| 67 |
791-182375 |
FITTING, BREATHER Not Available Price: |
| 68 |
791-182593 |
CRANKCASE, Not Available Price: |
| 69 |
791-182136 |
GASKET, CRANKCASE Not Available Price: |
| 70 |
791-182139 |
ASSEMBLY, AC-10 CRANKSH Not Available Price: |
| 71 |
791-182126 |
ASSEMBLY, LEAD Not Available Price: |
| 72 |
791-182138 |
BEARING, J Not Available Price: |
| 73 |
791-182147 |
SCREW, M5 Not Available Price: |
| 74 |
791-181022B |
PLUG, OIL FILL PANTONE YELLOW Not Available This part replaces 791-181021. Price: |
| 75 |
791-182378 |
Oil Cap Dipstick (includes 74) Price: $9.37 |
| 76 |
791-182378 |
Oil Seal Price: $9.37 |
| 77 |
791-182187 |
PULLEY, AC-10 ENG Not Available Price: |
| 78 |
791-181747 |
RETAINING RING Not Available Price: |
| 79 |
791-181746 |
Spring Price: $4.20 |
| 80 |
791-181745 |
RATCHET Not Available Price: |
| 81 |
791-182118 |
RATCHET ASSEMBLY-PULLEY Not Available Price: |
| 82 |
791-181740 |
SCREW Not Available Price: |
| 83 |
791-181741 |
WASHER Not Available Price: |
| 84 |
791-181738 |
PULLEY-RECOIL Not Available Price: |
| 85 |
791-181742 |
ROPE-RECOIL Not Available Price: |
| 86 |
631-04164B |
Pull Handle This part replaces 791-181079. Price: $3.38 |
| 87 |
791-181739 |
Recoil Spring Price: $16.59 |
| 88 |
791-182120 |
CASE, RECOIL HYDRA Not Available Price: |
| 89 |
791-182121 |
NUT, M5 x 0.8 Not Available Price: |
| 90 |
791-182122 |
GUIDE, KZ STARTER Not Available Price: |
| 91 |
791-182143 |
SCREW, M4 x 0.7-14 S Not Available Price: |
| 92 |
791-182117 |
RECOIL STA Not Available Price: |
| 93 |
753-04033 |
FUEL CAP ASSEMBLY Not Available Price: |
| 94 |
791-182130 |
TANK, MACH Not Available Price: |
| 95 |
791-182830 |
SCREW WITH WASHER Not Available Price: |
| 96 |
791-182129 |
FUEL LINE ASSEMBLY Not Available Price: |
| 97 |
791-182288 |
COVER, AC-10 ENGINE Not Available Price: |
| 98 |
791-182146 |
SCREW, SEMS M4 x .70 Not Available Price: |
| 99 |
791-182157 |
GROMMET, WIRE (KZ Not Available Price: |
| 100 |
791-182159 |
NUT, M5 x 0.8 . 3. Not Available Price: |
| 101 |
791-182293 |
SPARK PLUGPLUG H Not Available Price: |
