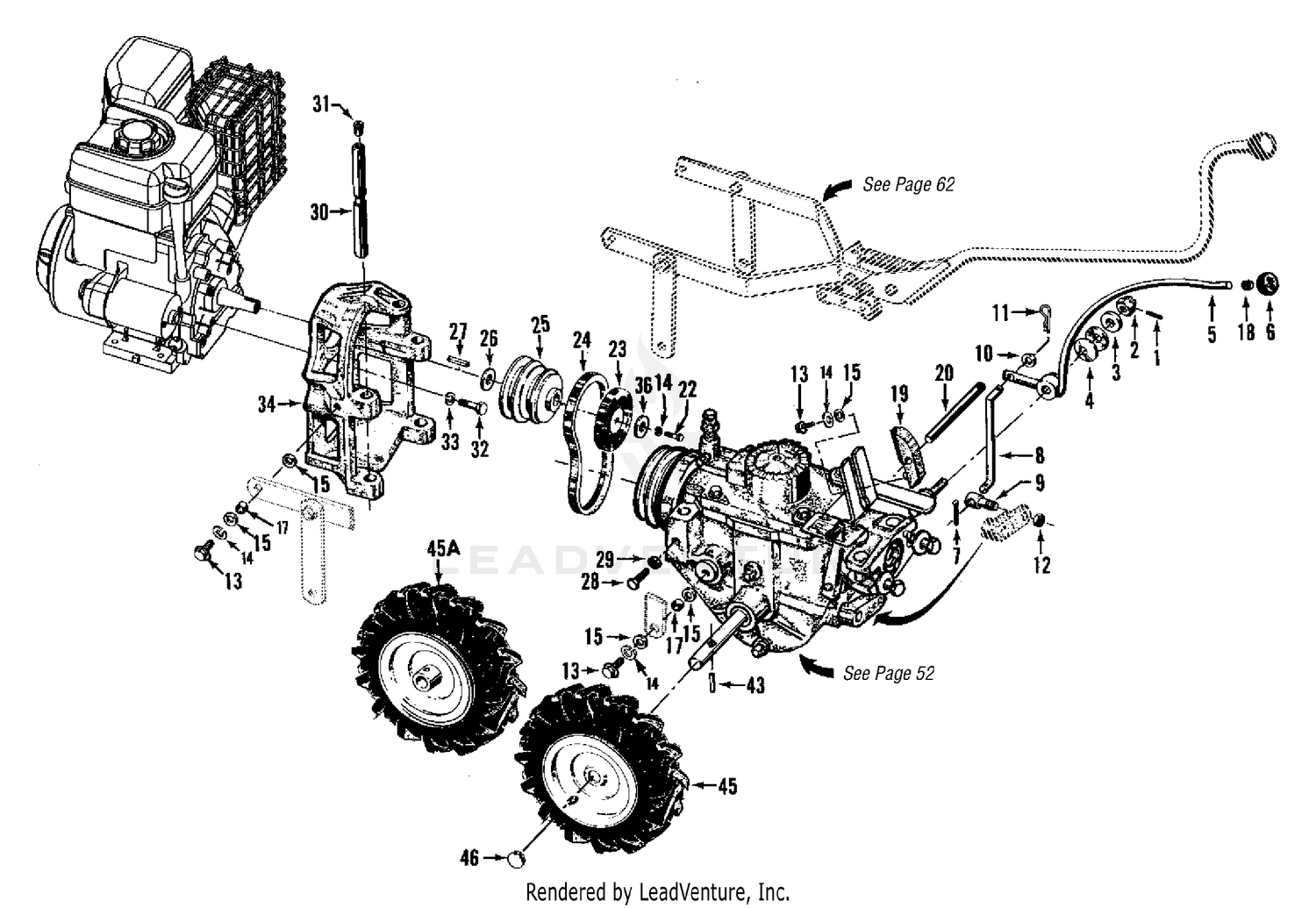

| Ref | Part Number | Description |
|---|
| 1 |
GW-9362 |
Pin-spring, 1/8" Price: $3.82 |
| 2 |
GW-9838 |
HEX NUT 1/2-20 Not Available Price: |
| 3 |
GW-9934 |
Washer-shoulder, 1/2" Price: $13.73 |
| 4 |
GW-9932 |
Washer-disc spring Price: $21.54 |
| 5 |
GW-2628 |
LEVER - wheel speed shift This part replaces GW-2178. Price: $124.90 |
| 6 |
1902240 |
Knob-wheel speed shift lever Price: $20.45 |
| 7 |
GW-9317 |
Pin-cotter, 3/32" x 1" Price: $3.22 |
| 9 |
GW-1033 |
Swivel-connecting rod Price: $13.56 |
| 10 |
736-0275 |
FLAT WASHER This part replaces 7360275. Price: $5.99 |
| 11 |
714-04048 |
PIN - hair cotter This part replaces GW-9338. Price: $7.04 |
| 12 |
912-0158 |
Hex Lock Nut, 5/16-18 This part replaces 712-0158. Price: $2.83 |
| 13 |
710-0514 |
Bolt-flanged hex hd., 3/8-16 x 1" Price: $3.78 |
| 14 |
736-0169 |
Lockwasher-spring lock, 3/8" Price: $3.33 |
| 15 |
736-3050 |
Washer-flat, 3/8", S.A.E. Price: $3.90 |
| 17 |
GW-1113-1099 |
BUSHING - spacer, 19/64" (.300") long, yoke link to retaining plug This part replaces GW-1113-1. Price: $4.53 |
| 18 |
GW-9120 |
Ring-retaining (tolerance ring) Price: $5.94 |
| 19 |
GW-2102A |
BELT ADJUSTMENT BLOCK This part replaces GW-2102. Price: $43.50 |
| 20 |
GW-2100 |
Rod- belt adjust., 7" with measuring gauge Price: $11.28 |
| 21 |
777I20942 |
LABEL-FREE HAND HE Not Available Price: |
| 22 |
710-0539 |
Screw, 3/8-24 x 1.75 This part replaces 1100012. Price: $3.95 |
| 23 |
756-04171 |
DISC ONLY-reverse, rubber rimmed This part replaces GW-2111. Price: $58.85 |
| 25 |
619-04124 |
PULLEY- engine P.T.O. (Power Take Off) This part replaces GW-1483. Price: $135.20 |
| 26 |
736-04187 |
SHIM - engine pulley, 1/16" thick This part replaces GW-1138-1. Price: $4.36 |
| 26 |
736-04192 |
SHIM - same as above, 1/32" thick This part replaces GW-1138-2. Price: $5.94 |
| 27 |
GW-9303 |
Key-engine pulley, 3/16"sq. x 2-1/2" Price: $3.22 |
| 28 |
710-0376 |
Bolt-hex hd., 5/16-18 x 1", Grade 5 Price: $3.66 |
| 29 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
| 30 |
GW-1034A |
BAR- engine mounting This part replaces GW-1034. Price: $41.06 |
| 31 |
GW-9147 |
Plug-thread protector, red plastic Price: $7.05 |
| 32 |
710-0672 |
BOLT- hex. hd., 5/16"-24 x 1-1/8", engine mounting This part replaces GW-9572. Price: $3.85 |
| 33 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 34 |
719-04222-0637 |
Motor Mount This part replaces GW-2553. Price: $274.62 |
| 36 |
736-3052 |
Washer, flat, .406 x 1.0 x .105 Price: $4.02 |
| 43 |
1915072 |
SPRING PIN .312X1. Not Available Price: |
| 46 |
1902020 |
HUB CAP Not Available Price: |
| 777S30647 |
LABEL-HOT |
SURFACE Not Available Price: 777S30647 |
