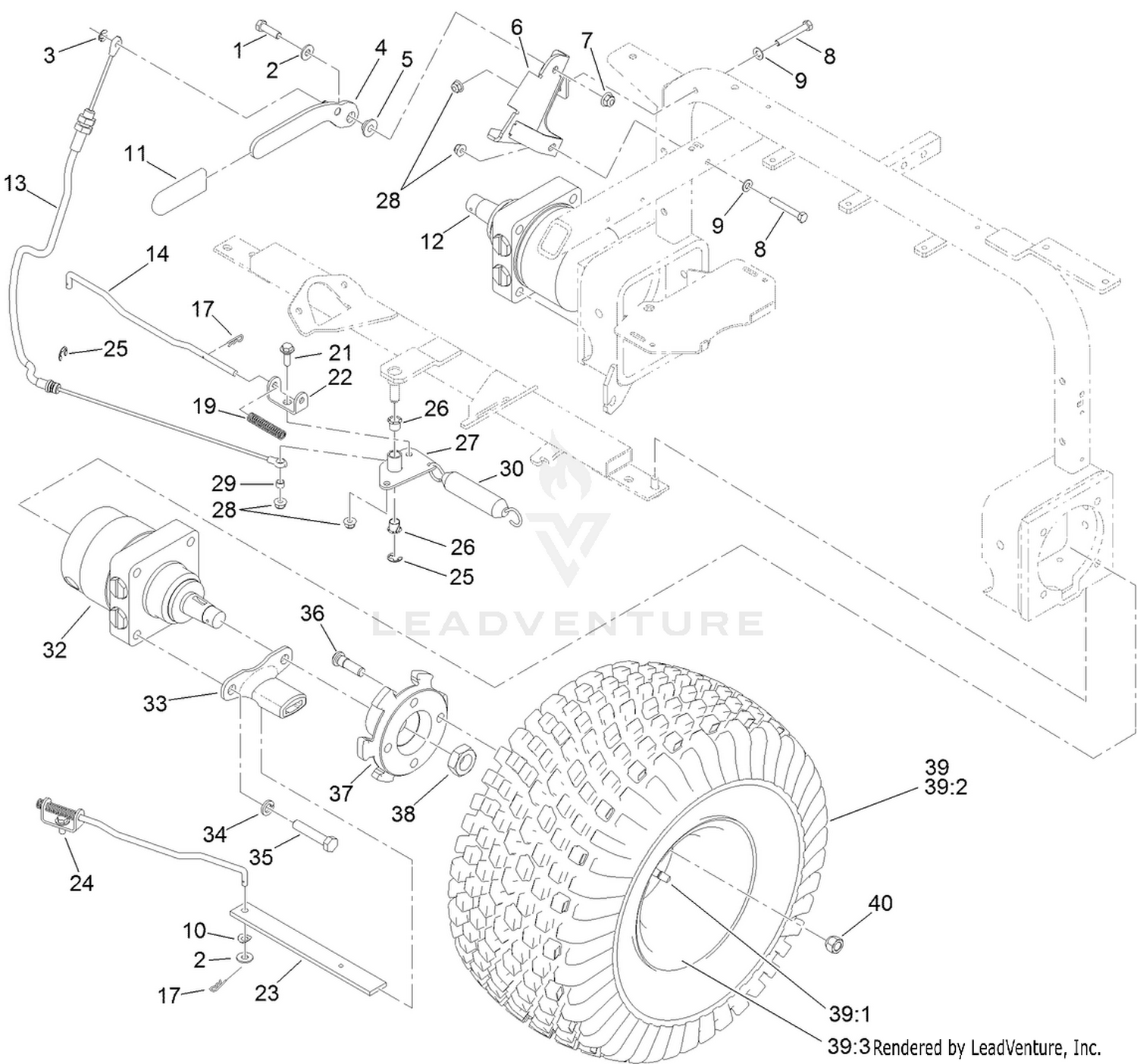

| Ref | Part Number | Description |
|---|
| 1 |
323-7 |
SCREW-HH Price: $0.65 |
| 2 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 3 |
32151-47 |
RING-RETAINING Price: $2.49 |
| 4 |
108-7991-03 |
LEVER-BRAKE Price: $49.49 |
| 5 |
108-7994 |
BUSHING-PIVOT, LEVER Price: $7.73 |
| 6 |
121-2520 |
BRAKE LEVER BRACKET ASM Price: $35.51 |
| 7 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 8 |
120-9738 |
SCREW-HH This part replaces 322-11. Price: $0.84 |
| 9 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 10 |
121-4605 |
WASHER-SPRING Price: $3.63 |
| 11 |
21-1880 |
GRIP-HANDLE Price: $11.67 |
| 12 |
108-2949 |
HYD MOTOR ASM (CW) Price: $1,640.43 |
| 13 |
108-7913 |
CABLE-BRAKE, PARK Price: $80.41 |
| 14 |
108-7987 |
LINK-LATCH, PARKING Price: $50.21 |
| 17 |
1-806003 |
PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 19 |
107-3376 |
SPRING-COMPRESSION Price: $4.45 |
| 21 |
19-1471 |
SCREW-SHOULDER Price: $3.69 |
| 22 |
114-0631 |
CLEVIS-LATCH, PARKING Price: $10.65 |
| 23 |
108-7986-0P |
BAR-LATCH, PARKING This part replaces 108-7986-03. Price: $13.34 |
| 24 |
19-1470 |
SCREW-SHOULDER Price: $3.49 |
| 25 |
32120-47 |
RING-RETAINING, EXTERNAL Price: $0.99 |
| 26 |
256-257 |
BUSHING-NYLINER Price: $3.19 |
| 27 |
108-7979-0P |
BELLCRANK ASM This part replaces 108-7979-03. Price: $54.68 |
| 28 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 29 |
108-7983 |
BUSHING-CABLE Price: $5.97 |
| 30 |
66-4270-03 |
SPRING-EXTENSION This part replaces 66-4270. Price: $23.59 |
| 32 |
108-2947 |
HYD MOTOR ASM (CCW) Price: $1,661.73 |
| 33 |
125-1967 |
BRACKET-BRAKE, PARK Price: $20.41 |
| 34 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 35 |
325-10 |
SCREW-HH Price: $1.82 |
| 36 |
85-6540 |
STUD-DRIVE Price: $7.41 |
| 37 |
144-1373 |
WHEEL HUB ASM This part replaces 108-7977-03. Price: $89.42 |
| 38 |
26-3790 |
NUT-LOCK Price: $24.46 |
| 39 |
147-3670 |
WHEEL AND TIRE ASM This part replaces 95-0621. Price: $268.49 |
