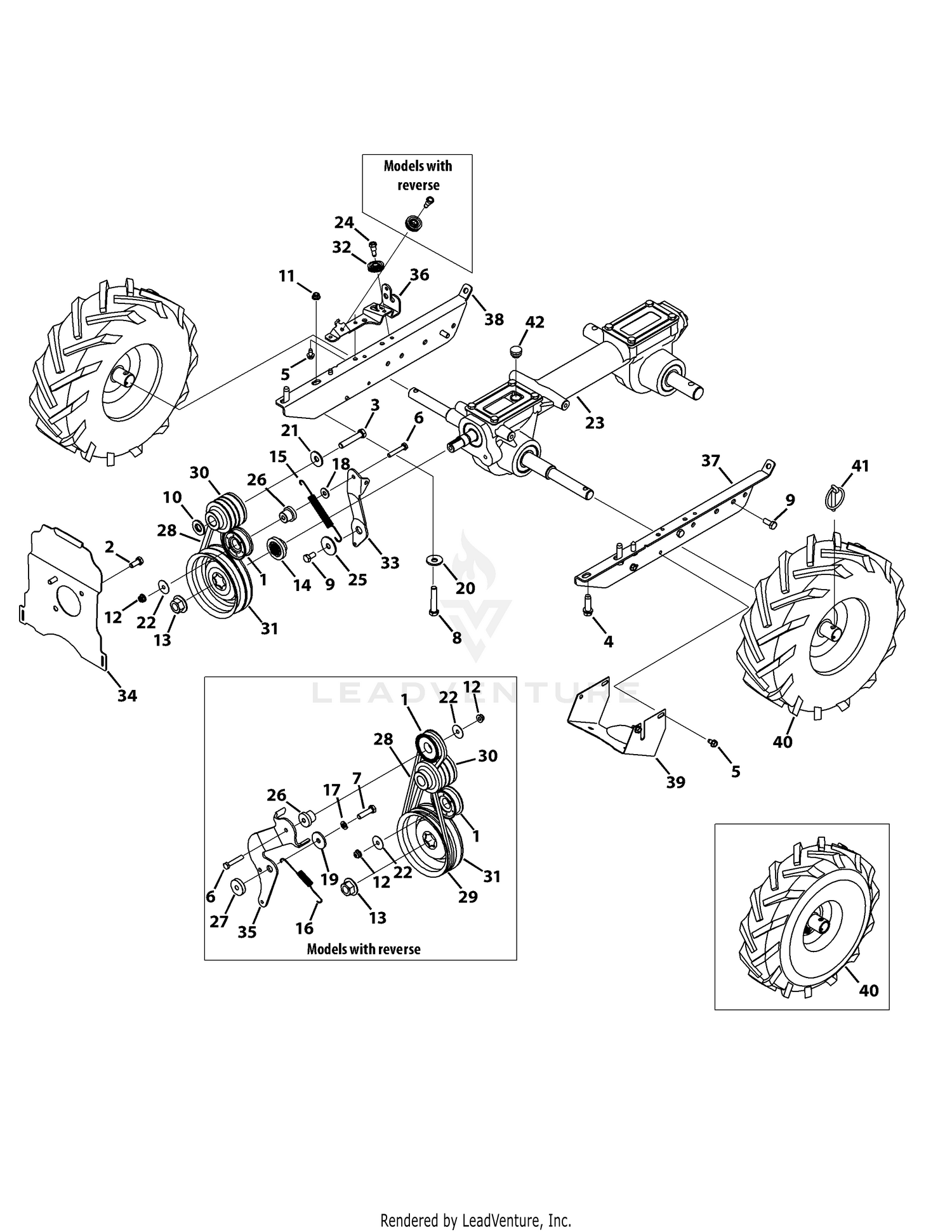

| Ref | Part Number | Description |
|---|
| 1 |
684-04168 |
Idler Pulley Assembly, 1917 OD Price: $34.09 |
| 2 |
710-0170 |
Hex Head Screw, 5/16-24 x 625 Price: $5.72 |
| 3 |
710-0151 |
Hex Head Screw, 3/8-24 x 200 Price: $6.55 |
| 3 |
710-0331 |
Hex Head Screw, 3/8-24 x 225, B&S Price: $6.01 |
| 4 |
710-0502A |
Screw, 3/8-16 x 1250 Price: $5.71 |
| 5 |
710-0599 |
Screw, 1/4-20 x 0500 Price: $3.86 |
| 6 |
710-0606 |
Hex Head Screw, 1/4-20 x 150 Price: $4.67 |
| 7 |
710-0672 |
Hex Head Screw, 5/16-24 x 125 Price: $3.85 |
| 8 |
710-0805A |
SCREW 5/16-18 x 1.5 LG This part replaces 710-0805. Price: $3.75 |
| 9 |
710-1880 |
Hex Head Screw, 5/16-18 x 75, Patch Price: $4.02 |
| 10 |
736-0315 |
Washer, Flat, 760 x 150 x 120 Price: $5.94 |
| 11 |
712-04063 |
Flangelock Nut, 5/16-18, B&S Price: $3.56 |
| 12 |
712-04064 |
Flangelock Nut, 1/4-20 Price: $3.64 |
| 13 |
712-0700 |
Flange Nut, 9/16-18 Price: $10.12 |
| 14 |
718-04407 |
Pulley Hub, 5/8 SPLINE Price: $11.11 |
| 15 |
732-04085 |
Extension Spring, 480 OD x 500 LG Price: $12.40 |
| 16 |
732-04276A |
Extension Spring, LT5 PTO Price: $8.55 |
| 17 |
936-0119 |
Washer, Lock, 5/16 Price: $4.29 |
| 18 |
736-0173 |
Washer, Flat, 28 x 74 x 063 Price: $3.76 |
| 19 |
736-0343 |
Washer, Flat, 330 x 125 x 120 Price: $3.90 |
| 20 |
736-04193 |
Washer, 396 x 1140 x 095, B&S Price: $5.94 |
| 21 |
736-0452 |
Bell Washer, .396 x 1.14 x .095 This part replaces 936-0452. Price: $4.05 |
| 22 |
736-3092 |
Washer, Flat, 265 x 10 x 030 Price: $3.68 |
| 23 |
753-06042A |
Transmission Assembly Price: $874.03 |
| 23 |
918-04934 |
TRANSMISSION Price: $834.32 |
| 24 |
738-04425 |
SHOULDER SCREW Price: $3.60 |
| 25 |
748-04087A |
Forward Idler Pivot Spacer Price: $5.66 |
| 26 |
750-04571 |
Spacer, Shoulder, 260 x 785 x 538 Price: $6.01 |
| 27 |
750-04907 |
Reverse Idler Pivot Spacer Price: $5.32 |
| 28 |
954-04090 |
V Belt, 4L x 25375 LG This part replaces 1916657. Price: $18.60 |
| 29 |
954-04091 |
V Belt, 3L x 29125 LG This part replaces 1916658. Price: $17.63 |
| 30 |
756-04198A |
Engine Pulley, 3L & 4L Price: $49.05 |
| 31 |
756-04355 |
Transmission Pulley Price: $48.52 |
| 32 |
756-0625 |
Cable Roller Price: $8.52 |
| 33 |
786-04312 |
Forward Idler Bracket Price: $11.96 |
| 34 |
786-04343-0638 |
Cover Mounting Plate Price: $17.41 |
| 35 |
786-04346 |
Reverse Idler Bracket Price: $9.16 |
| 36 |
786-04357A-0638 |
Pulley Mounting Bracket This part replaces 786-04357-0638. Price: $9.67 |
| 37 |
986-04419B-0638 |
FRAME-MOUNT (LH) (MTD RED) This part replaces 786-04419A-0638. Price: $17.59 |
| 38 |
986-04418B-0638 |
FRAME-MOUNT (RH) (MTD RED) This part replaces 786-04418A-0638. Price: $17.59 |
| 39 |
786-04371-0638 |
Pulley Shield Price: $17.73 |
| 40 |
634P06425 |
WHEEL ASSEMBLY (13 x 5 x 6) (SBD GRAY) This part replaces 934-04232. Price: $148.42 |
| 41 |
714-0143A |
Klik Pin, 25 DIA x 156 Price: $5.67 |
