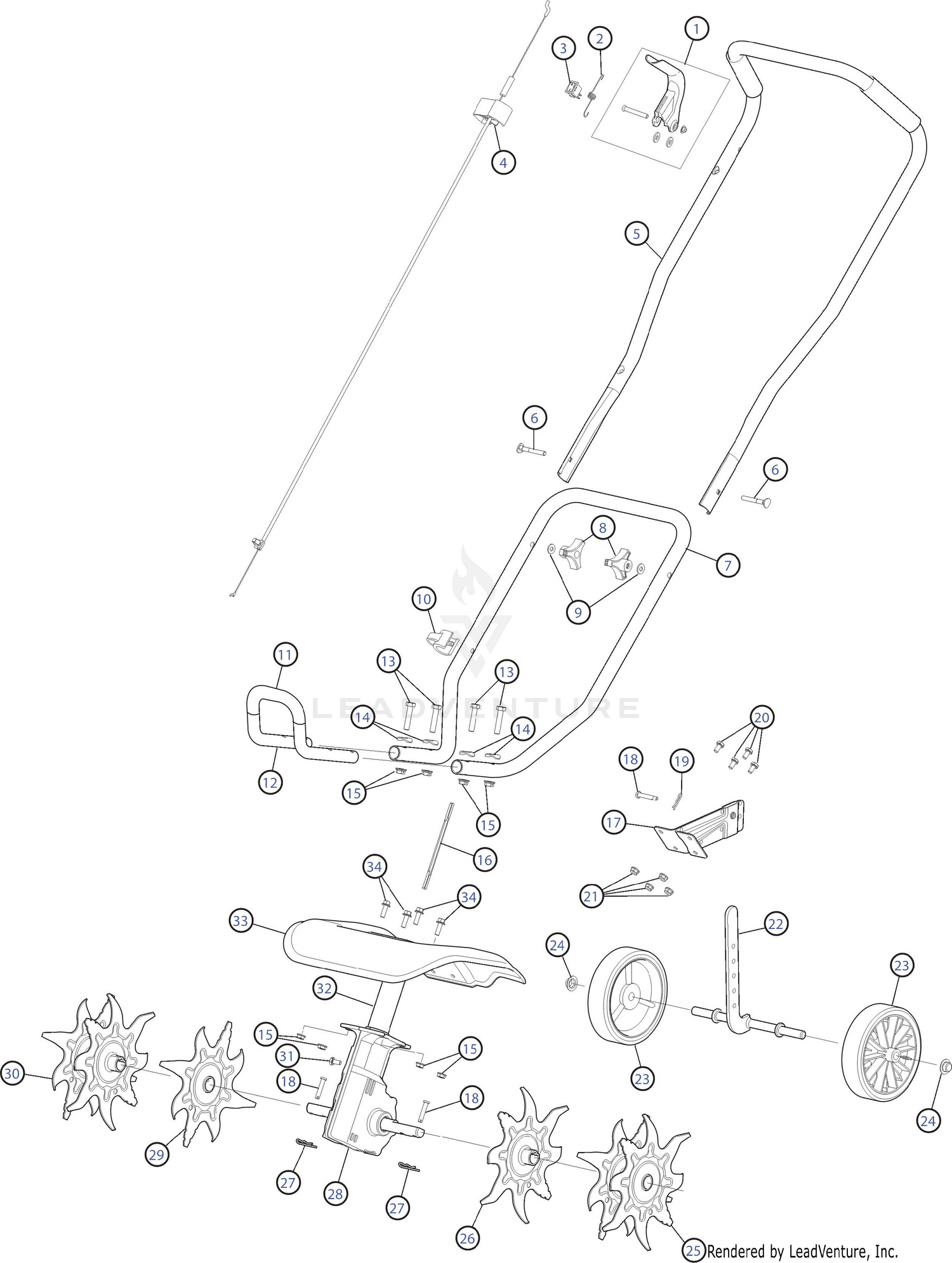

| Ref | Part Number | Description |
|---|
| 1 |
753-10504 |
THROTTLE LEVER This part replaces 753-06592. Price: $5.44 |
| 2 |
753-06636 |
Throttle Spring Price: $2.93 |
| 3 |
791-182405 |
On/Off Switch Price: $9.29 |
| 4 |
753-06546 |
Throttle Cable Price: $8.76 |
| 5 |
753-06818 |
Upper Handle Price: $23.43 |
| 6 |
791-182899 |
Bolt Price: $6.82 |
| 7 |
749-1295A-0637 |
Lower Handle Price: $52.68 |
| 8 |
791-182677 |
Knob Price: $12.48 |
| 9 |
4150 |
Washer Price: $2.63 |
| 10 |
725-0157 |
Cable Tie Price: $3.46 |
| 11 |
720-0294A |
FOAM GRIP - 9" This part replaces 720-0294. Price: $6.41 |
| 12 |
753-04055 |
FRONT HANDLE Not Available Price: |
| 13 |
791-182195 |
SCREW #10-24X11/16 T-25 Price: $6.20 |
| 14 |
736-0451 |
Saddle Washer This part replaces 936-0451. Price: $3.75 |
| 15 |
912-3027 |
Lock Nut Price: $3.85 |
| 16 |
753-04499 |
Flex Shaft Price: $26.32 |
| 17 |
753-04058 |
Tailpiece Bracket Assembly Price: $36.52 |
| 18 |
711-1017 |
Clevis Pin Price: $6.57 |
| 19 |
714-0104 |
Hairpin Clip This part replaces 914-0104. Price: $3.90 |
| 20 |
710-3013 |
Cap Screw Price: $4.02 |
| 21 |
912-3027 |
Lock Nut Price: $3.85 |
| 22 |
753-04063 |
Wheel Support Bracket Assembly Price: $50.99 |
| 23 |
734-04261 |
Wheel Price: $18.51 |
| 24 |
726-0299 |
Push Cap Price: $7.03 |
| 27 |
753-06013 |
Bow Clip Price: $3.65 |
| 28 |
753-06063 |
Gear Box Assembly Price: $117.17 |
| 31 |
710-0599 |
Sleeve Retaining Bolt Price: $3.86 |
| 32 |
753-06242 |
Drive Shaft Housing Price: $19.43 |
| 33 |
753-06010 |
Tine Shield Price: $45.36 |
