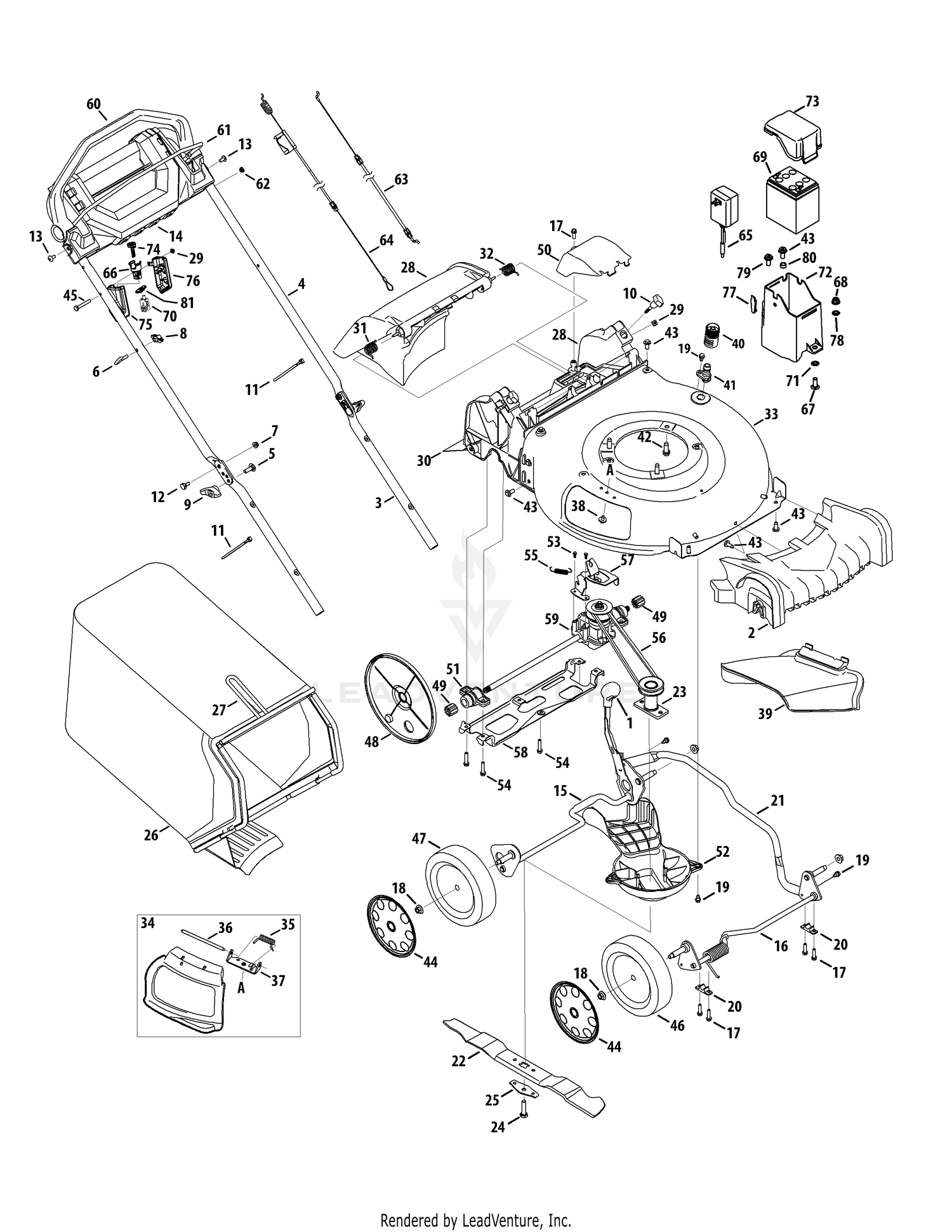

| Ref | Part Number | Description |
|---|
| 1 |
720-04113 |
Adjustment Lever Knob Price: $9.09 |
| 2 |
931-10334 |
FRONT AXLE COVER This part replaces 731-10334. Price: $36.90 |
| 3 |
749-07298-0637 |
LOWER HANDLE (POWDER BLACK) This part replaces 749-04608A-0637. Price: $8.76 |
| 4 |
749-05084B-0637 |
UPPER HANDLE (POWDER BLACK) This part replaces 749-05084-0637. Price: $29.46 |
| 5 |
710-04998 |
Carriage Screw ,5/16-18 Price: $4.89 |
| 6 |
710-1205 |
Rope Guide Price: $3.53 |
| 7 |
712-04064 |
Nut, Flange Lock, 1/4-20 Price: $3.64 |
| 8 |
720-0279 |
Knob Price: $3.93 |
| 9 |
720-04124 |
Wing Knob Price: $4.37 |
| 10 |
720-05066A |
WING KNOB 1/4-20 This part replaces 720-05066. Price: $3.93 |
| 11 |
725-0157 |
Cable Tie Price: $3.46 |
| 12 |
738-04419A |
Sldr. Screw, .375 x .126 x 1/4-20 Price: $3.61 |
| 13 |
710-1017 |
Screw, 1/4-14 x .625 Price: $7.26 |
| 14 |
931-09823A |
HANDLE CONSOLE This part replaces 931-09823. Price: $29.37 |
| 15 |
611-04189A |
REAR AXLE ASSEMBLY This part replaces 911-04189. Price: $48.42 |
| 16 |
911-04190B |
FRONT AXLE ASSEMBLY This part replaces 911-04190A. Price: $42.41 |
| 17 |
710-0895 |
Screw, 1/4-15 x .750 Price: $5.82 |
| 18 |
712-04217 |
Flange Lock Nut, 3/8-16 Price: $3.75 |
| 19 |
738-04278 |
Scr., Shldr., 1/4-20 x .50 Price: $5.99 |
| 20 |
741-0492A |
Bushing, Lock, .505 Dia. X .62 Price: $5.41 |
| 21 |
949-04841C-0637 |
Cross Bracket Price: $33.53 |
| 22 |
942-0741A |
Mulching Blade Price: $27.55 |
| 23 |
687-02220 |
Blade Adapter Price: $33.78 |
| 24 |
710-1044 |
Screw, 3/8-24 x 1.50 Price: $3.48 |
| 25 |
736-0524B-1 |
BLADE BELL SUPPORT This part replaces 736-0524B. Price: $5.34 |
| 26 |
964-04150B |
Grass Bag Price: $47.93 |
| 27 |
747-05362A |
Grass Bag Frame This part replaces 747-05362A-0637. Price: $38.39 |
| 28 |
631-04553A |
Rear Discharge Door Assembly Price: $71.57 |
| 29 |
712-04222 |
Nut, Sq., 1/4-20 Price: $4.77 |
| 30 |
731-07203 |
Trailing Shield Price: $9.41 |
| 31 |
732-05061B |
TORSION SPRING (RH) This part replaces 732-05061A. Price: $4.64 |
| 32 |
732-05062A |
Torsion Spring - LH Price: $4.64 |
| 33 |
787-02003B-0638 |
Deck , 21" Price: $111.78 |
| 35 |
732-1014C |
Torsion Spring Price: $7.40 |
| 36 |
747-0710A |
Hinge Pin Price: $3.86 |
| 37 |
787-01779 |
Chute Deflector Bracket Price: $4.13 |
| 38 |
710-05073 |
Screw, 1/4-20 x .500 Price: $3.52 |
| 39 |
731-07131 |
Side Discharge Chute Price: $13.83 |
| 40 |
921-04041 |
Water Nozzle Adapter Price: $20.19 |
| 41 |
731-07487 |
Water Nozzle Price: $3.86 |
| 42 |
710-04683C |
SCREW 3/8-16 x 1 This part replaces 710-04683A. Price: $5.67 |
| 43 |
710-04995A |
Screw, 5/16-14 x .750 Price: $3.61 |
| 44 |
731-07198 |
Hubcap, 8" Price: $6.28 |
| 45 |
710-0136 |
Screw, 1/4-20 x 1.75 Price: $3.66 |
| 46 |
634-04660 |
Front Wheel Price: $24.13 |
| 47 |
934-05042 |
Rear Wheel Price: $35.26 |
| 49 |
917-04852 |
Spur Gear, 10T Price: $3.95 |
| 50 |
731-08175 |
Transmission Cover Price: $10.24 |
| 51 |
631-04501A |
Bearing Assembly Price: $5.78 |
| 52 |
631-04512D |
ENGINE BAFFLE ASSEMBLY This part replaces 631-04512C. Price: $18.62 |
| 53 |
710-04374 |
Screw, Hex Washer, .159 x .43 Price: $3.24 |
| 54 |
710-04774 |
Screw, 1/4-15 x 1.25 Price: $4.02 |
| 55 |
732-05150A |
Exten. Spring, 2.405 Price: $3.70 |
| 56 |
954-04282 |
V-Belt Price: $26.49 |
| 57 |
787-01868B-0637 |
TRANSMISSION BRACKET (POWDER BLACK) This part replaces 787-01868A-0637. Price: $7.69 |
| 58 |
787-01915C |
REAR CLIP SUPPORT BRACKET This part replaces 787-01915A. Price: $16.76 |
| 59 |
918-07000 |
Transmission Assembly Price: $130.39 |
| 60 |
731-09730B |
DRIVE HANDLE This part replaces 731-09730. Price: $26.00 |
| 61 |
747-06243B-0638 |
OPERATOR BAIL (MTD RED) This part replaces 747-06243-0638. Price: $15.59 |
| 62 |
748-05047 |
Shoulder Spacer, .18 x .315 x .09 Price: $5.23 |
| 63 |
946-05105A |
Cable (Control) This part replaces 946-05105. Price: $36.90 |
| 64 |
946-05121A |
SPEED CABLE This part replaces 946-05121. Price: $24.07 |
| 65 |
725-06121C |
BATTERY CHARGER This part replaces 725-06121. Price: $41.56 |
| 66 |
931-05131A |
Key Switch Price: $11.54 |
| 67 |
710-0276 |
Bolt, Carr., 5/16-18 x 1.00 Price: $3.68 |
| 68 |
712-0429 |
Lock Nut, 5/16-18 This part replaces 912-0429. Price: $3.56 |
| 69 |
725P04903 |
BATTERY 12V This part replaces 725-04903. Price: $99.17 |
| 70 |
725-06114 |
Plunger Switch Price: $29.37 |
| 71 |
726-0201 |
Speed Nut Price: $6.01 |
| 72 |
731-07135 |
Battery Housing Price: $12.52 |
| 73 |
731-07154A |
Battery Housing Top Price: $7.49 |
| 74 |
731-09728 |
Key Price: $4.19 |
| 75 |
731-09753B |
PUSH START HOUSING (RH) This part replaces 731-09753. Price: $5.59 |
| 76 |
731-09755 |
Electric Start Housing, LH Price: $4.64 |
| 77 |
735-04213C |
LID SEAL This part replaces 735-04213A. Price: $3.99 |
| 78 |
736-0242 |
Washer, Bell, .340 x .872 x .080 Price: $3.75 |
| 79 |
738-04431A |
SHOULDER SCREW 5/16-14 x .972 Price: $3.36 |
| 80 |
750-05377 |
Spacer, .340 x .460 x .246 Price: $3.13 |
| 81 |
787-03162 |
PLUNGER BRACKET Not Available Price: |
