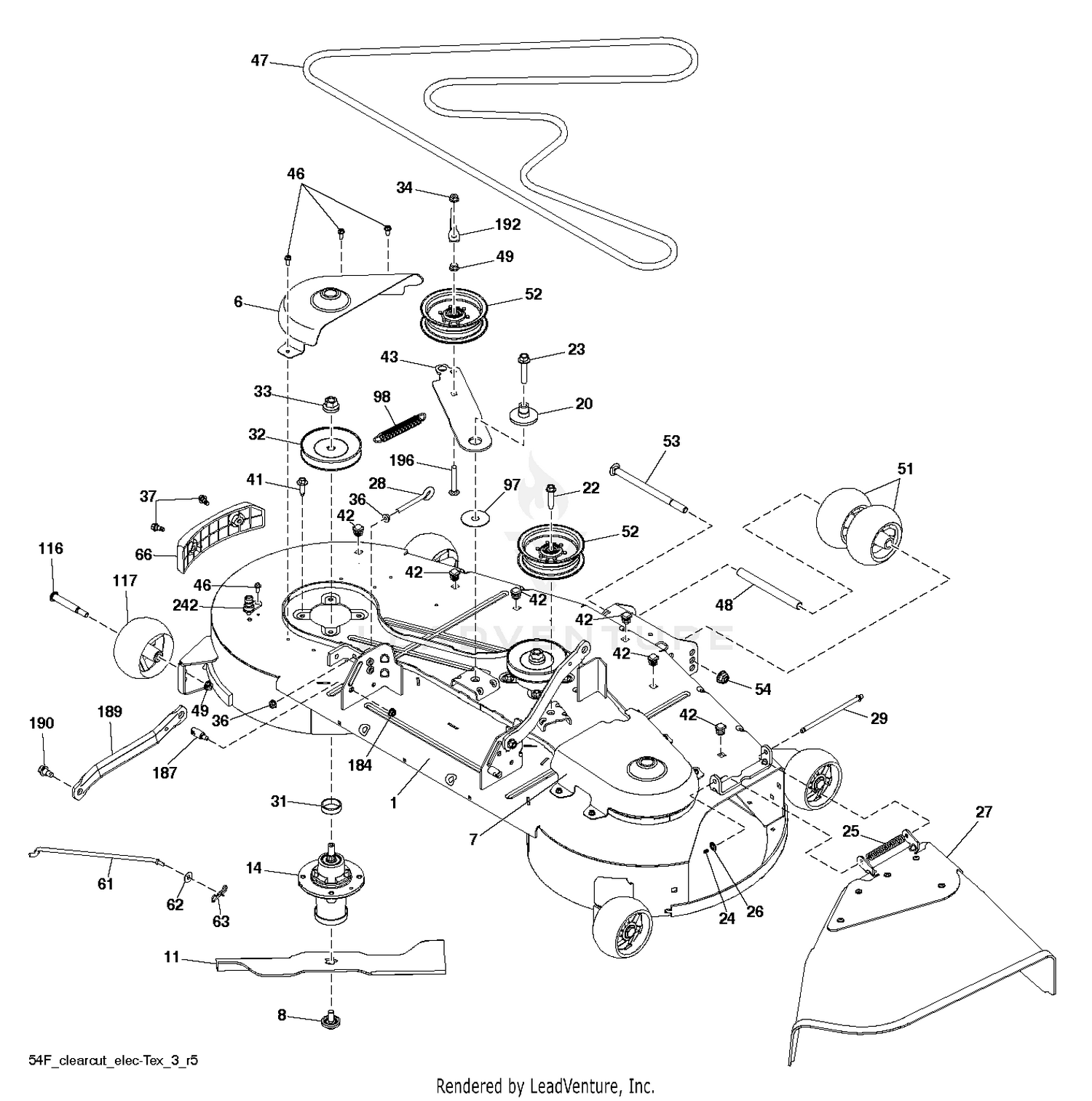

| Ref | Part Number | Description |
|---|
| 1 |
592618801 |
SERVICE KIT KIT.SVC.WELDMENT.5 Price: $1,199.99 |
| 6 |
590304303 |
COVER 54 CLEARCUT, LH MANDREL, Price: $9.99 |
| 7 |
590304203 |
COVER 54 CLEARCUT RH MANDREL G Price: $22.99 |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 11 |
582760502 |
BLADE CC54 PZ STYLE HI LIFT BL Price: $34.99 |
| 14 |
539131898 |
MANDREL ASM, CAST IRON Price: $69.99 |
| 20 |
532197236 |
SPACER.IDLER.PULLY.HUB Price: $7.99 |
| 22 |
599972501 |
BOLT This part replaces 596564003. Price: $2.99 |
| 23 |
588438301 |
SCREW.7/16-14 X 2.125.WASHER Price: $5.99 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
587354701 |
SPRING.42.FCS.DEFLECTOR Price: $5.99 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
590632201 |
DEFLECTOR ASSY 54 CLEARCUT RES Price: $64.99 |
| 28 |
596240801 |
GSPW Bolts Price: $3.99 |
| 29 |
595297001 |
Rods Price: $4.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 32 |
532173436 |
PULLEY MANDREL This part replaces 532153535. Price: $14.99 |
| 33 |
596134801 |
Nuts Price: $1.00 |
| 34 |
596322601 |
Nuts Price: $2.99 |
| 36 |
596039201 |
GSPW Hardware Price: $2.99 |
| 37 |
532170165 |
SHOULDER BOLT 5/16-18TT Price: $3.99 |
| 41 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 Price: $3.99 |
| 42 |
596952201 |
Plugs Price: $2.99 |
| 43 |
582219602 |
ARM IDLER ARM, CLEARCUT 54 BLA Price: $4.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 47 |
582236301 |
BELT CLEARCUT 54, TRACTOR DECK Price: $59.99 |
| 48 |
574196502 |
Tubes Price: $17.99 |
| 49 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 51 |
574169601 |
ROLLER, GAUGE .635 BORN Price: $14.99 |
| 52 |
532196106 |
PULLEY.IDLER.2006 This part replaces 532197379. Price: $34.99 |
| 53 |
594944501 |
Bolts Price: $7.99 |
| 54 |
521991102 |
NUT 1/2-13 HEX FLANGE NYLOK CL Price: $3.99 |
| 61 |
596274401 |
Rods Price: $9.99 |
| 62 |
596133201 |
Washers Price: $5.99 |
| 63 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 97 |
532178515 |
WASHER Price: $5.99 |
| 98 |
587358401 |
SPRING.EXTN.42.FCS.TR.DECK.DRV Price: $6.99 |
| 116 |
596434404 |
Bolts Price: $4.99 |
| 117 |
589527301 |
WHEEL.GAUGE.RALLY Price: $8.99 |
| 184 |
596135701 |
GSPW Nuts Price: $2.99 |
| 187 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 189 |
536050602 |
LINK FIXED MOWER DRAWBAR BLACK This part replaces 587140502. Price: $5.99 |
| 190 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 192 |
532198468 |
KEEPER.BELT.IDLER.54"T Price: $7.99 |
| 196 |
596337801 |
Bolts Price: $4.99 |
| 242 |
532415598 |
PORT.WASHOUT Price: $6.99 |
