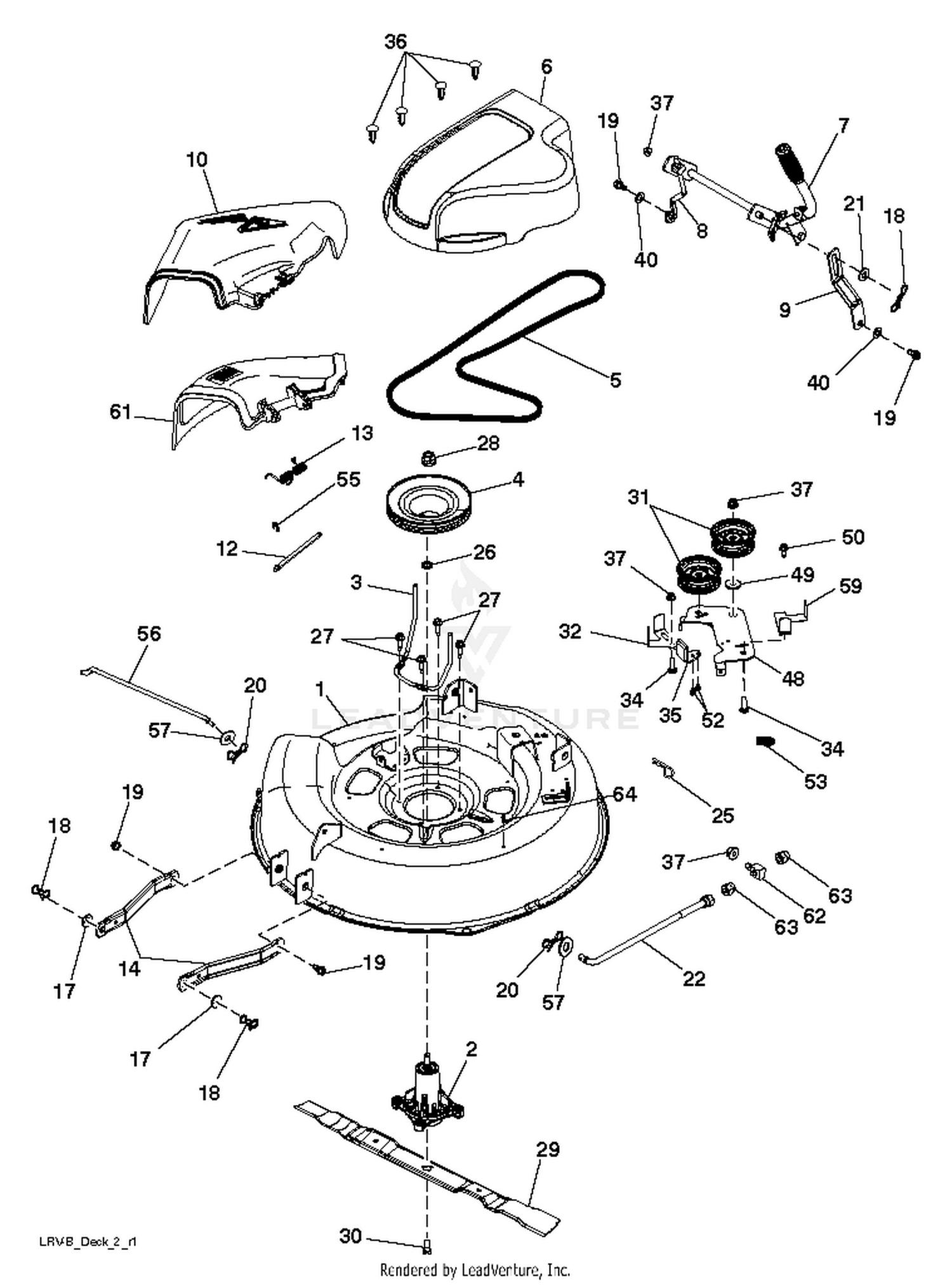

| Ref | Part Number | Description |
|---|
| 1 |
21-1880 |
GRIP-HANDLE Price: $11.67 |
| 1 |
532436848 |
DECK.WELDMENT.LRV.30.BLACK Price: $159.99 |
| 2 |
587253301 |
MANDREL.NONGREASEABLE.TALL This part replaces 532192870. Price: $32.99 |
| 2 |
84-8500-01 |
LEVER-PTO This part replaces 21-1550. Price: $107.85 |
| 3 |
21-1600 |
CLAMP-LEVER, PTO Price: $279.65 |
| 3 |
532436856 |
KEEPER.LRV.GEN2.MANDREL BELT Price: $44.99 |
| 4 |
32104-6 |
SCREW-HH, TAP Price: $3.19 |
| 4 |
532436855 |
PULLEY.LRV.GENS.MANDREL Price: $27.99 |
| 5 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 5 |
532441597 |
V-BELT.MOWER.30.LRVB Price: $54.99 |
| 6 |
283-2 |
PIN-CLEVIS Price: $12.99 |
| 6 |
532436863 |
COVER.MANDREL.30".LRV.(B) Price: $44.99 |
| 7 |
21-2080 |
DISCONTINUED Price: Call Us |
| 7 |
532429395 |
LIFT.ASM.DECK.LRV Price: $54.99 |
| 8 |
23-2020 |
DISCONTINUED Price: Call Us |
| 8 |
532429195 |
LINK, DECK LIFT Price: $5.99 |
| 9 |
3257-5 |
KEY-WOODRUFF Price: $5.13 |
| 9 |
532429397 |
LINK.ASM.LIFT.ADJUSTABLE Price: $17.99 |
| 10 |
106-4383 |
BELT-V, BANDED This part replaces 23-1820. Price: $40.02 |
| 10 |
583536201 |
DEFLECTOR.LRV.26 This part replaces 532438923. Price: $32.99 |
| 11 |
21-4230 |
Pulley P.T.O. Price: Call Us |
| 12 |
3256-28 |
WASHER-FLAT Price: $0.48 |
| 12 |
532131491 |
ROD.HINGE Price: $1.99 |
| 13 |
3254-7 |
WASHER-LOCK, INT Price: $4.82 |
| 13 |
532197026 |
SPRING.TORSION.DEFLECT Price: $5.99 |
| 14 |
3219-7 |
NUT-HEX Price: $1.53 |
| 14 |
532195185 |
ARM.SUSPENSION.MOWER Price: $11.99 |
| 15 |
3272-22 |
PIN-COTTER Price: $0.61 |
| 16 |
23-1980 |
DISCONTINUED Price: Call Us |
| 17 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 17 |
819191912 |
WASHER.CLEAR.ZINC Price: $3.99 |
| 18 |
3296-26 |
NUT-LOCK, NI Price: $2.99 |
| 18 |
532194209 |
PIN.COTTER.7/16.BOW TI. Price: $1.99 |
| 19 |
3256-4 |
WASHER-FLAT This part replaces 3256-36. Price: $0.28 |
| 19 |
532196539 |
BOLT.SHOULDER Price: $4.99 |
| 20 |
302-10 |
FITTING-GREASE Price: $2.64 |
| 20 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $1.99 |
| 21 |
251-252 |
BEARING Price: $98.35 |
| 21 |
819171912 |
WASHER Price: $3.99 |
| 22 |
251-234 |
COLLAR-LOCKING Price: $17.04 |
| 22 |
532441598 |
SUBASM.LINK.DECK.TOP.LRVB Price: $22.99 |
| 23 |
32120-22 |
RING-SNAP, INTERNAL Price: $2.29 |
| 24 |
23-2010 |
DISCONTINUED Price: Call Us |
| 25 |
100-6564 |
DRIVESHAFT ASM This part replaces 21-3090. Price: $924.10 |
| 25 |
532004497 |
RETAINER M This part replaces 532124788. Price: $5.99 |
| 26 |
32121-34 |
PIN-ROLL Price: $1.31 |
| 26 |
532187690 |
WASHER.SPACER.MANDREL Price: $1.99 |
| 27 |
3245-1 |
SCREW-SET, HSH Price: $0.54 |
| 27 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $1.99 |
| 28 |
532400234 |
NUT.FLANGE.LOCK.TOP Price: $3.99 |
| 29 |
32121-9 |
PIN-ROLL, SLOTTED Price: $2.56 |
| 29 |
532419273 |
BLADE, MULCH.LRV30 Price: $11.99 |
| 30 |
21-1830 |
SPRING-EXTENSION Price: $34.62 |
| 30 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $5.99 |
| 31 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $14.99 |
| 32 |
532141043 |
GUARD, BELT Price: $3.99 |
| 34 |
872110612 |
BOLT.3/8-16X1.50 Price: $3.99 |
| 35 |
532400130 |
BRAKE.ARM.LH.38"TEX.COATED This part replaces 532199470. Price: $11.99 |
| 36 |
532137729 |
SCREW.1/4-20X5/8 Price: $2.99 |
| 37 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.99 |
| 40 |
819171616 |
Washer 17/32 x 1-1/6 x 13 Gauge (AYP part number) Price: $5.99 |
| 48 |
532436857 |
ARM.LRV.GEN2.CLUTCHING Price: $9.99 |
| 49 |
532199092 |
SPACER.RETAINER Price: $3.99 |
| 50 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 52 |
817600406 |
SCREW 1/4X20 Price: $2.99 |
| 53 |
532401872 |
SPRING RETURN Price: $2.99 |
| 55 |
532437988 |
E-RING.5/16" Price: $2.99 |
| 56 |
532436862 |
ROD.LRV.GEN2.ANTI.SWAY Price: $14.99 |
| 57 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 59 |
532436858 |
GUARD.TUV.IDLER.42 Price: $2.99 |
| 61 |
532437947 |
MULCH.COVER.ASSEMBLY.30" Price: $44.99 |
| 62 |
532176205 |
TRUNNION Price: $3.99 |
| 63 |
532175994 |
NUT, LIFT LINK 7/16-20 Price: $3.99 |
