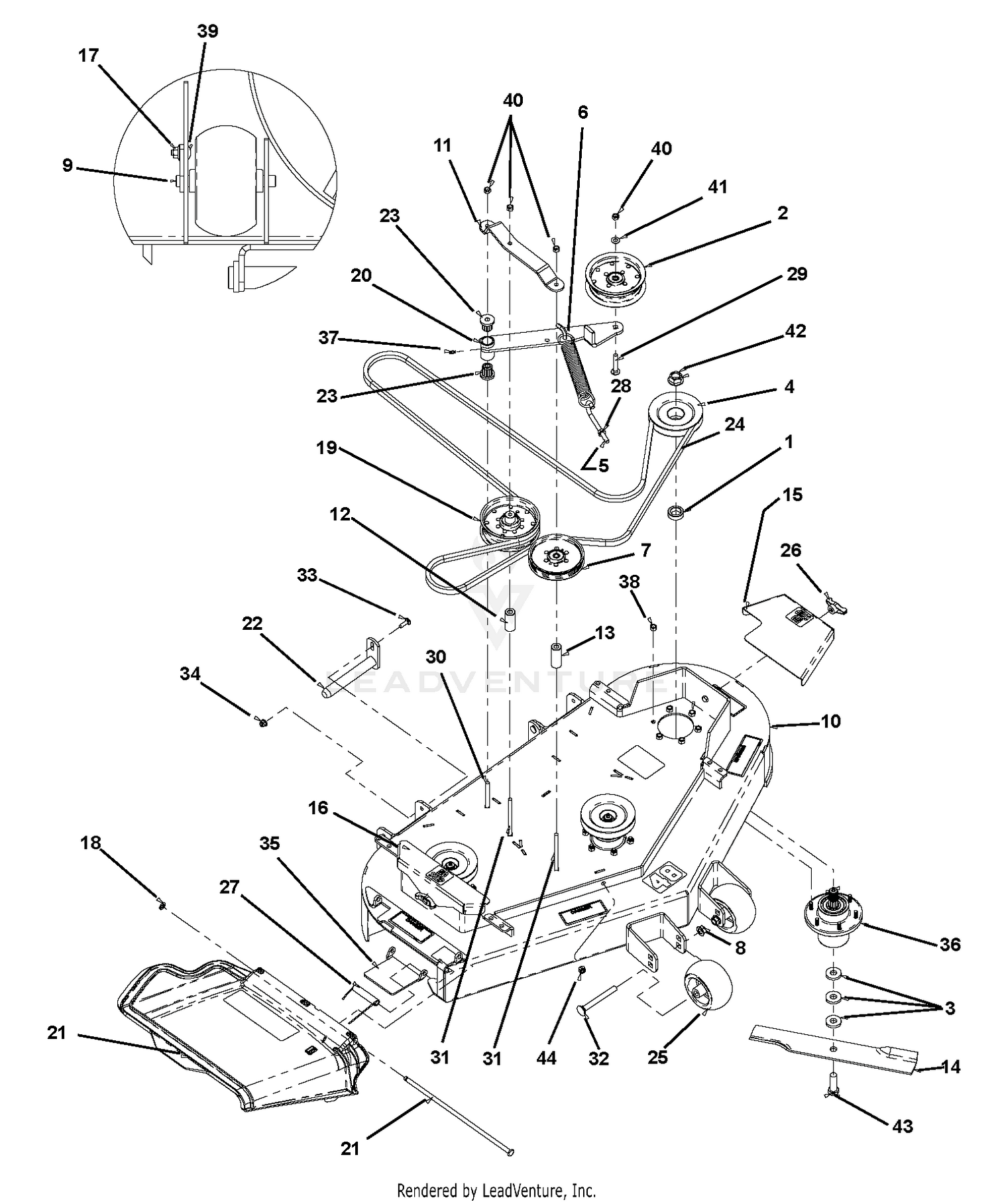

| Ref | Part Number | Description |
|---|
| 1 |
D13024 |
SPACER, SPINDLE TOP-PULLEY Price: $12.45 |
| 2 |
07346700 |
IDLER, FLAT-5.00" X .75" This part replaces D18032. Price: $72.45 |
| 3 |
06401033 |
WSHR,FLT .630X1.50X.25 ZCC This part replaces D18055. Price: $6.45 |
| 4 |
D18209 |
PULLEY, SMALL W/TALL HUB Price: $81.95 |
| 5 |
D23058 |
J-BOLT, 3/8-16 X 4.00 Y Price: $5.45 |
| 6 |
D28025 |
SPRING, DECK IDLER Price: $26.95 |
| 7 |
07352400 |
IDLER- 5" FLANGED This part replaces D28050. Price: $35.95 |
| 8 |
E62934 |
LOCKNUT 1/2 W/FLANGE Price: Call Us |
| 9 |
GDA10103 |
PIVOT, RETAINER WELD Price: $43.95 |
| 10 |
00201348 |
DECK, 48 W/DECALS S/O Price: Call Us |
| 11 |
GDU10119 |
STRAP, IDLER PULLEY Price: Call Us |
| 12 |
GDU10180 |
SPACER, .437X1.00X2.25 SMLS Price: Call Us |
| 13 |
GDU10181 |
SPACER, .437X1.00X2.50 SMLS Price: Call Us |
| 14 |
GDU10230 |
BLADE, 16.500 X .80 LIFT Price: $25.95 |
| 15 |
00201066 |
COVER, BELT W/DECALS S/O Price: Call Us |
| 16 |
00201067 |
COVER, BELT W/DECAL S/O Price: Call Us |
| 17 |
H122207 |
NUT-1/4" FLANGE PREVAILING TOR Price: Call Us |
| 18 |
H141123 |
RETAINER # Price: Call Us |
| 19 |
TCA14548 |
PULLEY, FLAT 5.25X.375 W/BRG Price: $101.95 |
| 20 |
TCA15346 |
ARM, IDLER * Price: $112.45 |
| 21 |
TCA16387 |
CHUTE DISCHARGE ASSY # Price: $32.95 |
| 22 |
TCA13292 |
PIN, WELDED Price: $89.95 |
| 23 |
TCU14540 |
BRG, FLG M10XM25XM27 FLUTED Price: $15.95 |
| 24 |
TCU16092 |
BELT Price: $109.95 |
| 25 |
TCU18744 |
WHEEL, GAGE Price: $12.95 |
| 26 |
M119352 |
KNOB, 3/8-16 INSERT Price: $3.45 |
| 27 |
M132768 |
SPRING,CHUTE GUARD Price: $8.45 |
| 28 |
N10215 |
LOCKNUT, 3/8-16 WHIZ Y Price: Call Us |
| 29 |
06200301 |
BLT,RHSN .38-16X2.25 G5 ZCC This part replaces 03H1658. Price: $3.95 |
| 30 |
03H1836 |
BOLT, 3/8-16X3.50 CRG 5 Y Price: Call Us |
| 31 |
03H1838 |
BLT-RDHDSQNK .38-16X5.0 YWZC Price: Call Us |
| 32 |
03H1853 |
BOLT, 1/2-13X4.50 CRG 5 Y Price: Call Us |
| 33 |
03M7185 |
BOLT,RH,SQNECK,JDS137,M8X1.25X Price: Call Us |
| 34 |
14M7396 |
LOCKNUT, M8X1.25 NYLOC FLG 10Y Price: Call Us |
| 35 |
00200095 |
BRKT, SUPPORT DISCHARGE CHUTE Price: $22.45 |
| 36 |
00200262 |
ASSY, SPINDLE S/O Price: $258.45 |
| 37 |
00959995 |
FTG, 1/4-28 STRGT GREASE ZERK Price: $3.45 |
| 38 |
00960502 |
NUT, 3/8-16 STD HEX GR5 Y Price: Call Us |
| 39 |
06200307 |
BLT, RHSN .25-20X.750 G5 ZCC This part replaces 00963095. Price: $0.95 |
| 40 |
00964022 |
LOCKNUT, 3/8-16 CROWN Y Price: Call Us |
| 41 |
00964501 |
WASHER, .406X.813X.065 FLAT Y Price: Call Us |
| 42 |
06401037 |
WSHR-FL-STL .75X1.312X.12 ZC12 This part replaces 00967333. Price: $1.95 |
| 43 |
05901725 |
BLT, HEX .62-11X2.00 G8 ZCC This part replaces 00967348. Price: $5.45 |
