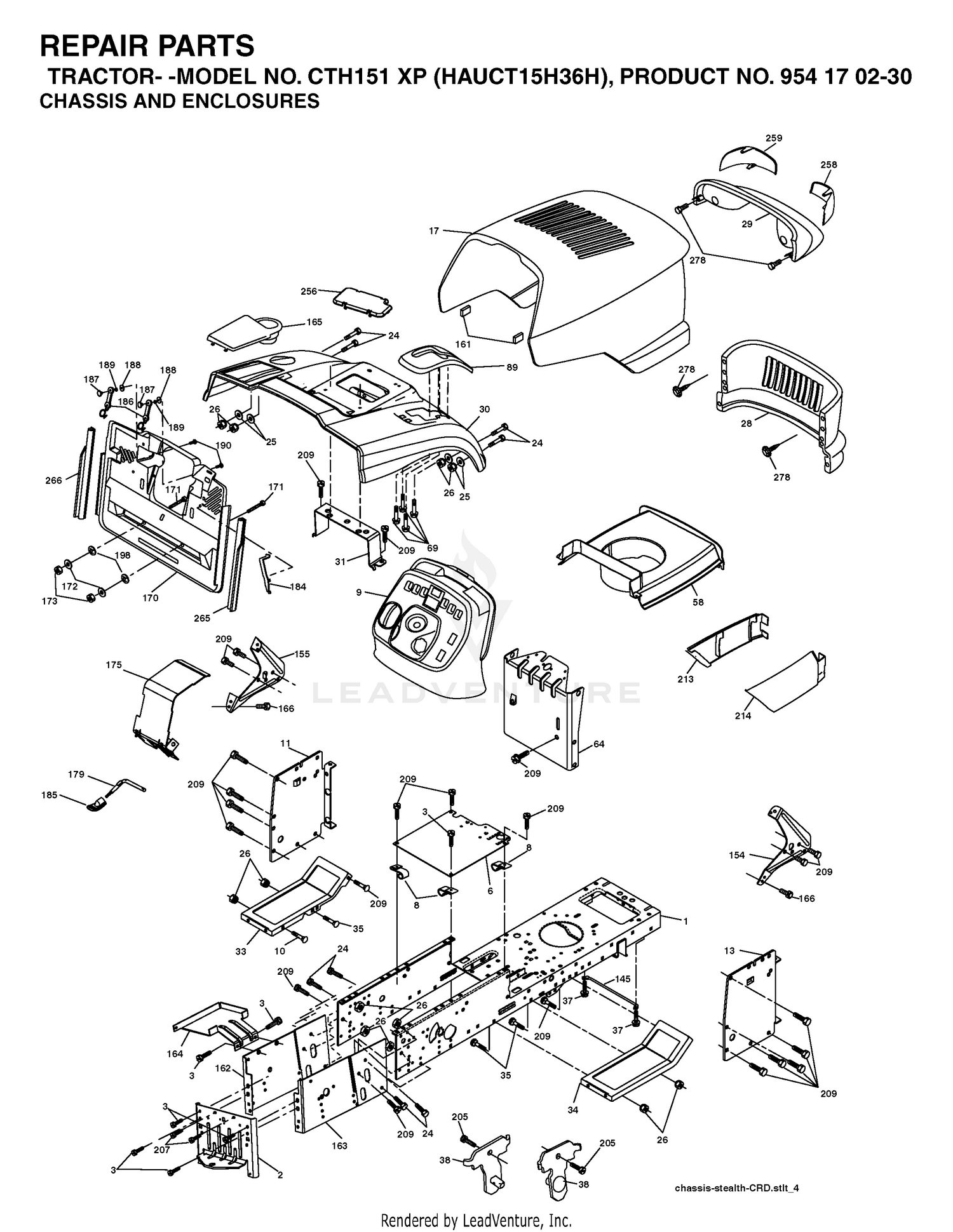

| Ref | Part Number | Description |
|---|
| 1 |
532174620 |
CHASSIS Price: $119.99 |
| 1 |
94-9141-01 |
SCREEN This part replaces 94-9141. Price: $546.46 |
| 2 |
119-8016 |
TOP PANEL ASM This part replaces 94-9135. Price: $1,587.76 |
| 2 |
583101001 |
DRAWBAR.CRD This part replaces 532180384. Price: $64.99 |
| 3 |
119-6051 |
PANEL-HOPPER, LH This part replaces 94-9129. Price: $1,356.99 |
| 3 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
| 4 |
3234-33 |
SCREW-HHF Price: $0.79 |
| 5 |
94-9128-01 |
PANEL-FRONT This part replaces 94-9128. Price: $168.03 |
| 6 |
13-6760 |
DECAL-CAUTION Price: $41.90 |
| 6 |
583133601 |
SADDLE.FLAT.LT/YT/CRD.2003 This part replaces 532184419. Price: $12.99 |
| 7 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 8 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 9 |
32128-32 |
NUT-HHF Price: $2.69 |
| 9 |
532193624 |
DASH This part replaces 532195886. Price: $50.99 |
| 10 |
13-2930 |
DISCONTINUED Price: Call Us |
| 10 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 11 |
119-6242 |
PIN-HINGE This part replaces 283-39. Price: $27.18 |
| 11 |
532167203 |
PANEL DASH LH Price: $19.99 |
| 13 |
532178298 |
PANEL DASH RH Price: $19.99 |
| 13 |
93-4003-01 |
TAILGATE ASM This part replaces 93-4003. Price: $3,420.04 |
| 14 |
13-7430 |
DECAL-WARNING Price: $67.40 |
| 15 |
3229-7 |
SCREW-CARR Price: $0.87 |
| 16 |
13-7340-01 |
STIFFENER-LH This part replaces 13-7340. Price: $300.82 |
| 17 |
532188208 |
HOOD.ASM.STEALTH.STV.2004 This part replaces 532190055. Price: $149.99 |
| 17 |
67-7920 |
DECAL Price: $96.70 |
| 18 |
93-4031-01 |
STRAP-HOPPER, TOP This part replaces 93-4031. Price: $74.75 |
| 19 |
93-4042-01 |
SUPPORT-HOPPER This part replaces 93-4042. Price: $310.58 |
| 20 |
3256-55 |
WASHER-FLAT Price: $3.69 |
| 21 |
12-8810 |
SPRING-EXTENSION Price: $26.98 |
| 22 |
32122-42 |
SCREW Price: $1.69 |
| 23 |
94-9139-01 |
PANEL-BOTTOM, LH This part replaces 94-9139. Price: $489.00 |
| 24 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 24 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 25 |
13-3710 |
WASHER Price: $3.05 |
| 25 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 26 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 26 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 27 |
325-6 |
SCREW-HH Price: $1.42 |
| 28 |
532182873 |
GRILLE.STEALTH P/L.YTGT.GREY Price: $169.99 |
| 28 |
94-9138-01 |
PANEL-BOTTOM, CENTER This part replaces 94-9138. Price: $244.33 |
| 29 |
532188212 |
LIGHTBOX.ASM.STV.DL.INC.HUSQ Price: $89.99 |
| 29 |
94-9137-01 |
PANEL-BOTTOM, RH This part replaces 94-9137. Price: $489.00 |
| 30 |
3250-32 |
SCREW-PPH Price: $0.54 |
| 30 |
532197376 |
CONSOLE.CRD.AUTO.GRY Price: $8.99 |
| 31 |
532165156 |
BRACKET SUPPORT FENDER Price: $5.99 |
| 31 |
93-4030-01 |
STRAP-HOPPER, FRONT This part replaces 93-4030. Price: $22.13 |
| 32 |
3258-165 |
SCREW-PRH Price: $4.07 |
| 33 |
532182507 |
FOOTREST.LH.BLACK This part replaces 532181057. Price: $37.99 |
| 33 |
93-0184 |
DECAL-HOPPER Price: $41.42 |
| 34 |
106-9665 |
TUBE & CAP ASM This part replaces 65-5871. Price: $17.71 |
| 34 |
532182508 |
FOOTREST.RH.BLACK This part replaces 532181058. Price: $22.99 |
| 35 |
596136001 |
Bolts This part replaces 872110606. Price: $3.99 |
| 35 |
65-5890 |
CAP-END Price: $8.09 |
| 36 |
2412-102 |
CLAMP-R Price: $6.85 |
| 37 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 37 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 38 |
323-6 |
SCREW-HH Price: $0.66 |
| 38 |
583117401 |
BRACKET ARM.PIVOT.REAR This part replaces 532181748. Price: $9.99 |
| 39 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 40 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 41 |
325-7 |
SCREW-HH Price: $1.53 |
| 42 |
93-7708 |
STRIP-SEAL Price: $10.93 |
| 58 |
532189875 |
NEEDS DESCRIPTION Price: Call Us |
| 64 |
532184340 |
DASH.LOWER.YT.2003 Price: $19.99 |
| 69 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 89 |
532441574 |
CONSOLE.CRD.AUTO.GRY This part replaces 532197377. Price: $8.99 |
| 145 |
532409167 |
ROD.PIVOT.HOOD This part replaces 532156524. Price: $9.99 |
| 154 |
532183925 |
Price: Call Us |
| 155 |
532183926 |
Price: Call Us |
| 161 |
532164655 |
EXTRUSION BUMPER (3 2) (2 2) Price: $5.99 |
| 162 |
583100801 |
BRKT.EXTEN.CHASSIS.LH.CRD This part replaces 532180382. Price: $48.99 |
| 163 |
583100901 |
BRKT.EXTEN.CHASSIS.RH.CRD This part replaces 532180383. Price: $43.99 |
| 164 |
532165605 |
SUPPORT Price: $59.99 |
| 165 |
532441516 |
COVER.BATT.CUPHOLDER.CRD This part replaces 532181100. Price: $17.99 |
| 170 |
532178862 |
NEEDS DESCRIPTION Price: Call Us |
| 171 |
596337801 |
Bolts This part replaces 872140620. Price: $4.99 |
| 172 |
596134901 |
GSPH This part replaces 819132016. Price: $2.99 |
| 173 |
873510600 |
NUT Price: $4.99 |
| 175 |
583707801 |
DOOR.TRAP.FBI.CRD.2004 This part replaces 532188203. Price: $17.99 |
| 179 |
583100601 |
ROD.PIVOT.FBI.CRD This part replaces 532188202. Price: $17.99 |
| 184 |
532174662 |
BRACKET.ACTUATOR.BAGGER.SRD Price: $4.99 |
| 185 |
532181101 |
Price: Call Us |
| 186 |
597000601 |
LATCH.ASM.MULCH/BAGGER This part replaces 532160793. Price: $5.99 |
| 187 |
596987401 |
Nuts This part replaces 532125004. Price: $2.99 |
| 188 |
819061216 |
WASHER Price: $3.99 |
| 189 |
810071000 |
LOCKWASHER #10 Price: $3.99 |
| 190 |
596039001 |
Screws This part replaces 871081010. Price: $2.99 |
| 198 |
532168937 |
NUT Price: $2.99 |
| 205 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 207 |
817670508 |
SCREW, 5/16-18 X 1/2 Price: $7.99 |
| 209 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 213 |
532177587 |
SKIRT GRILLE LH Price: $23.99 |
| 214 |
532177586 |
SKIRT GRILLE RH Price: $37.99 |
| 256 |
532181361 |
COVER FENDER CRD Price: $3.99 |
| 258 |
583125201 |
KIT.HARNESS/LIGHT ASM DUAL This part replaces 532161842. Price: $109.99 |
| 259 |
583125201 |
KIT.HARNESS/LIGHT ASM DUAL This part replaces 532161841. Price: $109.99 |
| 265 |
583146701 |
SEAL.SIDE.RH.BAGGER.CRD This part replaces 532185704. Price: $17.99 |
| 266 |
583146601 |
SIDE.SEAL.LH.BAGGER.CRD This part replaces 532185703. Price: $17.99 |
| 278 |
596321701 |
Screws This part replaces 532191611. Price: $2.99 |
