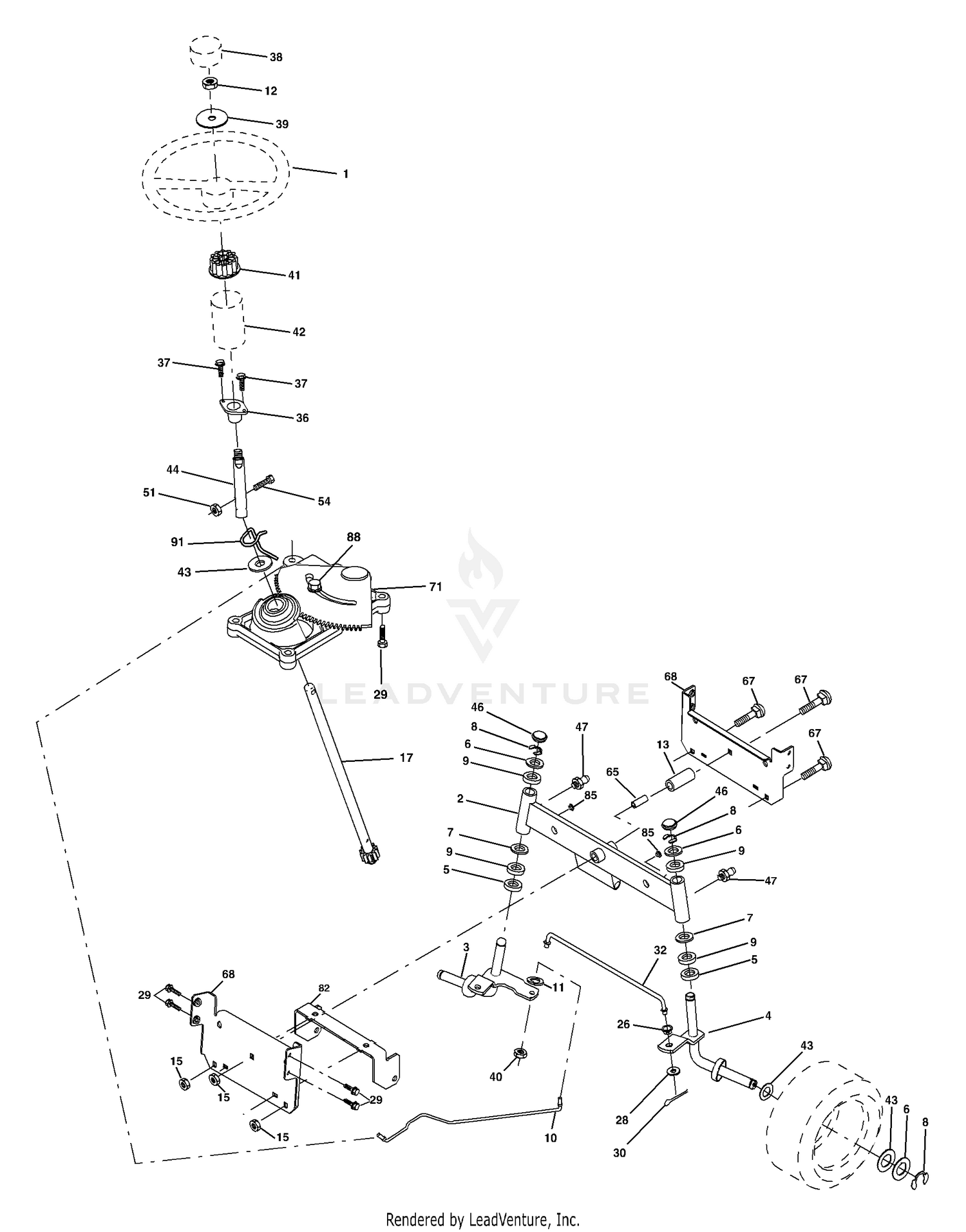

| Ref | Part Number | Description |
|---|
| 1 |
104-8601 |
DISCONTINUED Price: Call Us |
| 1 |
184704X428 |
Wheel Steering Price: Call Us |
| 2 |
104-8600 |
DISCONTINUED Price: Call Us |
| 2 |
175131 |
Axle Asm Cast Iron LT Price: Call Us |
| 3 |
169840 |
Spindle Asm LH Price: Call Us |
| 4 |
169839 |
Spindle Asm RH Price: Call Us |
| 5 |
104-0028 |
GUIDE-HOSE Price: $46.21 |
| 5 |
6266H |
Bearing Race Thrust Harden Price: Call Us |
| 6 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga Price: Call Us |
| 6 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 7 |
19272016 |
Washer 27/32 x 1-1/4 x 16 Ga Price: Call Us |
| 8 |
12000029 |
Ring Klip #t5304-75 Price: Call Us |
| 8 |
323-11 |
SCREW-HH Price: $1.08 |
| 9 |
3366R |
Bearing Col. Strg. Price: Call Us |
| 9 |
84-8320 |
INSERT-HINGE Price: $29.68 |
| 10 |
104-8602 |
CENTER LIFT ARM ASM Price: $649.23 |
| 10 |
175121 |
Link Drag Price: Call Us |
| 11 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 11 |
328-12 |
SCREW-HH Price: $9.77 |
| 12 |
256-115 |
WASHER-THRUST Price: $1.90 |
| 12 |
73940800 |
Nut Hex Jam Toplock 1/2-20 Unf Price: Call Us |
| 13 |
136518 |
Spacer Brg. Axle Front Price: Call Us |
| 13 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 15 |
145212 |
Nut Hex Flange Lock Price: Call Us |
| 15 |
98-7993 |
SCREW-HHF Price: $3.05 |
| 16 |
92-8754 |
DISCONTINUED Price: Call Us |
| 17 |
180641 |
Shaft Asm. Steering Price: Call Us |
| 18 |
3296-51 |
NUT-LOCK, NI Price: $3.23 |
| 19 |
110-0009 |
JOINT ARM ASM This part replaces 106-5437-03. Price: $199.32 |
| 20 |
104-9319 |
PIN-GROOVED Price: $6.58 |
| 21 |
323-12 |
SCREW-HH Price: $1.14 |
| 22 |
75-5410 |
BRACKET-ARM Price: $12.57 |
| 23 |
3296-44 |
NUT-LOCK, NI Price: $2.46 |
| 24 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 26 |
126847X |
Bushing Link Drag Price: Call Us |
| 26 |
92-9097 |
SCREW-HS Price: $1.56 |
| 27 |
75-4550-03 |
SHAFT-LIFT, CENTER Price: $259.44 |
| 28 |
19131416 |
Washer 13/32 x 7/8 x 16 Ga. Price: Call Us |
| 29 |
17060612 |
Screw 3/8-16 x .75 Price: Call Us |
| 30 |
76020412 |
Pin Cotter 1/8 x 3/4 Price: Call Us |
| 32 |
130465 |
Rod Tie Price: Call Us |
| 36 |
155099 |
Bushing Strg Price: Call Us |
| 37 |
152927 |
Screw Price: Call Us |
| 38 |
159946X428 |
Insert Cap Strg Wh Au Price: Call Us |
| 39 |
19182411 |
Washer Price: Call Us |
| 40 |
7810H |
Lock nut Price: Call Us |
| 41 |
159945 |
Adaptor Wheel Strg Price: Call Us |
| 42 |
145054X428 |
Boot Steering Dash Price: Call Us |
| 43 |
121749X |
Washer 25/32 x 1 1/4 x 16 Ga Price: Call Us |
| 44 |
180640 |
Extension Steering Shaft Price: Call Us |
| 46 |
121232X |
Cap Spindle Fr Top Blk Price: Call Us |
| 47 |
183226 |
Fitting Grease Price: Call Us |
| 51 |
73540400 |
Nut Crownlock 1/4-28 Price: Call Us |
| 54 |
71130420 |
Bolt Hex 1/4-28 Unf x 1-1/4 Gr. 8 Price: Call Us |
| 65 |
160367 |
Brace Axle Price: Call Us |
| 67 |
72140618 |
Bolt Rdhd Sq 3/8-16 Unc x 2-1/4 Price: Call Us |
| 68 |
169827 |
Axle, Brace Price: Call Us |
| 71 |
175146 |
Steering Asm. Price: Call Us |
| 82 |
169835 |
Bracket Susp. Chassis Front Price: Call Us |
| 85 |
133835 |
Fastner Christmas Tree Price: Call Us |
| 88 |
175118 |
Bolt Shoulder 7/16-20 Unc Price: Call Us |
