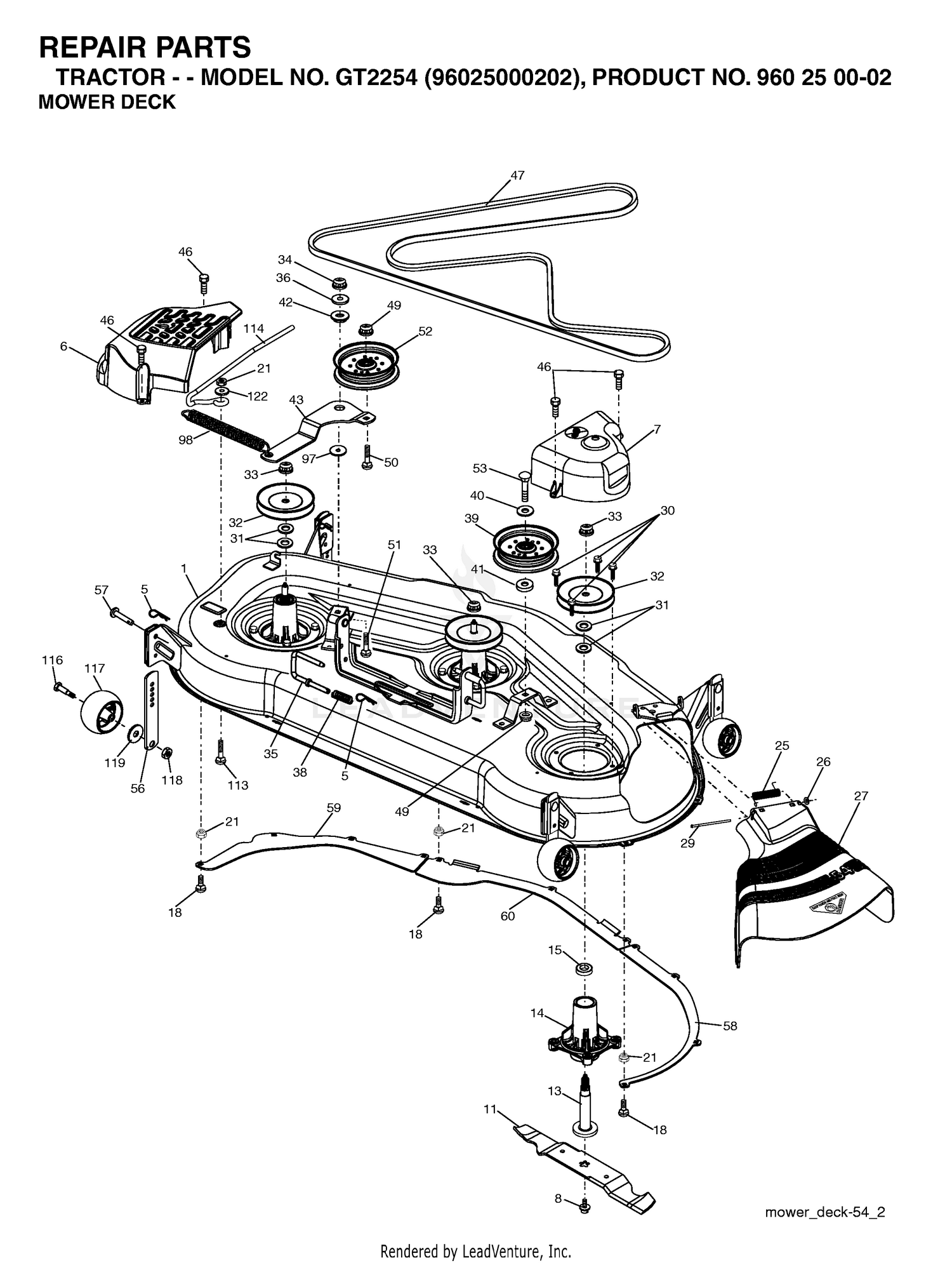

| Ref | Part Number | Description |
|---|
| 1 |
322-7 |
SCREW-HH Price: $0.89 |
| 1 |
532196498 |
DECK.SVC.54".4GWB.GREY This part replaces 532196838. Price: $499.99 |
| 2 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 3 |
13-6050 |
BUSHING Price: $300.98 |
| 4 |
13-6020-01 |
SHEAVE This part replaces 13-6020. Price: $748.39 |
| 5 |
3218-3 |
NUT-JAM Price: $0.25 |
| 5 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 6 |
3247-6 |
SCREW-SET Price: $1.02 |
| 6 |
532187297 |
COVER.MANDREL.LH.DECK.54" Price: $27.99 |
| 7 |
13-6110-01 |
SPROCKET Price: $843.65 |
| 7 |
532188187 |
COVER.MANDREL.RH.DECK.54" Price: $27.99 |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 This part replaces 532174365. Price: $6.99 |
| 8 |
94-7484 |
BEARING This part replaces 56-6250. Price: $152.51 |
| 9 |
3217-9 |
NUT-HH Price: $0.37 |
| 10 |
13-3720 |
SQUARE KEY Price: $8.42 |
| 11 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 12 |
325-6 |
SCREW-HH Price: $1.42 |
| 13 |
13-5910 |
SIDE DRIVE SHAFT Price: $246.00 |
| 13 |
597023501 |
MANDRELS This part replaces 532187291. Price: $24.99 |
| 14 |
5-0738 |
KEY Price: $13.57 |
| 14 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 15 |
13-6690 |
COUPLING HALF Price: $257.08 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 16 |
3247-3 |
SCREW-SET Price: $7.86 |
| 17 |
100-8165 |
DISCONTINUED Price: Call Us |
| 18 |
325-4 |
SCREW-HH Price: $0.95 |
| 18 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 19 |
42-1870-01 |
REAR UNIV. SHAFT Price: $1,132.32 |
| 20 |
2115-80 |
ZERK Price: $0.76 |
| 21 |
13-5900 |
FRONT DRIVE SHAFT Price: $308.62 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 22 |
251-246 |
COLLAR W/SET SCREWS Price: $12.82 |
| 23 |
3257-8 |
KEY-WOODRUFF Price: $4.56 |
| 24 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 25 |
42-2360 |
YOKE,TUBE & SLIP SLEEVE Price: $492.93 |
| 25 |
539107609 |
TORSION SPRING This part replaces 532178102. Price: $4.99 |
| 26 |
42-2370 |
YOKE & SHAFT Price: $896.93 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
532187257 |
DEFLECTOR.BLACK.54" This part replaces 532188938. Price: $64.99 |
| 27 |
72-7990 |
CROSS AND BEARING KIT This part replaces 2115-79. Price: $139.26 |
| 29 |
42-2310 |
YOKE *B Price: $123.37 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 30 |
2115-88 |
DISCONTINUED - SEE PB#753 Price: Call Us |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 31 |
108-2879 |
GUARD SET This part replaces 42-2380. Price: $633.86 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 32 |
532173436 |
PULLEY MANDREL Price: $14.99 |
| 32 |
92-1580 |
NYLON BRG REPAIR KIT Price: $26.79 |
| 33 |
42-2340 |
CENTRALIZER GUARD Price: $30.34 |
| 33 |
596134801 |
Nuts This part replaces 532178342. Price: $1.00 |
| 34 |
2115-85 |
ZERK Price: $4.38 |
| 34 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 35 |
532188635 |
PIN.SUSPENSION.REAR.54" Price: $21.99 |
| 35 |
92-1582 |
DECAL-SAFETY Price: $10.40 |
| 36 |
42-1860 |
FRT UNIV. SHAFT Price: $1,173.12 |
| 36 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 37 |
108-2879 |
GUARD SET This part replaces 42-2350. Price: $633.86 |
| 38 |
2115-94 |
YOKE Price: $260.15 |
| 38 |
532188657 |
SPRING COMPRESSION PULL Price: $4.99 |
| 39 |
325-5 |
SCREW-HH Price: $1.20 |
| 39 |
532187284 |
PULLEY.IDLER.STATIONARY Price: $49.99 |
| 40 |
283-46 |
CLEVIS PIN Price: $9.99 |
| 40 |
819132203 |
Washer 13/32 x 1-3/8 x 13 Ga. Price: $4.99 |
| 41 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 42 |
2115-81 |
YOKE Price: $451.36 |
| 42 |
532165723 |
SPACER.RETAINER.MOWER This part replaces 532122052. Price: $5.99 |
| 43 |
2115-76 |
CENTER PARTS KIT Price: $216.02 |
| 43 |
532196216 |
ARM.IDLER.54" Price: $129.99 |
| 44 |
42-1870-01 |
REAR UNIV. SHAFT This part replaces 42-2290. Price: $1,132.32 |
| 45 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 46 |
42-2300 |
YOKE & SHAFT ASM Price: $449.23 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 47 |
2115-78 |
LOCK RING Price: $6.57 |
| 47 |
584451901 |
V-BELT.54".HIGH-PERFORMANCE This part replaces 532191273. Price: $79.99 |
| 49 |
13-6680 |
CHAIN Price: $176.29 |
| 49 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 50 |
13-6670 |
CONNECTING PIN Price: $12.28 |
| 50 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 51 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 52 |
13-4570-01 |
IDLER SPROCKET This part replaces 13-4570. Price: $102.29 |
| 52 |
532188460 |
IDLER PULLEY Price: $43.99 |
| 53 |
13-4590 |
CHAIN Price: $450.55 |
| 53 |
596564404 |
Bolts This part replaces 874780636. Price: $2.99 |
| 55 |
325-12 |
SCREW-HH Price: $2.27 |
| 56 |
2710-29 |
LINK Price: $21.76 |
| 56 |
532155986 |
BAR.ADJUST.WHEEL.ANTI.SCALP.BL Price: $17.99 |
| 57 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 57 |
532156941 |
RIVET.PIN.HEAD.YELLOW. Price: $4.99 |
| 58 |
531168601 |
SERVICE KIT BAFFLE.RIGHT.54" This part replaces 532187342. Price: $12.99 |
| 58 |
92-1581 |
DECAL-SAFETY Price: $6.62 |
| 59 |
531168701 |
SERVICE KIT BAFFLE.LEFT.54" BA This part replaces 532187344. Price: $19.99 |
| 60 |
531168801 |
SERVICE KIT BAFFLE BAFFLE CENT This part replaces 532187607. Price: $19.99 |
| 97 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 98 |
532187282 |
SPRING.CLUTCH.DRIVE.54 Price: $11.99 |
| 113 |
596435701 |
Bolts This part replaces 872110508. Price: $2.99 |
| 114 |
532187556 |
ROD TENSION RELIEF Price: $17.99 |
| 116 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 117 |
589527301 |
WHEEL.GAUGE.RALLY This part replaces 532174873. Price: $8.99 |
| 118 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 119 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
| 122 |
532187557 |
BUSHING.RELIEF.TENSION Price: $7.99 |
