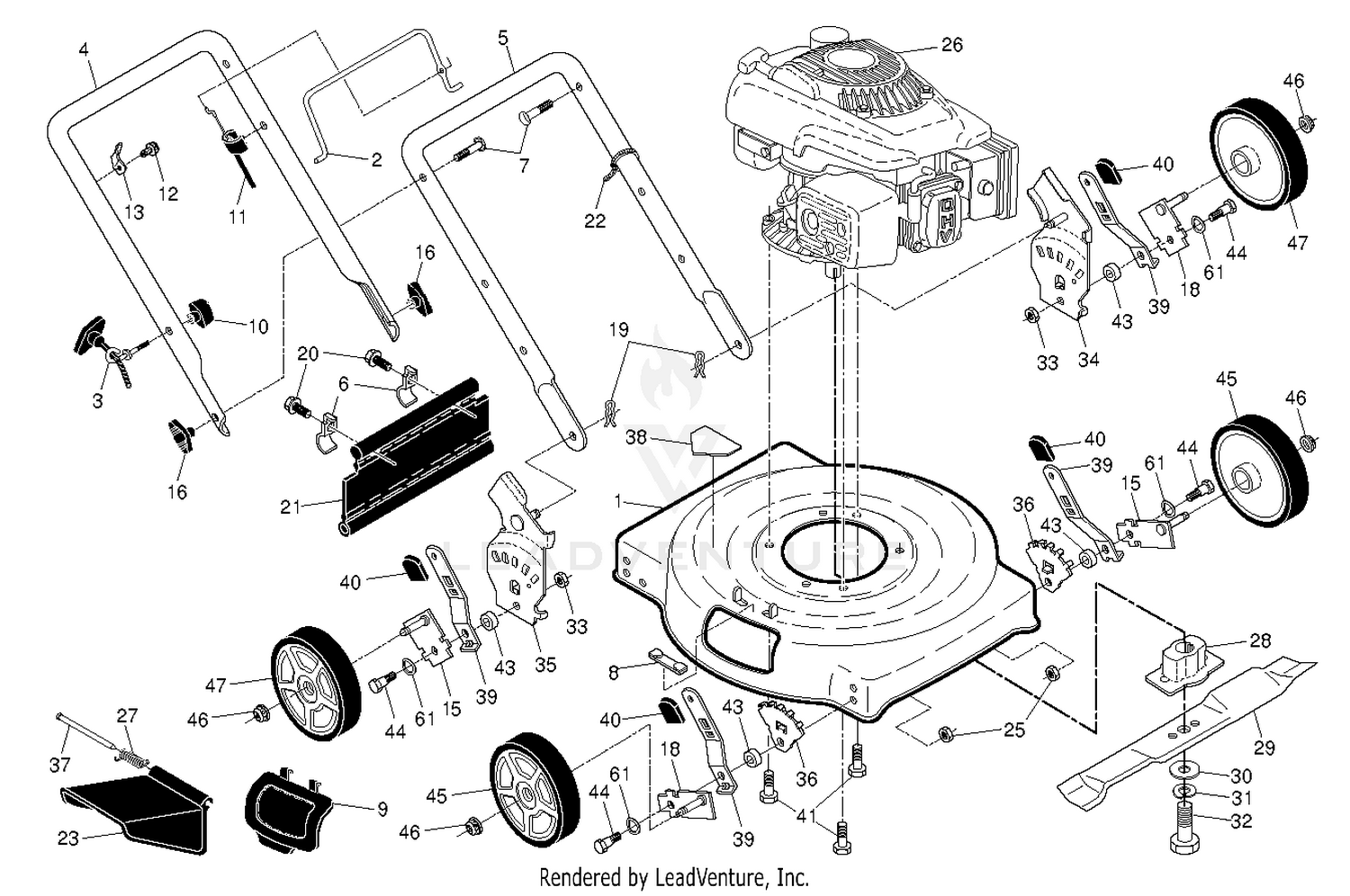

| Ref | Part Number | Description |
|---|
| 1 |
108-9083 |
PLATE-SIDE, RH Price: $328.36 |
| 2 |
108-9082 |
PLATE-SIDE, LH Price: $328.36 |
| 2 |
532196025 |
BAIL.CONT.D.STRAIGHT.PUSH.BLK Price: $7.99 |
| 3 |
104-3396 |
SCREW-HH Price: $0.75 |
| 3 |
581902101 |
GUIDE.ROPE.BLK.ZINC.CHROM Price: $1.99 |
| 4 |
532448263 |
HANDLE.UPPER.ECONOMY.BLACK Price: $22.99 |
| 4 |
99-8662 |
TUBE-SPRING Price: $21.55 |
| 5 |
3218-5 |
NUT-JAM Price: $0.27 |
| 5 |
532434514 |
HANDLE.LOWER.D-STRAIT.BLACK Price: $22.99 |
| 6 |
583843501 |
BRACKET.SKIRT.BZP Price: $1.99 |
| 6 |
87-7270 |
WASHER-THRUST Price: $0.89 |
| 7 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 7 |
532191574 |
BOLT, HANDLE 5/16-18X1.75 Price: $1.99 |
| 8 |
32128-40 |
NUT-FLANGE Price: $0.88 |
| 8 |
532161622 |
CLIP. CLOSEOUT Price: $9.99 |
| 9 |
110-4079 |
SPRING-COMPRESSION Price: $13.57 |
| 9 |
532160830 |
PLATE.MULCHER.22.ECON.BLACK Price: $4.99 |
| 10 |
581912601 |
T-KNOB.NEW ROPE GUIDE Price: $1.99 |
| 11 |
532440934 |
CABLE.MZR.RATO.22"LOW. Price: $11.99 |
| 12 |
110-4069 |
BRACKET Price: $5.57 |
| 12 |
532178848 |
SCREW Price: $3.99 |
| 13 |
115-2007 |
ROD-SPRING This part replaces 107-7437. Price: $34.97 |
| 13 |
532430034 |
BRACKET.UPSTOP.RT Price: $2.99 |
| 14 |
92-2762 |
PIN-HAIR Price: $1.09 |
| 15 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 16 |
532191938 |
KNOB, DEFLECTOR Price: $2.99 |
| 18 |
110-4058 |
BRACKET-CHAIN Price: $32.43 |
| 19 |
107-3258 |
FRAME Price: $331.61 |
| 19 |
532051793 |
HAIRPIN COTTER Price: $3.99 |
| 20 |
107-2979 |
BOLT-SHOULDER Price: $3.94 |
| 20 |
817021008 |
Screw, Hex Hd. Tap #10-24 x 1/2 (AYP part number) This part replaces 532750097. Price: $1.99 |
| 21 |
3234-19 |
SCREW-HHF Price: $1.73 |
| 21 |
532413160 |
SKIRT.REAR.22RD/SD.FO/VE Price: $8.99 |
| 22 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $3.99 |
| 22 |
67-9410 |
WASHER Price: $2.04 |
| 23 |
108-4279 |
SPACER-FRAME Price: $8.34 |
| 23 |
532160831 |
GUARD.DISCHARGE.22". Price: $6.99 |
| 24 |
108-4284 |
TUBE-SUPPORT Price: $60.29 |
| 25 |
107-7433 |
CARRIER FRAME ASM Price: $484.72 |
| 25 |
532426589 |
NUT.FLANGE.HEX.5/16X18.BLACK Price: $2.99 |
| 27 |
532408585 |
SPRING.HINGE Price: $6.99 |
| 28 |
532418373 |
ADAPTER.BLADE.W/KEY.25MM.CE Price: $7.99 |
| 29 |
532406713 |
BLADE.22.MULCH.STANDARD Price: $11.99 |
| 30 |
532851074 |
WASHER,HARDEN Price: $2.99 |
| 31 |
539990118 |
SLW 3/8 STD This part replaces 532850263. Price: $1.99 |
| 32 |
583116901 |
BOLT.3/8-24X1.25 GR8 This part replaces 532181712. Price: $3.99 |
| 33 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 36 |
532407494 |
BRACKET ADJ. 5 POS ADS This part replaces 532410594. Price: $2.99 |
| 37 |
532160833 |
HINGE ROD Price: $2.99 |
| 38 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532404763. Price: $4.99 |
| 39 |
532401621 |
SPRING.SELECTOR.5POS.BZP This part replaces 532406428. Price: $3.99 |
| 40 |
532087877 |
KNOB PM Price: $2.99 |
| 41 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $3.99 |
| 43 |
532401629 |
SPACER.HEIGHT.ADJUSTER Price: $2.99 |
| 44 |
532401638 |
SHOULDER BOLT 5/16-18 Price: $2.99 |
| 45 |
532430501 |
WHEEL.7X1.75.5SPK.BRK.BLACK Price: $11.99 |
| 46 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT Price: $2.99 |
| 47 |
583717501 |
WHEEL 8X1.75 5SPK.RAD.3 BLK.1 This part replaces 532435280. Price: $14.99 |
| 61 |
532401630 |
WASHER.CURVED.CYLINDRICAL Price: $2.99 |
