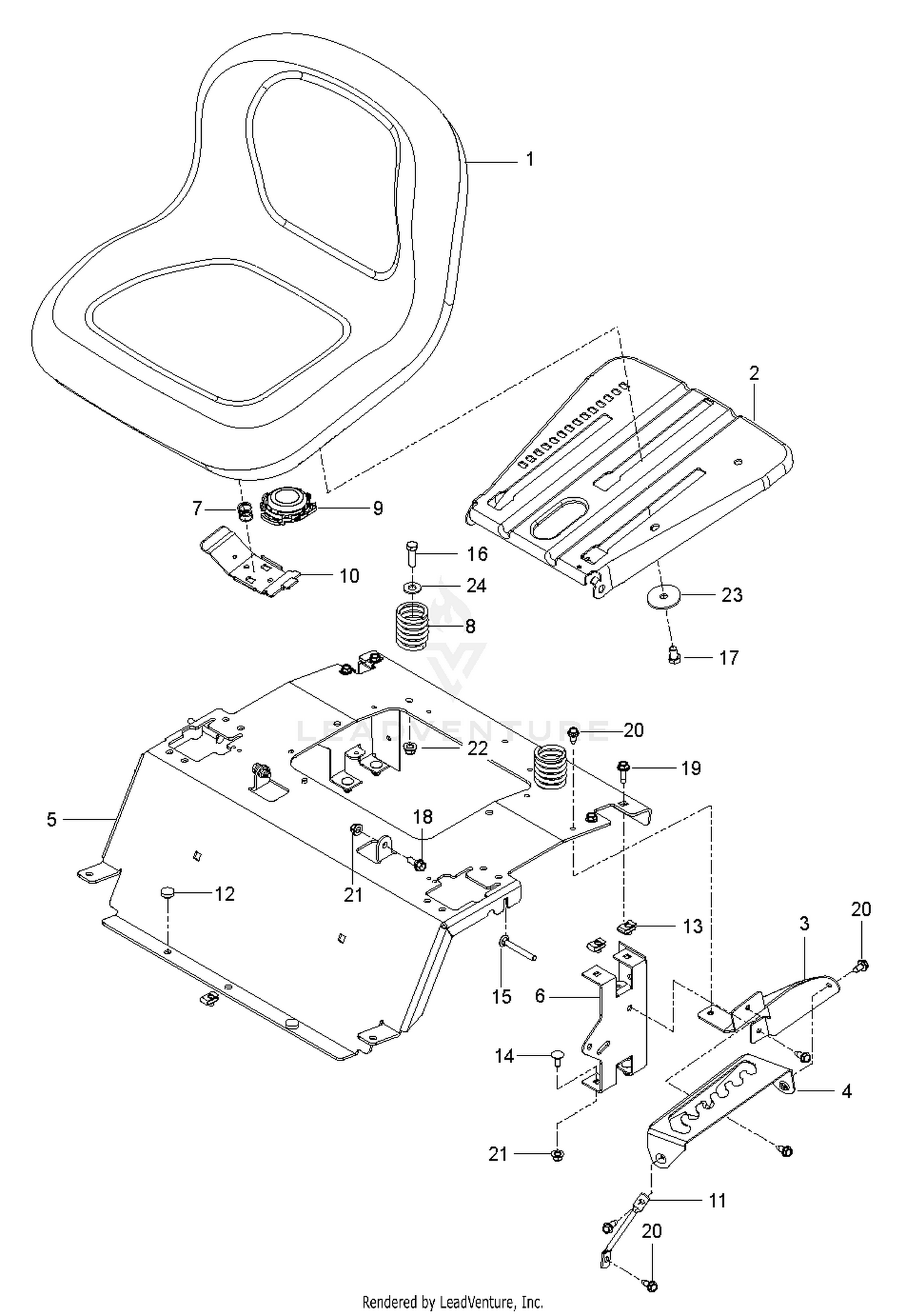

| Ref | Part Number | Description |
|---|
| 1 |
27-4720 |
SHAFT-PIVOT, SEAT Price: $32.27 |
| 1 |
532439822 |
SEAT.TH150.MS498.GRY.HUSQ.TEX Price: $159.99 |
| 2 |
596768801 |
KIT.PLATE.SEAT This part replaces 587232002. Price: $49.99 |
| 2 |
67-9860 |
DISCONTINUED Price: Call Us |
| 3 |
586220802 |
PLATE.SUPPORT.DECK.LIFT.X431 Price: $14.99 |
| 3 |
67-9210 |
SPACER Price: $10.02 |
| 4 |
322-10 |
SCREW-HH Price: $0.70 |
| 4 |
586221202 |
PLATE.DECK.LIFT.X431 Price: $14.99 |
| 5 |
283-76 |
PIN-LYNCH Price: $6.67 |
| 5 |
589761211 |
PLATE SEAT SUPPORT; RZ ORANGE This part replaces 577260503. Price: $109.99 |
| 6 |
37-9580 |
DISCONTINUED Price: Call Us |
| 6 |
580308202 |
SUPPORT REAR SEAT BLACK Price: $19.99 |
| 7 |
27-9870 |
PIN-SWITCH, SEAT Price: $31.55 |
| 7 |
532198200 |
SPRING.LATCH.SEAT.TEX Price: $3.99 |
| 8 |
3220-2 |
NUT-JAM Price: $0.50 |
| 8 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK Price: $5.99 |
| 9 |
3253-24 |
WASHER-LOCK/SP Price: $0.37 |
| 9 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 10 |
2411-33 |
BALLJOINT-RH (W/GROMMET) This part replaces 37-9570. Price: $24.45 |
| 10 |
595088102 |
Handles This part replaces 532197661. Price: $4.99 |
| 11 |
323-14 |
SCREW-HH Price: $1.34 |
| 11 |
586428601 |
SUPPORT.LEG.DECK.LIFT Price: $5.99 |
| 12 |
585989301 |
GROMMET.BUMPER Price: $3.99 |
| 13 |
32128-21 |
NUT-HF Price: $0.39 |
| 13 |
539104763 |
U-CLIP 5/16-18 NUT RETAINER Price: $4.99 |
| 14 |
32121-4 |
PIN-ROLL, SLOTTED Price: $3.49 |
| 14 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 15 |
37-9590 |
DISCONTINUED Price: Call Us |
| 15 |
510422702 |
Screws This part replaces 510422701. Price: $1.99 |
| 16 |
71-4490 |
SEAT SUPT BRKT WA *R Price: $142.74 |
| 16 |
874760620 |
BOLT This part replaces 874780620. Price: $4.99 |
| 17 |
32153-3 |
NUT-HEX, SIDE DEFORM This part replaces 32146-5. Price: $5.59 |
| 17 |
539108503 |
HCS 3/8-16 X 5/8 GR 5 ZD Price: $3.99 |
| 18 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 18 |
596240701 |
Bolts This part replaces 539110303. Price: $3.99 |
| 19 |
3217-6 |
NUT-HEX Price: $1.19 |
| 19 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 20 |
322-4 |
SCREW-HH Price: $0.35 |
| 20 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 21 |
28-6180 |
PIN-PEDAL Price: $5.05 |
| 21 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 23 |
596917301 |
Washers This part replaces 539111897. Price: $4.99 |
| 24 |
501051801 |
WASHER.WINGED.3/8ID.1.5OD Price: $3.99 |
| 582384601 |
KIT.ARMREST.15"TEX.SEAT |
This part replaces 532421499. Price: $59.99 582384601 |
