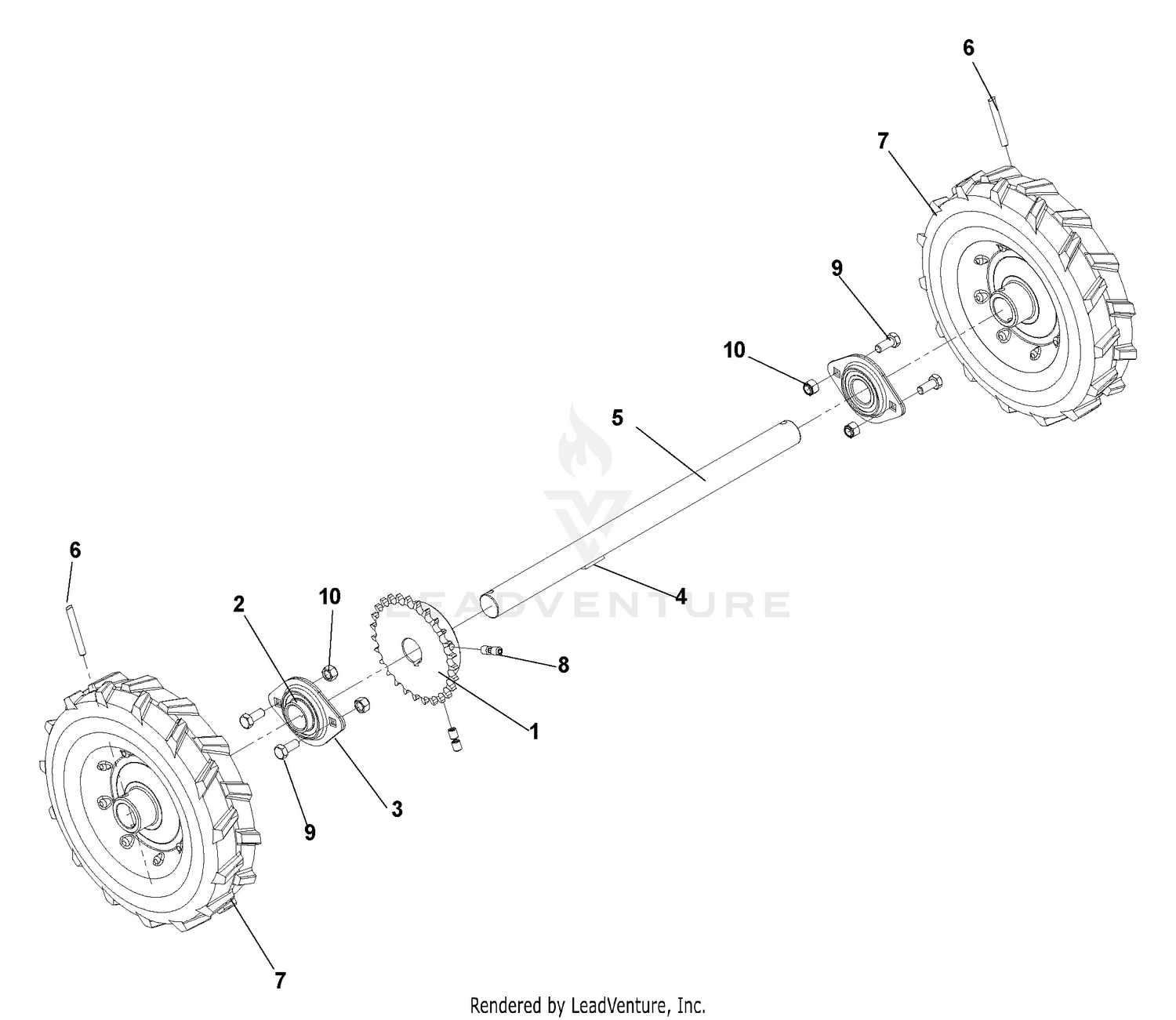

| Ref | Part Number | Description |
|---|
| 1 |
539000303 |
SPROCKET W/KEY, ROTOR 27 TEETH Price: $99.99 |
| 1 |
66-8120 |
PIPE-STAND Price: $36.87 |
| 2 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 2 |
539000317 |
BRG 1" W/LOCKING COLLAR Price: $46.99 |
| 3 |
46-6550 |
FITTING-ELBOW, 90 DEG Price: $37.39 |
| 3 |
539000318 |
FLANGE BEARING ZINC PLATED 1" Price: $8.99 |
| 4 |
32122-24 |
SCREW-PTH Price: $0.27 |
| 4 |
539105308 |
KEY 1/4 SQ X 1.0 Price: $3.99 |
| 5 |
3253-15 |
WASHER-LOCK Price: $1.49 |
| 5 |
539112823 |
AXLE SC18A Price: $64.99 |
| 6 |
539113453 |
SPIRAL PIN 1/4 X 1-1/2 Price: $3.99 |
| 6 |
63-7640 |
SENDER-FUEL Price: $94.22 |
| 7 |
110-3257 |
HOSE-FUEL This part replaces 63-7630. Price: $17.26 |
| 7 |
539003123 |
KIT WHEEL 10" W/HARDWARE Price: $219.99 |
| 8 |
322-3 |
SCREW-HH Price: $0.79 |
| 8 |
539976956 |
SET SCREW 5/16 NYLOC Price: $2.99 |
| 9 |
2412-147 |
CLAMP-R Price: $2.51 |
| 9 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 539990206. Price: $3.99 |
| 10 |
32128-20 |
NUT-HF Price: $0.99 |
| 11 |
93-3102 |
CAP-FUEL Price: $24.02 |
| 12 |
237-136 |
GROMMET Price: $3.52 |
| 13 |
3253-8 |
WASHER-LOCK Price: $0.47 |
| 14 |
3256-67 |
WASHER Price: $0.49 |
| 15 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 16 |
321-5 |
SCREW-HH Price: $0.22 |
| 17 |
3296-48 |
NUT-LOCK, NI Price: $0.37 |
| 18 |
231-101 |
TIRE (23X8.5-12) 4-PLY TURF SAVER Price: $147.85 |
| 19 |
217-117 |
WHEEL Price: $164.56 |
| 20 |
23-7270 |
NUT-LUG Price: $10.37 |
| 21 |
5108 |
VALVE This part replaces 232-27. Price: $6.29 |
| 22 |
32121-71 |
PIN-SPRING Price: $0.61 |
| 23 |
32121-49 |
PIN-ROLL Price: $2.37 |
| 24 |
42-6080 |
SHIM-AXLE Price: $29.45 |
| 25 |
92-9788 |
PIVOT PIN ASM Price: $32.55 |
| 26 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 27 |
324-5 |
SCREW-HH Price: $0.54 |
| 31 |
92-9786-03 |
CARRIER BRACKET This part replaces 92-9786. Price: $106.42 |
| 32 |
3219-6 |
NUT-HEX Price: $2.78 |
| 33 |
3272-17 |
PIN-COTTER Price: $1.79 |
| 34 |
92-2377-03 |
FRONT AXLE ASM This part replaces 92-2377. Price: $4,787.10 |
| 35 |
3273-38 |
SCREW-HSH Price: $6.65 |
| 36 |
66-3060 |
DISCONTINUED Price: Call Us |
| 37 |
304-46 |
DRAINCOCK Price: $7.55 |
| 38 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 39 |
62-7650 |
GASKET Price: $4.28 |
| 40 |
92-8873 |
TANK - FUEL (DIESEL) Price: $387.63 |
| 41 |
46-6560 |
BUSHING Price: $2.94 |
