Home / OPE / Riding Products / 30659, LT-F3000 Heavy-Duty Triple Turf Flail Mower, (SN 405250001-405500000) / Engine and Muffler Assembly

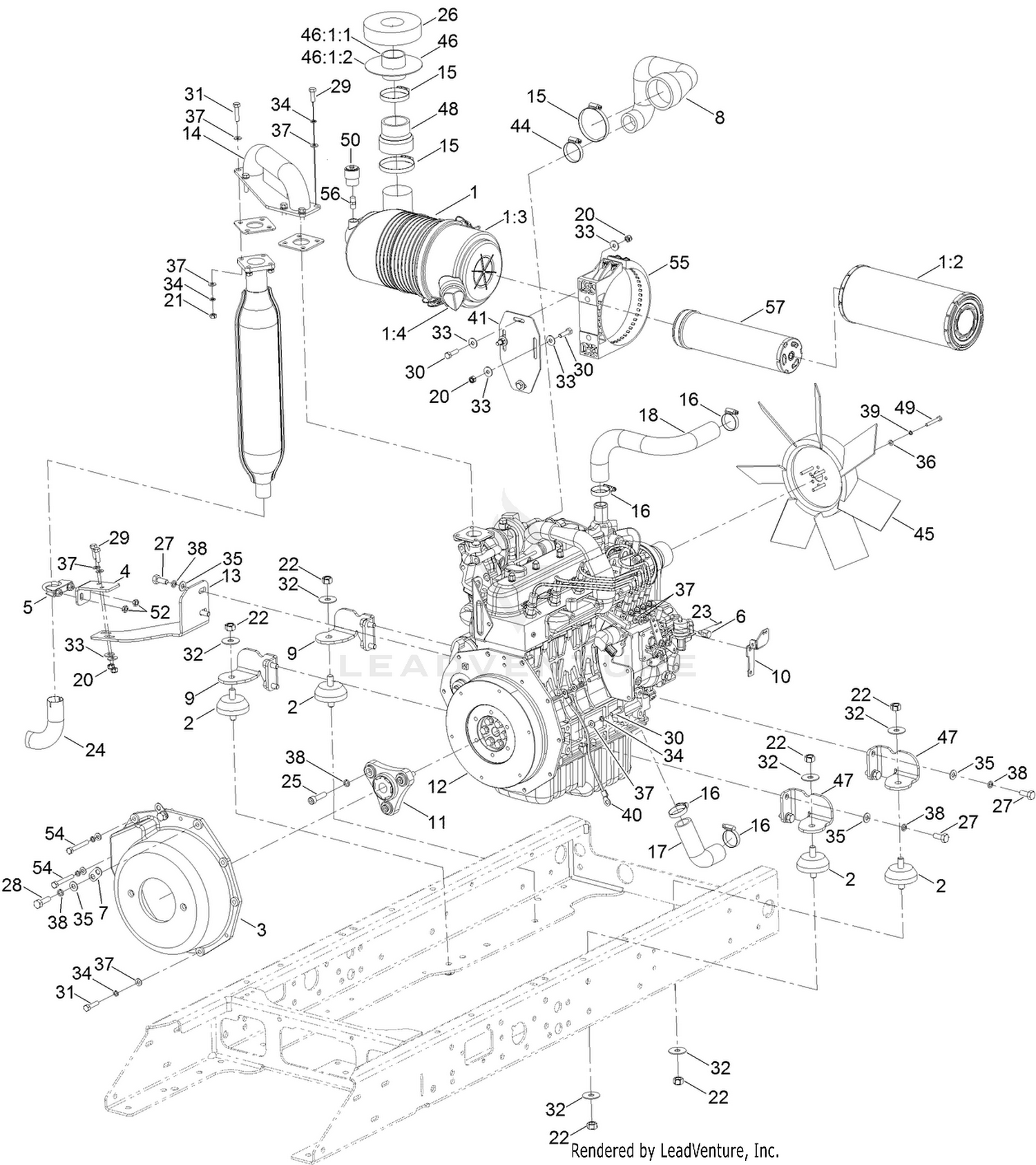

Engine and Muffler Assembly

Engine and Muffler Assembly

Parts (51)

RefPart NumberDescription
1 110-8917 AIR CLEANER ASM Price: $188.15
2 910816 ISOMOUNT - ENGINE Price: $54.56
3 922851 HOUSING-BELL Price: $469.01
4 111-9825-03 BRACKET-EXHAUST, LOWER Price: $8.37
5 111-9717 CLAMP-EXHAUST Price: $6.30
6 111-3298 BOSS THROTTLE PIVOT Price: $25.34
7 74-01-327 BRACKET LOOM TIE Price: $10.83
8 111-8478 HOSE-INLET, TURBO Price: $62.62
9 111-3043-03 BRACKET ENGINE MOUNT Price: $21.30
10 111-3299-03 BRACKET THROTTLE Price: $26.15
11 111-2556 COUPLING Price: $77.40
12 111-7496 ENGINE-KUBOTA Price: $4,021.26
13 111-9824-03 BRACKET-EXHAUST, LOWER Price: $33.60
14 111-8413 FLANGE, EXHAUST Price: $241.61
15 65-07-042 HOSE CLIP(58-75MM DIA) Price: $2.81
16 924438 CLAMP-HOSE Price: $3.14
17 111-8256 HOSE-RADIATOR, BOTTOM Price: $41.10
18 910921 HOSE - UPPER RADIATOR Price: $71.50
20 09441 NUT M8 NYL INSERT T TYPE Price: $1.39
21 ZNH1H000U HEX.NUT M8 Price: $1.40
22 09231 NUT-HEX Price: $3.07
23 70-07-107 SPLIT PIN 0 2,5*16 Price: $1.35
24 940213 PIPE - EXHAUST TAIL Price: $48.27
25 111-3806 SCREW-HSH Price: $2.81
26 111-9177 PAD-INTAKE, AIR Price: $10.63
27 50-11-005 SET SCW.M10*1.25P*25LG Price: $3.19
28 111-0597 SETSCREW M10*35*1.25 FINEPITCH Price: $1.41
29 03162 STEEL BOLT Price: $1.39
30 09369 SETSCREW M8 X 30 Price: $1.40
31 ZDH1H035U SETSCREW HEX HD M8X35 Price: $1.36
32 09283 WASHER Price: $1.40
33 09267 WASHER 5/16 X 7/8 X 15G GALV Price: $1.39
34 03469 WASHER M8 SC SPRING Price: $1.40
35 ZWQ1J000U PLAIN HEAVY WASHER M10 Price: $1.38
36 ZWP1F000U PLAIN WASHER M6 Price: $1.40
37 ZWP1H000U WASHER (M8) Price: $1.40
38 09480 WASHER M10 SC SPRING Price: $1.36
39 09474 WASHER M6 SC SPRING Price: $1.34
40 70-09-023 EARTH CABLE Price: $10.21
41 111-8416-03 BRACKET AIR CLEANER Price: $7.21
44 924437 CLAMP-HOSE Price: $13.31
45 110-8852 FAN-COOLING Price: $353.54
46 111-9176-03 AIR INTAKE ASM Price: $39.67
47 111-7141-03 BRACKET-MOUNT, ENGINE Price: $113.05
48 111-9156 REDUCER, INTAKE-AIR Price: $31.75
49 09568 BOLT M6X45 HEX HD GD 8.8 PLTD Price: $1.34
50 93-9164 INDICATOR-MINI Price: $55.24
52 ZNB1H000U NUT Price: $1.42
54 09371 BOLT M8 X 60 Price: $1.34
55 111-5017 STRAP-CLEANER, AIR Price: $39.49
56 94-1416 ADAPTER-INDICATOR Price: $11.87
