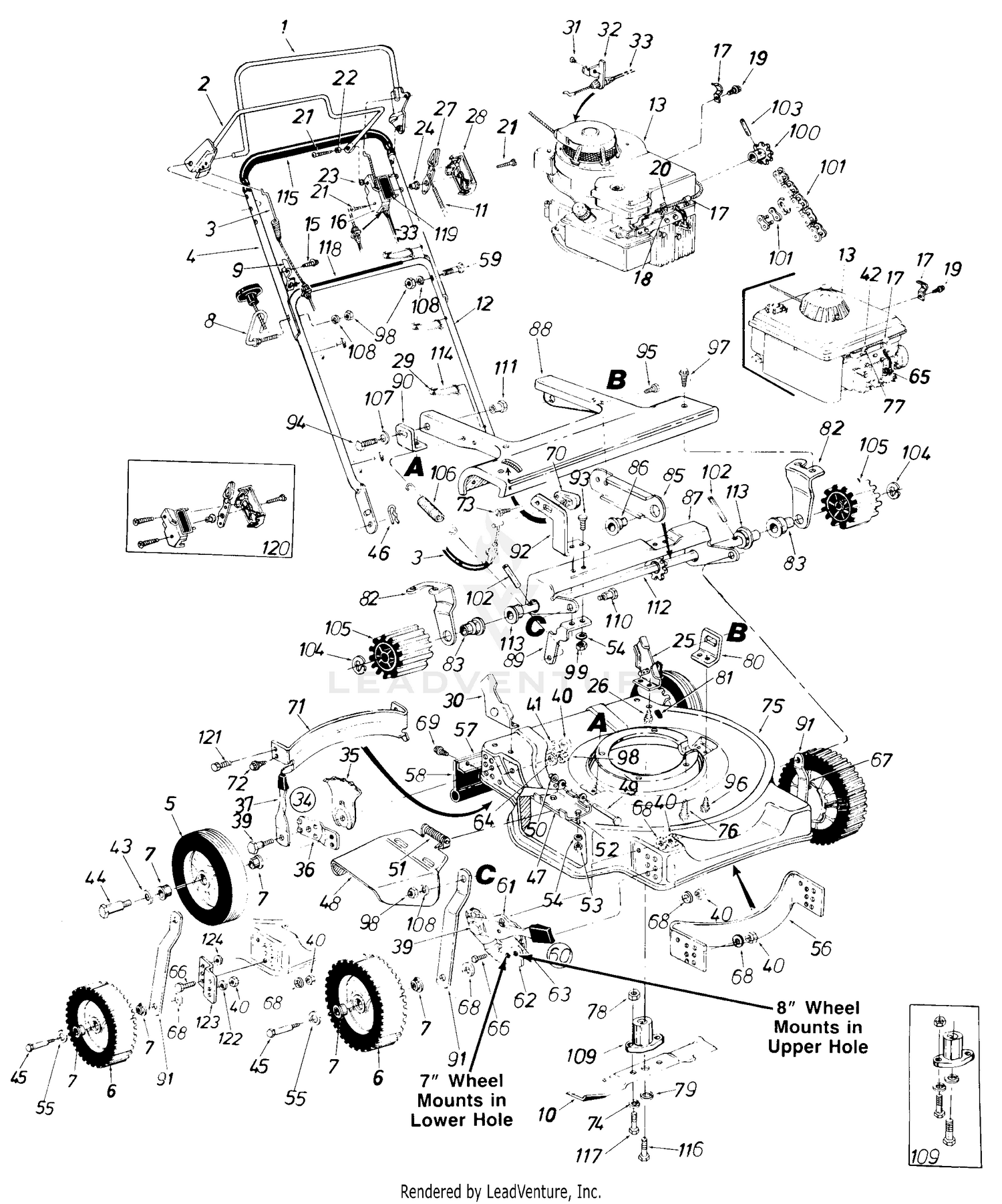

Home / OPE / *MTD Legacy 1985-2005 / Lawnflite / 12-Self-Propelled Walk-Behind Mowers / 1986 Models / MTD Lawnflite 126-262-316 / Parts

Parts

Parts

Parts (102)

RefPart NumberDescription
1 14321 CONTROL HANDIE ASS'Y.-L.H. Not Available Price:
2 16391 HANDLE ASSEMBLY Not Available Price:
3 746-0600 CLUTCH CABLE Not Available Price:
4 749-0536 UPPER HANDLE Not Available Price:
5 N/A Rear Wheel Ass'y. Comp.
6 734-0843 FRONT WHEEL-SMOOTH TREAD Not Available Price:
7 741-0262 Flange Brg. 1/2" I.D. Price: $7.26
8 710-0842 OPE GUIDE BOLT Not Available Price:
9 16309A CABLE BRACKET MOUNTING Not Available This part replaces 16309. Price:
11 946-0674A Throttle Wire-58" Lg. Not Available This part replaces 746-0633. Price:
12 749-0928A-0637 Lower Handle This part replaces 749-0373. Price: $29.67
13 N/A Engine
15 710-0726 Hex AB-Tap Scr. 5/16-18 x 314 Price: $3.82
16 731-0816 CIUTCH PANEL HALF Not Available Price:
17 12894 CABLE CLAMP Not Available Price:
18 710-0227 Hex AB-Tap Scr. #8 x .50 Lg. Price: $3.90
19 910-0429 Hex B-Tap Scr. #10 x .38" This part replaces 710-0429. Price: $3.20
20 751-0369 CLAMP-CONDUIT Not Available Price:
21 710-0796 Truss Hd. B-Tap Scr. #12 x 1.5" Lg. Price: $4.75
22 750-0649 SPACER Not Available Price:
23 736-0370 SPRING WASHER Not Available Price:
24 731-0524 CONROL DISC PIN Not Available Price:
25 12935 BRACKET AS Not Available Price:
26 710-0603 Hex B-Tap Scr. 5/16-18 x .50" Price: $4.19
27 931-0972 Throttle Control Lever This part replaces 731-0528. Price: $8.84
28 731-0817 PANEL Not Available Price:
29 725-0157 Cable Tie This part replaces 726-0241. Price: $3.46
30 12936 BRACKET ASSY-HDLE Not Available Price:
31 728-0171 RIVET Not Available Price:
32 14924 BRACKET-CA Not Available Price:
33 946-0477A CONTROL CABLE Not Available This part replaces 746-0477. Price:
40 712-0798 Hex Nut 3/8-16 Thd.* Price: $3.86
41 936-0356 BELL WASHER Not Available This part replaces 736-0356. Price:
42 751-0442 CASING CLAMP Not Available Price:
43 736-0105 Bell-Wash. .40 I.D. x .88 O.D. x .06 Price: $3.96
46 714-0104 Int. Cot. Pin 5/16 Dia. Price: $3.90
47 11130 ADAPTER PLATE Not Available Price:
48 931-1034B CHUTE DEFLECTOR Not Available This part replaces 14944. Price:
49 711-0555 PIVOT PIN Not Available Price:
50 726-0106 PUSH NUT This part replaces 7260106. Price: $3.37
51 732-0253 TORSION SPRING Not Available Price:
52 910-0289 Hex Bolt 1/4-20 x .50" Lg. This part replaces 710-0289. Price: $3.15
53 912-0287 HEX NUT 1/4-20 Not Available This part replaces 7120287. Price:
54 936-0329 L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90
55 736-0192 Fl-Wash. .531 I.D. x .93 O.D. x .090 Price: $3.75
56 16328 Front Baffle Price: Call Us
57 14846 RETAINER STRIP Not Available Price:
58 731-0794 FLAP ASSEMBLY Not Available Price:
59 710-1174 Carriage Bolt 5/16-18 x 2 This part replaces 710-0405. Price: $6.28
64 736-0242 Bell-Wash. .345 I.D. x .88 O.D. Price: $3.75
65 735-0639 INSULATOR-SPARK PLUG Not Available Price:
66 710-0216 Hex Bolt 3/8-16 x .75 Price: $3.93
68 736-0105 Bell-Wash. .400 I.D. x .88 O.D. x .060 Price: $3.96
69 710-0896 Hex Screw, 1/4-14 x 0.625" This part replaces 710-0776. Price: $3.86
70 946-0605 Barrel Cable Hold Down This part replaces 746-0605. Price: $3.94
71 16414 BAFFLE-20 Not Available Price:
72 710-0351 Truss Mach. Scr #10 x .50 Price: $3.90
73 710-0919 Hex B-Ta Scr. #10 x .44" Lg. Price: $3.95
74 936-0119 Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29
76 710-0654A TT Screw, 3/8-16 x 1.00 This part replaces 710-0654. Price: $3.75
77 710-0651 Hex Wash. Hd. Self-Tap Scr. This part replaces 710-0436. Price: $3.15
78 912-3057 Hex Nut 5/16-24 Thd. This part replaces 712-0123. Price: $5.94
79 736-0217 L-Wash. 3/8" I.D.-H.D. Price: $3.86
80 14759 BRACKET-PIVOT LH Not Available Price:
81 731-0564 PLUG Not Available Price:
82 14757 BRACKET-AX Not Available Price:
83 941-0180 BALL BEARING Not Available This part replaces 741-0180. Price:
85 14877 Brg. Support Price: Call Us
86 941-0180 BALL BEARING Not Available This part replaces 741-0180. Price:
87 16332 CAM Not Available Price:
88 16528 Front Pinion-Pivot Cover Price: Call Us
89 16530 Spring Mtg. Brkt. Price: Call Us
90 16531 PIVOT BRACKET Not Available Price:
91 16532 LINK-5.3 LG Not Available Price:
92 16535 Engage. Arm-R.H. Price: Call Us
93 710-0134 Carr. Bolt 1/4-20 x .62 Lg. Price: $3.71
94 710-0168 Hex Bolt 3/8-16 x .50 Lg. Price: $3.38
95 710-0352 Hex B-Tap Scr. 1/4 x .38 Lg. Price: $4.05
96 710-0896 Hex Screw, 1/4-14 x 0.625" This part replaces 710-0776. Price: $3.86
97 710-0892 SCREW 1/4-14 x .625 Not Available Price:
98 712-3010 HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89
99 912-0287 HEX NUT 1/4-20 Not Available This part replaces 7120287. Price:
100 713-0308 SPROCKET-10T Not Available Price:
102 915-0246 Roll Pin 3/16 x 1.25" Not Available This part replaces 715-0246. Price:
103 715-0247 SPRING PIN Not Available Price:
104 916-0104 E-RING FOR .500 This part replaces 716-0104. Price: $3.37
105 931-0393 DRIVE PINION Not Available This part replaces 731-0393. Price:
106 732-0428B Spring, extension, .50 Od x 4.35 This part replaces 732-0428. Price: $10.47
107 736-0105 Bell-Wash. .400 I.D. x .88 O.D. x .060 Price: $3.96
108 936-0119 Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29
109 753-0348 Blade Adapter Kit Price: Call Us
110 938-0155 Shoulder Bolt This part replaces 738-0155. Price: $6.01
111 938-0529 Shoulder Nut.825 x .165 Lg. This part replaces 738-0529. Price: $9.85
112 738-0530 PINION SHAFT Not Available Price:
113 941-0484 BALL BEARING This part replaces 741-0484. Price: $6.87
114 725-0157 Cable Tie Price: $3.46
115 718-0145 Grip Price: Call Us
116 710-0331 Hex Bolt 3/8-24 x 2.25" Lg. Price: $6.01
118 777-5776 LABEL Price: Call Us
119 777-5773 LABEL - THROTTLE CONTROL Price: Call Us
120 753-0430 CONTROL HOUSING COMP. Not Available Price:
121 710-0118 Hex Bolt 5/16-18 x .75" Lg. Price: $3.76
