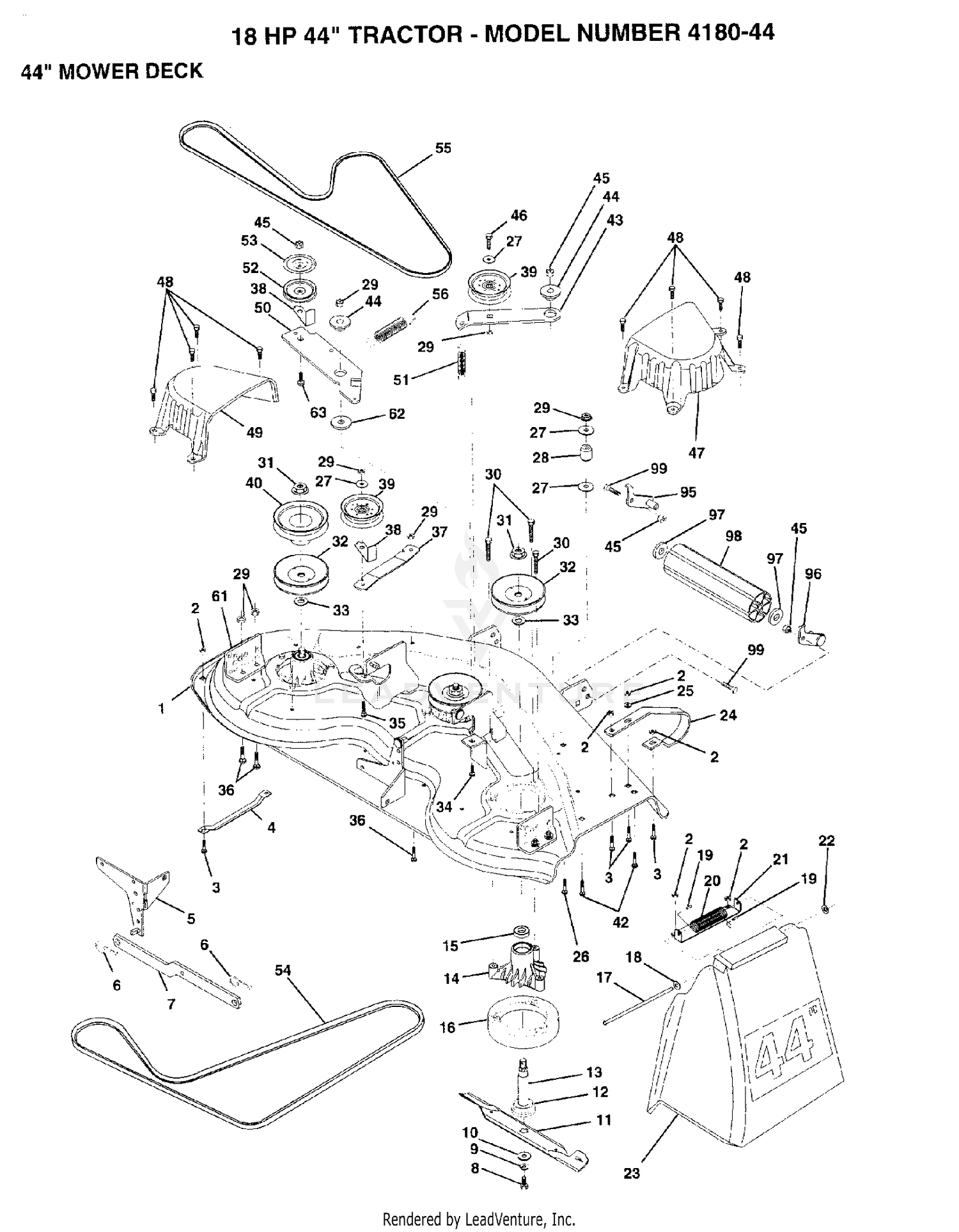

| Ref | Part Number | Description |
|---|
| 1 |
TBD |
Price: Call Us |
| 1 |
X-25-53 |
Washer Price: Call Us |
| 2 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK Price: $2.99 |
| 2 |
X-132-2 |
Screw-H.C. Price: Call Us |
| 3 |
872110506 |
BOLT.5/16-18. Price: $3.99 |
| 3 |
X-132-6 |
Screw Price: Call Us |
| 4 |
235652 |
BaffLe side air Price: Call Us |
| 4 |
532007631 |
RUNNER LH Price: $11.99 |
| 5 |
236676 |
Baffle cylinder Price: Call Us |
| 5 |
532138457 |
BRACKET SWAY BAR Price: $8.99 |
| 6 |
236865 |
Housing, Blower Price: Call Us |
| 6 |
532085902 |
RETAINER SPRING This part replaces 532004939. Price: $1.99 |
| 7 |
532178024 |
BAR SWAY DECK This part replaces 532130832. Price: $5.99 |
| 8 |
532850857 |
BLADE BOLT Price: $1.99 |
| 9 |
539990118 |
SLW 3/8 STD This part replaces 810030600. Price: $1.99 |
| 10 |
532140296 |
WASHER.BLADE Price: $2.99 |
| 12 |
532129895 |
BEARING.BALL.#6204.(MANDREL) Price: $6.99 |
| 13 |
532137553 |
SHAFT.ASM.W/BEARING Price: $22.99 |
| 14 |
532137152 |
HOUSING.MANDREL Price: $24.99 |
| 15 |
532110485 |
BEARING Price: $7.99 |
| 16 |
532174493 |
STRIPPER.MANDREL.ROUND.BLACK This part replaces 532136929. Price: $3.99 |
| 17 |
532106735 |
ROD-HINGE T Price: $4.99 |
| 18 |
819111016 |
WASHER Price: $5.99 |
| 19 |
532105304 |
CAP-SLEEVE LT Price: $2.99 |
| 20 |
532123713 |
SPRING TORSION This part replaces 532106734. Price: $3.99 |
| 21 |
532137607 |
BRACKET, DEFLECTOR Price: $3.99 |
| 22 |
532110452 |
NUT PUSH M Price: $1.99 |
| 23 |
532109785 |
DEFLECTOR SHIELD Price: $22.99 |
| 24 |
532136321 |
Runner, RH (AYP part number) This part replaces 532124950. Price: $6.99 |
| 25 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111216. Price: $2.99 |
| 26 |
872110614 |
BOLT Price: $3.99 |
| 27 |
819131316 |
WASHER Price: $2.99 |
| 28 |
532132823 |
IDLER SPRING SPACER Price: $4.99 |
| 29 |
873680600 |
LOCKNUT This part replaces 532062336. Price: $1.99 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532138776. Price: $1.99 |
| 31 |
532139729 |
KIT.NUT.FLANGE This part replaces 532137266. Price: $4.99 |
| 32 |
532129861 |
Pulley Mandrel 42" (AYP part number) Price: $17.99 |
| 33 |
532187690 |
WASHER.SPACER.MANDREL This part replaces 532129963. Price: $1.99 |
| 34 |
583611601 |
BOLT.3/8-14X1.25 This part replaces 872140610. Price: $3.99 |
| 35 |
872110616 |
BOLT Price: $3.99 |
| 36 |
872110608 |
BOLT D Price: $3.99 |
| 37 |
532137166 |
STIFFENER ARM Price: $3.99 |
| 38 |
532173968 |
KEEPER.BELT.IDLER.PLATED This part replaces 532137554. Price: $4.99 |
| 39 |
532173438 |
PULLEY.IDLER.FLAT This part replaces 532104360. Price: $14.99 |
| 40 |
532136572 |
PULLEY.DRIVEN.44" Price: $24.99 |
| 42 |
539990316 |
BOLT 5/16C X 3/4" CARRIAGE This part replaces 872140506. Price: $1.99 |
| 43 |
532136460 |
ARM.IDLER.SEC.44" Price: $4.99 |
| 44 |
532165723 |
SPACER.RETAINER.MOWER This part replaces 532122052. Price: $2.99 |
| 45 |
873680600 |
LOCKNUT Price: $1.99 |
| 46 |
582740701 |
BOLT This part replaces 874760628. Price: $2.99 |
| 47 |
532137200 |
COVER MANDRELL Price: $14.99 |
| 48 |
532137729 |
SCREW.1/4-20X5/8 Price: $2.99 |
| 49 |
532136574 |
COVER.MANDREL.LH.44" Price: $12.99 |
| 50 |
532137272 |
ARM.IDLER.PRIMARY Price: $3.99 |
| 51 |
532137273 |
SPRING.SEC.44"VEN Price: $3.99 |
| 52 |
532139245 |
PULLEY IDLER Price: $22.99 |
| 53 |
532137789 |
SHIELD IDLER Price: $4.99 |
| 54 |
532131264 |
BELT Price: $19.99 |
| 55 |
532144200 |
V-Belt Mower 42" This part replaces 532131290. Price: $32.99 |
| 56 |
532138687 |
SPRING Price: $2.99 |
| 61 |
532136573 |
BRACKET.GUAGE.WHEEL Price: $3.99 |
| 62 |
532178515 |
WASHER This part replaces 532133943. Price: $2.99 |
| 63 |
872110612 |
BOLT.3/8-16X1.50 Price: $3.99 |
| 64 |
734117201 |
WASHER This part replaces 819121414. Price: $1.99 |
| 67 |
873680600 |
LOCKNUT This part replaces 532005394. Price: $1.99 |
| 95 |
532175746 |
BRACKET ASM, ROLLER (L) This part replaces 532132274. Price: $3.99 |
| 96 |
532175747 |
BRACKET ASM, ROLLER This part replaces 532132273. Price: $7.99 |
| 97 |
819171416 |
WASHER Price: $2.99 |
| 98 |
539132264 |
MANUAL, OPERATOR Price: $3.20 |
| 99 |
874780616 |
BOLT This part replaces 874760614. Price: $3.99 |
| 532143651 |
MANDREL |
SERV ASM 44/50 Price: $64.99 532143651 |
