| Ref | Part Number | Description |
|---|
| 1 |
98-7697 |
BOLT Price: $1.08 |
| 2 |
98-7660 |
WASHER-PLAIN This part replaces 98-7698. Price: $0.28 |
| 3 |
98-7692 |
BOLT Price: $0.92 |
| 4 |
112-7047 |
STAY-DYNAMO This part replaces 98-9573. Price: $14.95 |
| 5 |
98-9584 |
PULLEY-FAN Price: $89.56 |
| 6 |
98-9360 |
BOLT Price: $2.35 |
| 7 |
99-7527 |
WASHER-SPRING This part replaces 98-9368. Price: $1.02 |
| 8 |
98-9366 |
WASHER-PLAIN Price: $0.28 |
| 9 |
98-9700 |
TERMINAL ASM Price: $3.16 |
| 10 |
98-9701 |
TERMINAL Price: $0.56 |
| 11 |
98-9702 |
SLEEVE Price: $0.56 |
| 12 |
98-9703 |
TERMINAL Price: $1.47 |
| 13 |
98-9704 |
SLEEVE Price: $2.39 |
| 14 |
98-9602 |
LOCK COUPLER ASM Price: $17.36 |
| 15 |
98-9699 |
TERMINAL Price: $0.89 |
| 16 |
98-9698 |
CONNECTOR Price: $1.83 |
| 17 |
98-9697 |
CONNECTOR Price: $3.22 |
| 18 |
98-9696 |
COUPLER ASM Price: $6.53 |
| 19 |
131-6557 |
ALTERNATOR ASM This part replaces 98-9474. Price: $443.05 |
| 20 |
98-9676 |
V-BELT Price: $31.01 |
| 21 |
98-9473 |
PULLEY-DRIVE, FAN Price: $319.19 |
| 22 |
98-9585 |
BOLT Price: $15.20 |
| 23 |
99-7526 |
NUT This part replaces 98-7737. Price: $1.29 |

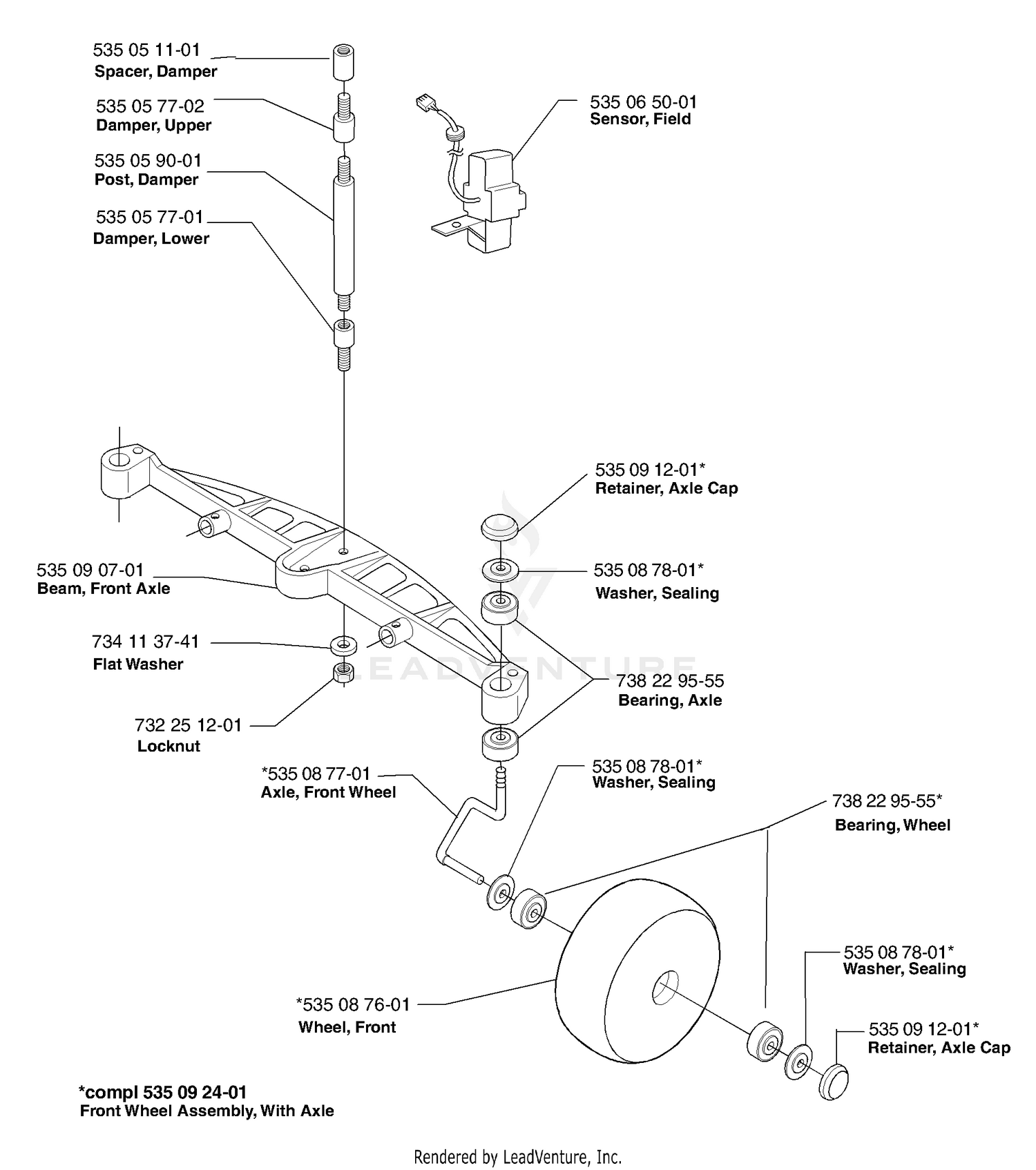

| 535051101 |
535051101 |
SPACER Price: $27.99 |
| 535057701 |
535057701 |
DAMPER Price: $9.99 |
| 535057702 |
535057702 |
DAMPER Price: $9.99 |
| 535059001 |
535059001 |
POST FRONT DAMPER Price: $149.99 |
| 535087601 |
575231701 |
WHEEL, FRONT This part replaces 535087601. Price: $19.99 |
| 535087701 |
535087701 |
AXLE, FRONT WHEEL Price: $13.79 |
| 535087801 |
535087801 |
WASHER, SEALING Price: $2.99 |
| 535090701 |
535103101 |
BRACKET This part replaces 535090701. Price: $17.14 |
| 535091201 |
535091201 |
RETAINER, AXLE CAP Price: $2.99 |
| 535092401 |
535092401 |
FRONT WHEEL ASSY W/AXLE Price: $52.51 |
| 732251201 |
588222101 |
HEXAGON NUT FLANGE M4 A2-70 This part replaces 732251201. Price: $2.99 |
| 734113741 |
734113741 |
WASHER Price: $3.99 |
| 738229555 |
738229555 |
BEARING Price: $7.99 |
