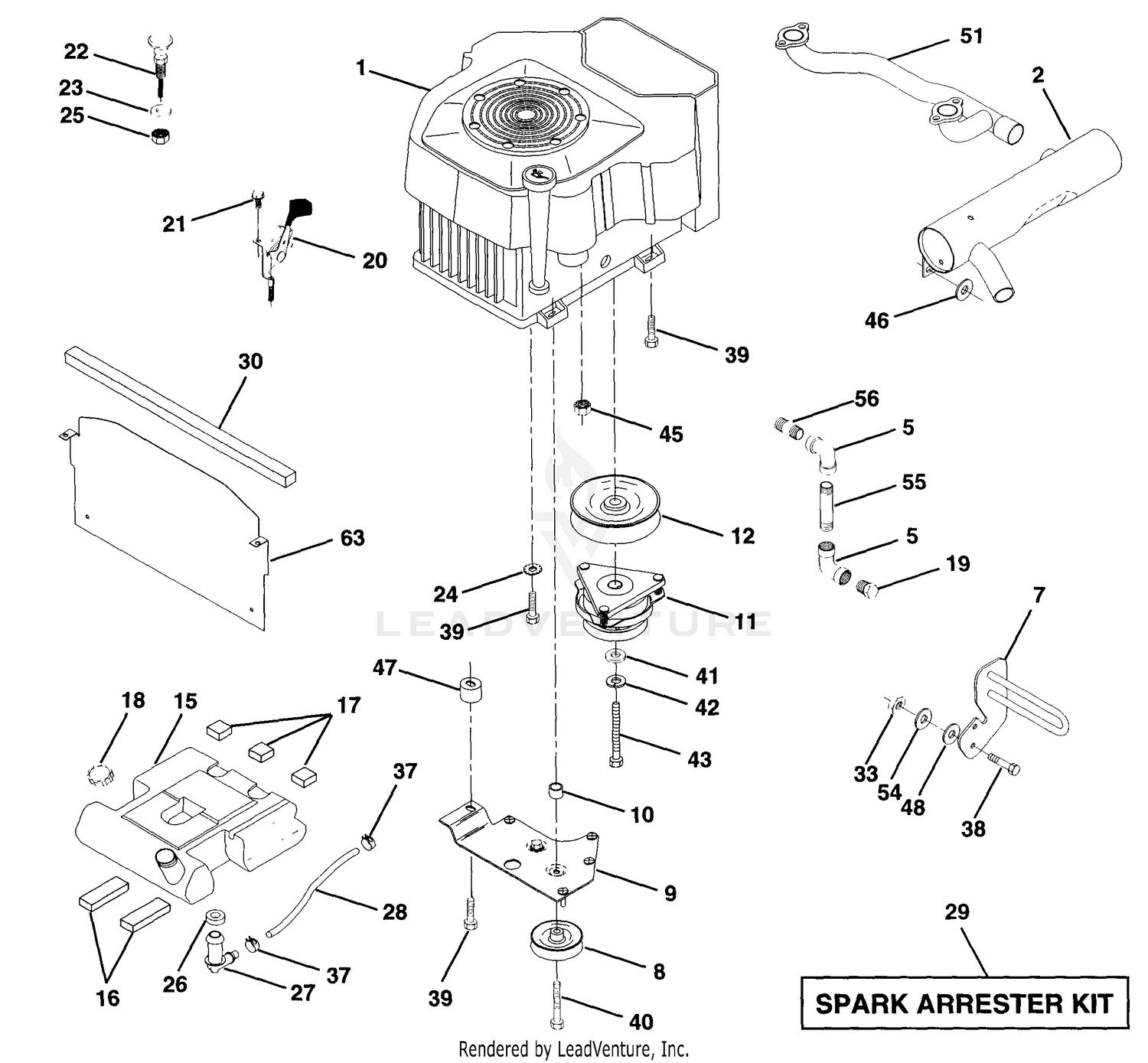

| Ref | Part Number | Description |
|---|
| 1 |
323-12 |
SCREW-HH Price: $1.14 |
| 2 |
532161062 |
MUFFLER This part replaces 532144636. Price: $94.56 |
| 2 |
83-1040 |
WASHER-FLAT Price: $2.31 |
| 3 |
83-1050 |
SPACER Price: $3.26 |
| 4 |
121-9076 |
MOUNT-ENGINE This part replaces 83-1030. Price: $37.76 |
| 5 |
532428287 |
VALUE.OIL.DRAIN This part replaces 813200300. Price: $14.99 |
| 7 |
108-6539 |
MANIFOLD-EXHAUST This part replaces 83-1080. Price: $249.13 |
| 7 |
532151396 |
MUFFLER ASSEMBLY GUARD Price: $23.99 |
| 8 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 8 |
532139123 |
PULLEY.IDLER.V. This part replaces 532121361. Price: $32.99 |
| 9 |
3274-7 |
SCREW-HSH Price: $0.91 |
| 9 |
532177748 |
KEEPER ASM BELT ENGINE This part replaces 532150828. Price: $12.99 |
| 10 |
532105432 |
BUSHING Price: $4.99 |
| 10 |
83-1060-0P |
PUMP MOUNT - MACH. *B This part replaces 83-1060. Price: $249.55 |
| 11 |
532174509 |
CLUTCH KIT This part replaces 532140923. Price: $449.99 |
| 12 |
532143996 |
PULLEY ENG VGT ELECT CLUTCH Price: $37.99 |
| 14 |
2112-11 |
CLAMP-MUFFLER Price: $7.37 |
| 15 |
106-4619 |
ENGINE KIT 18HP VANGUARD GAS This part replaces 98-0636. Price: $3,846.49 |
| 15 |
532151346 |
FUEL TANK 3.5G Price: $84.99 |
| 16 |
112-0220 |
GRILLE-MUFFLER This part replaces 83-1400. Price: $18.94 |
| 16 |
532109227 |
PAD IDLER TI Price: $3.99 |
| 17 |
12-3270 |
SCREW Price: $3.09 |
| 17 |
532106082 |
PAD-SPACER LT Price: $3.99 |
| 18 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 18 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 19 |
98-0616 |
MUFFLER Price: $136.88 |
| 20 |
532132748 |
CONTROL.THROT.RH.BLK.FLG.44.75 This part replaces 532132747. Price: $20.99 |
| 21 |
322-8 |
SCREW-HH Price: $1.26 |
| 21 |
596582501 |
Bolts This part replaces 817720410. Price: $2.99 |
| 22 |
532132781 |
CHOKE CONTROL Price: $22.99 |
| 23 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 23 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 24 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 24 |
83-1630-03 |
BRACKET-SUPPORT, MUFFLER This part replaces 83-1630. Price: $129.03 |
| 25 |
43-5930 |
WASHER-LOCK, SPRING Price: $0.75 |
| 25 |
873920600 |
Nut Keps 3/8 - 24 UNF Price: $3.99 |
| 26 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 26 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $3.99 |
| 27 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 27 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 28 |
532008542 |
FUEL LINE 42" This part replaces 532124703. Price: $5.99 |
| 28 |
85-8120-0P |
ENGINE MOUNT PLATE *B This part replaces 85-8120. Price: $114.20 |
| 29 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 29 |
532132920 |
SPARK ARRESTOR Price: $43.09 |
| 30 |
324-7 |
SCREW-HH Price: $1.79 |
| 30 |
532105037 |
FOAM-STRIP LT Price: $2.38 |
| 31 |
32128-20 |
NUT-HF Price: $0.99 |
| 32 |
322-3 |
SCREW-HH Price: $0.79 |
| 33 |
43-2830 |
NUT-HEX Price: $0.39 |
| 33 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 34 |
93-8069 |
DECAL-SURFACE, HOT Price: $10.04 |
| 35 |
83-2310 |
SHIELD-REGULATOR Price: $14.57 |
| 36 |
33113-016 |
SCREW-HH This part replaces 48-7620. Price: $0.34 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
95-7145 |
WIRE ASM - ENGINE GROUND Price: $20.41 |
| 38 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 874780624. Price: $6.99 |
| 38 |
95-7142 |
WIRE HARNESS Price: $252.94 |
| 39 |
596564004 |
SCREW TT 3/8-16X2.31 UNC This part replaces 817490636. Price: $1.99 |
| 40 |
2412-81 |
CLAMP-R Price: $3.39 |
| 40 |
817490664 |
Screw TT 3 8-16 x 4 UNC Price: $3.99 |
| 41 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 43 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532150280. Price: $2.99 |
| 45 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 532128861. Price: $2.99 |
| 46 |
596140201 |
Washers This part replaces 819131616. Price: $2.99 |
| 47 |
532142040 |
SPACER.ENGINE.CV22.ROUND.PM Price: $3.99 |
| 48 |
819132007 |
Washer 13/32 x 1-1/4 x 7 Ga. Price: $3.99 |
| 51 |
532161230 |
MANIFOLD PIPE VGT This part replaces 532140787. Price: $84.15 |
| 54 |
819131414 |
WASHER Price: $3.99 |
| 55 |
813280336 |
Nipple, Pipe 4-1/2" This part replaces 813090336. Price: $2.42 |
| 56 |
813090308 |
NIPPLE, PIPE 3/8 NPTX1.00 Price: $4.99 |
