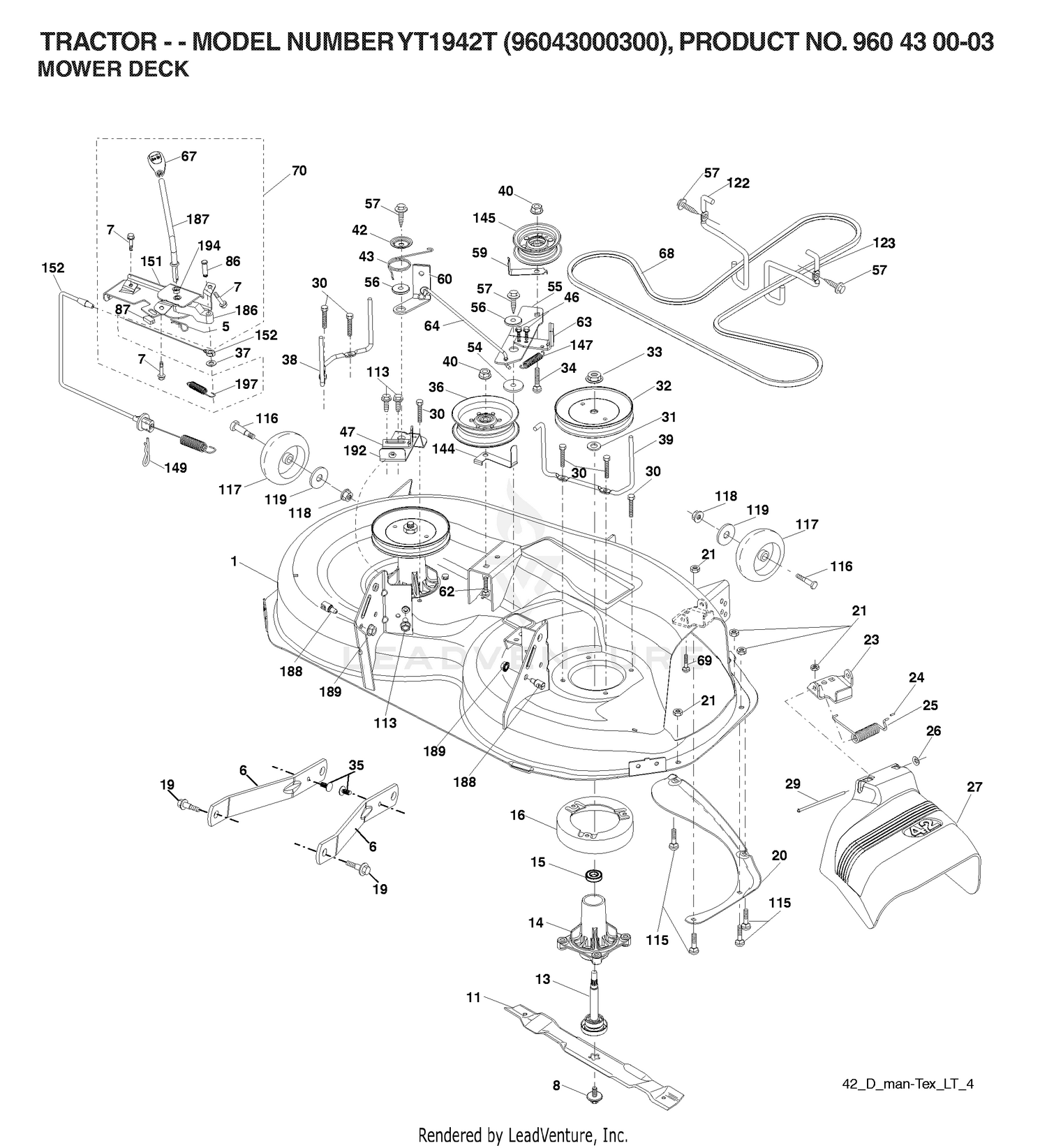

| Ref | Part Number | Description |
|---|
| 1 |
598602801 |
Decks This part replaces 532402999. Price: $349.99 |
| 5 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 6 |
529846401 |
SERVICE.KIT ARM.SUSPENSION.MOW This part replaces 532195186. Price: $14.99 |
| 7 |
596321701 |
Screws This part replaces 532191611. Price: $2.99 |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 13 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532192872. Price: $49.99 |
| 14 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 16 |
531167701 |
SERVICE KIT MANDREL STRIPPER This part replaces 532174493. Price: $6.99 |
| 19 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 20 |
531167001 |
SERVICE KIT BAFFLE.VORTEX BAFF This part replaces 532159770. Price: $11.99 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 23 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $7.99 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
532197026 |
SPRING.TORSION.DEFLECT Price: $8.99 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
532403004 |
SHIELD.DEFLECTOR.MOWER.42"BLAC Price: $29.99 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 32 |
532195945 |
PULLEY.MANDREL.5.438.P Price: $12.99 |
| 33 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 34 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 36 |
532196106 |
PULLEY.IDLER.2006 Price: $34.99 |
| 37 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 38 |
589676103 |
KEEPER 42 MANDREL BELT FOR 6.2 This part replaces 532199189. Price: $6.99 |
| 39 |
532199191 |
KEEPER.BELT.RH.MANDREL Price: $12.99 |
| 40 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 42 |
532198410 |
SPRING.TORSION.BRAKE Price: $4.99 |
| 43 |
532197256 |
SRPING.TORSION.RETAINE Price: $4.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 47 |
532197250 |
BRKT.CLUTCH.CABLE Price: $4.99 |
| 54 |
532178515 |
WASHER Price: $5.99 |
| 55 |
531169401 |
SERVICE KIT IDLER.ARM This part replaces 532197249. Price: $5.99 |
| 56 |
532199092 |
SPACER.RETAINER Price: $5.99 |
| 57 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 59 |
531165901 |
SERVICE KIT GUARD This part replaces 532173442. Price: $4.99 |
| 60 |
597074201 |
ARMS This part replaces 532197402. Price: $12.99 |
| 62 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 63 |
532199478 |
ARM.BRAKE.ZINC Price: $14.99 |
| 64 |
532199918 |
LINKAGE.BRAKE.ASM.ZINC This part replaces 532197383. Price: $11.99 |
| 65 |
532199092 |
SPACER.RETAINER Price: $5.99 |
| 67 |
532403012 |
HANDLE.CLUTCH.CABLE.LT Price: $6.99 |
| 68 |
592855001 |
Belts This part replaces 532197253. Price: $34.99 |
| 69 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 70 |
532199779 |
CLUTCH.ASM.MANUAL Price: $59.99 |
| 86 |
532406563 |
CLUTCH.ASM.CABLE.HUSQ.TEX This part replaces 532197798. Price: $71.99 |
| 87 |
532197802 |
SWITCH.INTRLCK.CLUTCH. Price: $14.99 |
| 88 |
532400776 |
SCREW.#10-24X5/8.RN.QU This part replaces 532193232. Price: $4.99 |
| 113 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 115 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 872110505. Price: $2.99 |
| 116 |
596434402 |
Bolts This part replaces 532124842. Price: $3.99 |
| 117 |
589527401 |
WHEEL.GAUGE.RALLY.NARROW This part replaces 532188606. Price: $9.99 |
| 118 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 119 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
| 122 |
531169501 |
SERVICE KIT BELT KEEPER This part replaces 532197258. Price: $4.99 |
| 123 |
531169701 |
SERVICE KIT KEEPER BELT KEEPER This part replaces 532197259. Price: $6.99 |
| 144 |
531169801 |
SERVICE KIT BELT KEEPER This part replaces 532199204. Price: $4.99 |
| 145 |
532177968 |
PULLEY.IDLER.FLAT Price: $27.99 |
| 147 |
532401971 |
RETURN SPRING Price: $4.99 |
| 149 |
532165898 |
SPRING.RETAINER.YELLOW.ZINC Price: $3.99 |
| 151 |
532198332 |
CLUTCH.ASM.MANUAL.LT.TEX This part replaces 532198331. Price: $44.99 |
| 152 |
532435111 |
CABLE.CLUTCH.MANUAL. This part replaces 532197257. Price: $29.99 |
| 187 |
532197800 |
Lever Control Clutch Price: Call Us |
| 188 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 189 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 192 |
531152801 |
SERVICE KIT BRACKET BRKT.BRAKE This part replaces 532197260. Price: $5.99 |
| 194 |
532406563 |
CLUTCH.ASM.CABLE.HUSQ.TEX This part replaces 532197797. Price: $71.99 |
| 197 |
532406563 |
CLUTCH.ASM.CABLE.HUSQ.TEX This part replaces 532197801. Price: $71.99 |
| 587819701 |
KIT.MANDREL.NONGREASE.TALL |
This part replaces 532192870. Price: $49.99 587819701 |
| 594892701 |
42" |
MULCH BLADE This part replaces 532134149. Price: $12.99 594892701 |
| 594893101 |
BLADE.42"MULCH.PREMIUM |
This part replaces 532139775. Price: $14.99 594893101 |
| 598602801 |
Decks |
This part replaces 532402022. Price: $349.99 598602801 |
