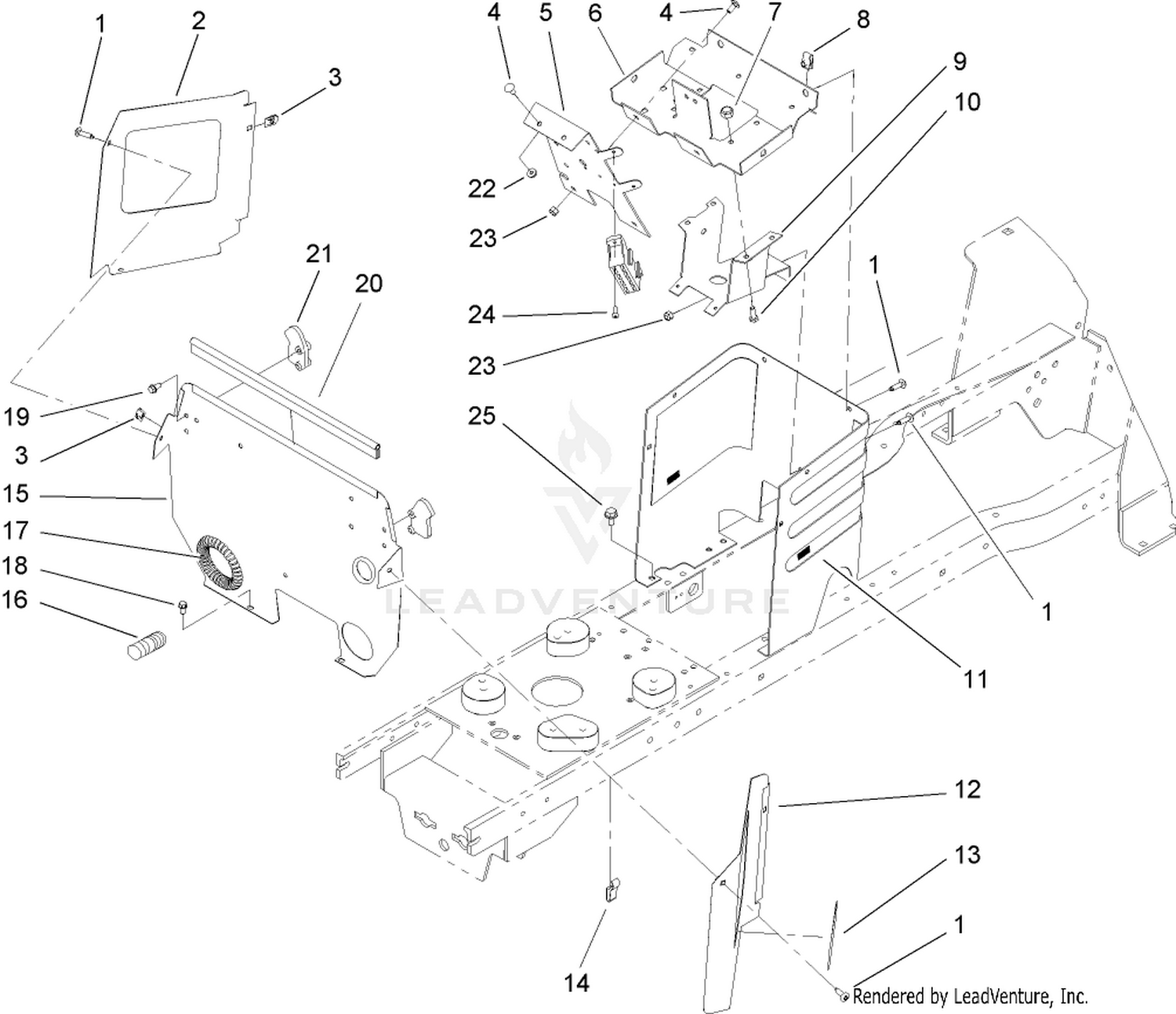

Hoodstand and Firewall Assembly
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 92-7020 | SCREW-HH Price: $1.79 |
| 2 | 92-6937-03 | RH SIDE COVER ASM Price: $55.75 |
| 3 | 92-7006 | NUT Price: $3.69 |
| 4 | 3229-11 | SCREW-CARR Price: $0.99 |
| 5 | 106-8246-03 | PANEL-SUPPORT, DASH Price: $27.73 |
| 6 | 92-6859-03 | SUPPORT-DASH Price: $37.84 |
| 7 | 3296-8 | NUT-HEX Price: $1.29 |
| 8 | 107069 | CLIP Price: $1.79 |
| 9 | 92-6778-03 | BRACKET-COLUMN, LOWER Price: $33.14 |
| 10 | 321-4 | SCREW-HH Price: $0.99 |
| 11 | 106-5570-03 | HOODSTAND ASM Price: $117.76 |
| 12 | 92-6936-03 | LH COVER ASM Price: $62.40 |
| 13 | 107-9242 | DECAL Price: $5.04 |
| 14 | 212-93 | CLAMP-CASING Price: $3.46 |
| 15 | 104-0818-03 | DISCONTINUED Price: Call Us |
| 16 | 106-4147 | DISCONTINUED Price: Call Us |
| 17 | 24-7924 | COVER-SHAFT, DRIVE Price: $3.98 |
| 18 | 32144-4 | SCREW-HWH Price: $1.29 |
| 19 | 46-8093 | SCREW-PLASTITE Price: $1.29 |
| 20 | 93-1131 | TRIM-SEAL, FIREWALL Price: $20.09 |
| 21 | 92-6960 | LATCH-HOOD Price: $9.95 |
| 22 | 32149-2 | NUT-KEPS Price: $2.39 |
| 23 | 3296-42 | NUT-LOCK, NI Price: $0.28 |
| 24 | 32144-8 | SCREW-PPHTF Price: $5.39 |
