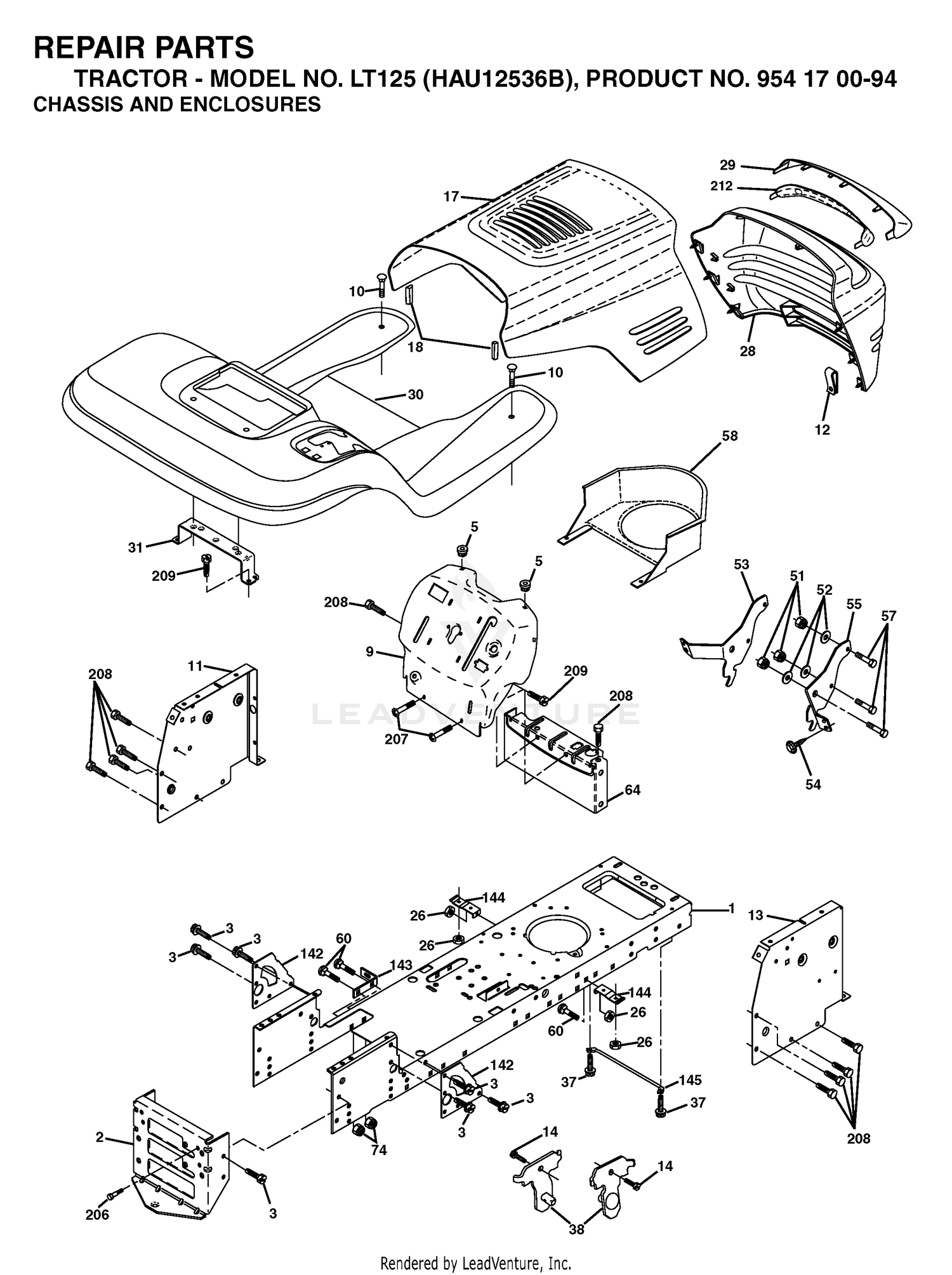

| Ref | Part Number | Description |
|---|
| 1 |
579841401 |
KITS.CHASSIS.STAMPED.SERVICE This part replaces 532174619. Price: $379.99 |
| 2 |
105-8122 |
SEAL-BOOT Price: $19.70 |
| 2 |
532176554 |
DRAWBAR, 12GA Price: $37.99 |
| 3 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
| 4 |
105-8120 |
BEARING-CONE Price: $98.15 |
| 5 |
105-8119 |
BEARING-CUP Price: $130.48 |
| 5 |
532155272 |
BUMPER.RUBBER.HOOD Price: $3.99 |
| 6 |
105-8124 |
STUD-WHEEL Price: $7.84 |
| 7 |
105-8125 |
BOLT-HEAD, SOCKET Price: $6.53 |
| 8 |
3253-18 |
WASHER-LOCK Price: $0.68 |
| 9 |
532168336 |
DASH This part replaces 532171853. Price: $33.08 |
| 10 |
105-8121 |
PIN-DOWEL Price: $0.41 |
| 10 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 11 |
105-8117 |
BEARING-CUP Price: $114.89 |
| 11 |
532174996 |
PANEL.DASH.LH.LTX Price: $9.99 |
| 12 |
105-8118 |
BEARING-CONE Price: $87.73 |
| 12 |
532145660 |
CLIP Price: $2.99 |
| 13 |
532181719 |
PANEL DASH RH Price: $8.99 |
| 14 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 16 |
105-8113 |
GEAR-RING Price: $633.38 |
| 17 |
105-8132 |
RING-RETAINING Price: $16.29 |
| 17 |
532159639 |
HOOD.STEEL.LT.ORANGE This part replaces 532162237. Price: $64.99 |
| 18 |
353-990 |
PLUG ASM Price: $10.01 |
| 18 |
532184921 |
BUMPER.HOOD.LARGE.1.75" Price: $4.99 |
| 19 |
105-8138 |
CAP-END Price: $92.32 |
| 21 |
105-8133 |
PLUG-THRUST Price: $36.88 |
| 22 |
105-8123 |
WASHER-THRUST Price: $20.15 |
| 23 |
105-8131 |
RING-RETAINING Price: $3.05 |
| 24 |
105-8114 |
GEAR-PRIMARY Price: $100.24 |
| 25 |
105-8115 |
SHAFT-DRIVE Price: $134.40 |
| 26 |
105-8129 |
CARRIER-PRIMARY Price: $691.83 |
| 26 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 27 |
105-8139 |
GEAR-SECONDARY Price: $146.04 |
| 28 |
105-8130 |
CARRIER-SECONDARY Price: $726.53 |
| 28 |
532179845 |
GRILLE/LENS ASM Price: $173.99 |
| 29 |
105-8136 |
SHIM KIT Price: $177.70 |
| 29 |
532146654 |
GRILLE.LENS This part replaces 532176645. Price: $17.99 |
| 30 |
532192813 |
FENDER W/OUT CUP HOLDER This part replaces 532180507. Price: $125.54 |
| 31 |
532139976 |
BRACKET.SUPPORT.FENDER Price: $14.99 |
| 37 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 38 |
532175710 |
BRACKET.ASM.PIVOT.MOWER.REAR Price: $9.99 |
| 51 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 52 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 53 |
532144697 |
BRACKET.GRILLE.LH Price: $4.99 |
| 54 |
532161464 |
SCREW.HEX.WS.HD.8-18 X 7/8 Price: $3.99 |
| 55 |
532144696 |
BRACKET Price: $4.99 |
| 57 |
596230901 |
Screws This part replaces 874780412. Price: $2.99 |
| 58 |
532150127 |
AIR DUCT P/L/LT Price: $13.99 |
| 60 |
872140606 |
Bolt - Rd. Hd. Sq. Neckiage 3/8 16 x 3/4 Price: $4.99 |
| 74 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 142 |
532175702 |
PLATE REINFORCEMENT Price: $7.99 |
| 143 |
532186689 |
BRACKET, SWAYBAR CHASSIS This part replaces 532154966. Price: $5.99 |
| 144 |
532175582 |
BRKT, FOOT REST Price: $4.99 |
| 145 |
532409167 |
ROD.PIVOT.HOOD This part replaces 532156524. Price: $9.99 |
| 206 |
532170165 |
SHOULDER BOLT 5/16-18TT Price: $3.99 |
| 207 |
817670508 |
SCREW, 5/16-18 X 1/2 Price: $7.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $3.99 |
| 209 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 212 |
532174503 |
INSERT, LENS This part replaces 532156229. Price: $22.99 |
