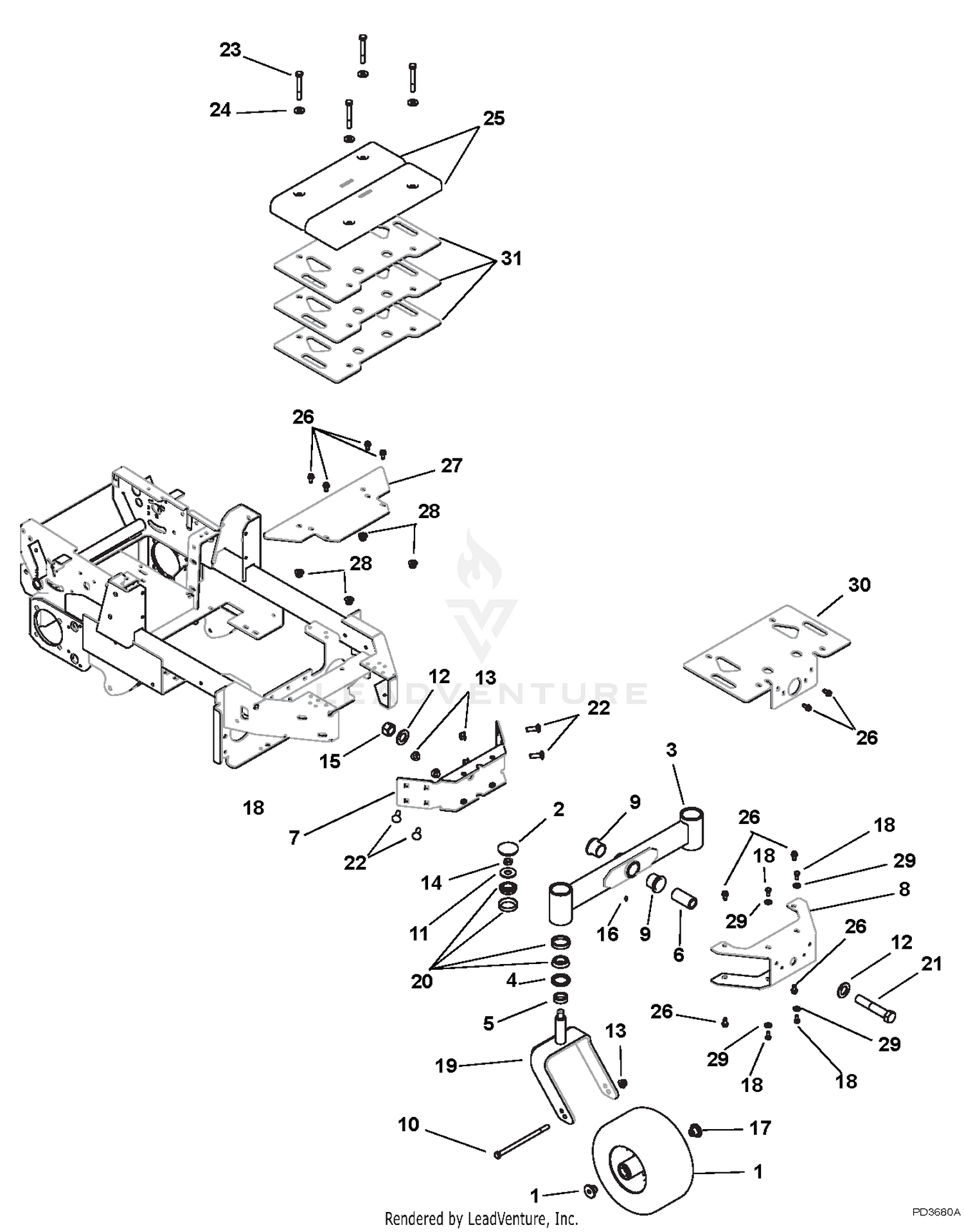

| Ref | Part Number | Description |
|---|
| 1 |
00675300 |
SPACER, FRONT WHEEL Price: $7.95 |
| 2 |
03925900 |
CAP, DUST Price: $10.45 |
| 3 |
00494653 |
WMT,REAR AXLE,RAPID XZ (RED) Price: $734.45 |
| 4 |
05600432 |
SEAL, OIL 1.75 X 2.332 X .312 Price: $10.95 |
| 5 |
03760300 |
SPCR, 1.258ID X 1.750OD X.550 Price: $26.95 |
| 6 |
00607900 |
SPACER, 1 X 1.50 X 3.16"LG Price: $41.45 |
| 7 |
00613300 |
WMT, REAR AXLE MTG PLATE Price: $137.95 |
| 8 |
04269300 |
COVER,REAR AXLE Price: $145.95 |
| 9 |
05517600 |
BSHG-FLG 1.514X1.756X1.688X2.2 Price: $8.45 |
| 10 |
05901930 |
BLT, HEX .50-13X9.00 G5 ZCC This part replaces 05961200. Price: $9.95 |
| 11 |
06401201 |
WSHR-FL-STL 0.812X2X0.148 ZCC This part replaces 06439800. Price: $3.95 |
| 12 |
06427900 |
WSHR-FL-STL 2.0X1.12X.148 HDND Price: $5.45 |
| 13 |
06500810 |
NUT,NYL-FLG .50-13 GF ZCC This part replaces 06500010. Price: $1.45 |
| 14 |
06536900 |
NUT-JAM CTRLK .75-16 YWZC Price: $5.45 |
| 15 |
06500022 |
NUT-LK-NYL 1.0-8 YWZC Price: $3.45 |
| 16 |
07012600 |
FTG-LUBE .25-28X.256 YWZC Price: $3.45 |
| 17 |
59103400 |
KIT, 13" PNEUMATIC TIRE This part replaces 07100903. Price: $173.45 |
| 18 |
05901702 |
BLT,HEX .38-16X.75 G5 ZCC This part replaces 05959400. Price: $1.45 |
| 19 |
03924453 |
CASTER FORK WMT - RED Price: $142.95 |
| 20 |
05404600 |
BRG-CUP 2.328X.465 Price: $13.45 |
| 21 |
05900104 |
BLT-HEX 1.0-8X5.50 GR5 YWZC Price: $10.95 |
| 22 |
06200421 |
BLT, RHSN .50-13X1.50 G5 ZCC This part replaces 06223100. Price: $4.45 |
| 23 |
05901703 |
BLT,HEX .50-13X3.75 G5 ZCC This part replaces 05960100. Price: $5.45 |
| 24 |
06401015 |
WSHR,FLT .531X1.062X.095 ZCC This part replaces 06430200. Price: $0.95 |
| 25 |
00172000 |
WEIGHT, CAST IRON Price: $234.95 |
| 26 |
07400129 |
SCR,TAP .375-16X.75 HWH TR ZCC This part replaces 07415400. Price: $1.45 |
| 27 |
04345851 |
BRKT,BASE,DUAL WEIGHT LAYR-BLK Price: $35.95 |
| 28 |
06500827 |
NUT,LK-CTR .50-13 GA ZCC This part replaces 06536300. Price: $3.95 |
| 29 |
06401023 |
WSHR-FLT .375X.875X.083 ZCC This part replaces 06435700. Price: $1.45 |
| 30 |
04347651 |
PLT,WEIGHT,DUAL LAYER,FLG-BLK Price: $89.95 |
