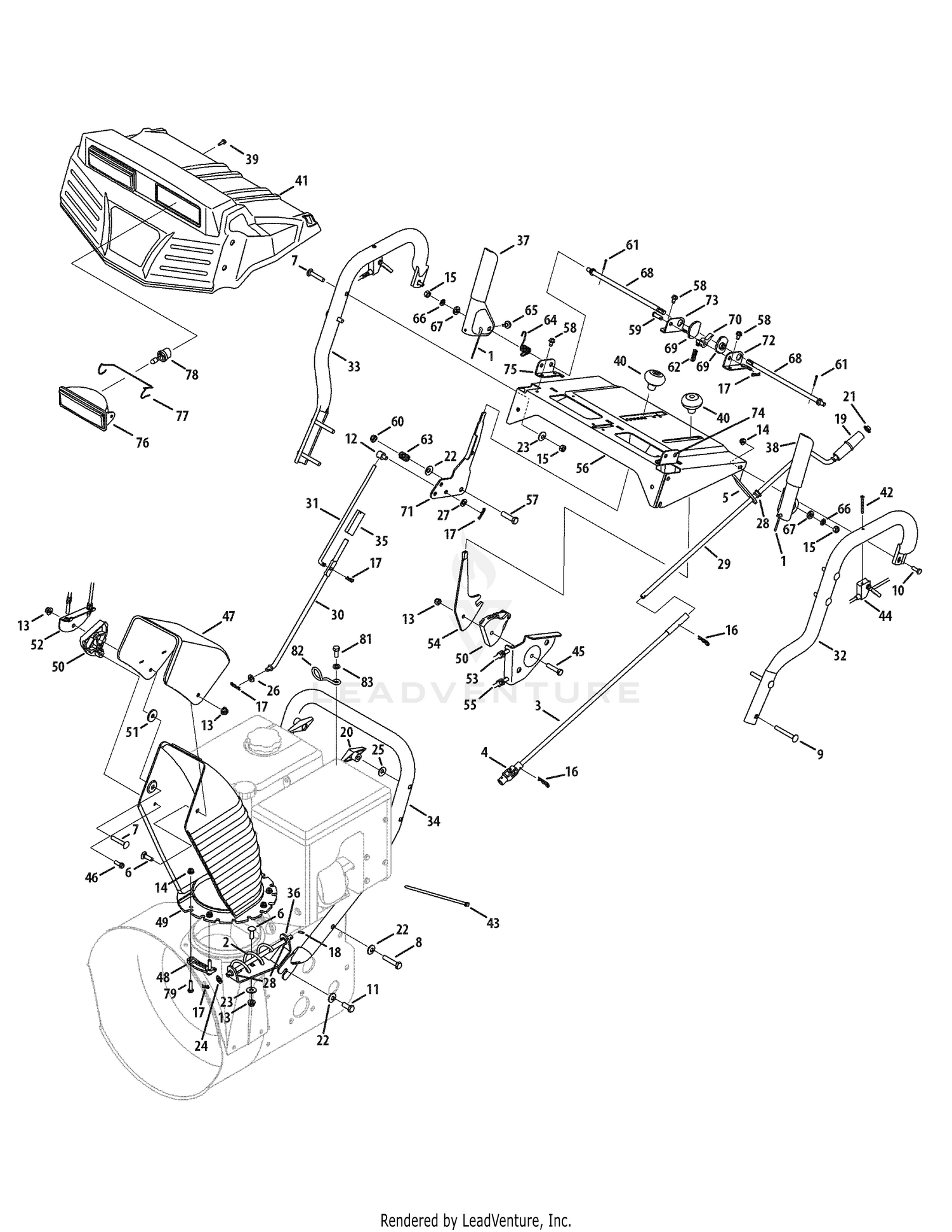

| Ref | Part Number | Description |
|---|
| 1 |
646-0012 |
Cable Ass’y, Auger/Drive Price: $32.48 |
| 2 |
684-04308A |
Chute Crank Assembly Not Available Price: |
| 3 |
684-04309A-0637 |
CHUTE CRANK ROD (POWDER BLACK) Not Available Price: |
| 4 |
684-04350 |
Joint Block Assembly Price: $25.48 |
| 5 |
705-5266-0637 |
Chute Crank Bracket Price: $13.37 |
| 6 |
710-0276 |
Carriage Screw, 5/16-18 x 1.0 Price: $3.68 |
| 7 |
710-0458 |
CARRIAGE BOLT 5/16-18 x 1.75 Price: $3.72 |
| 8 |
710-04682 |
SCREW 3/8-16 x 2.00 GR5 Not Available Price: |
| 9 |
710-0572 |
Carriage Screw, 5/16-18 x 2.5 Price: $3.75 |
| 10 |
710-3015 |
Hex Screw, 1/4-20 x .75 Price: $3.65 |
| 11 |
710-3118 |
Screw, Hex, 3/8-16 x 1.00 Price: $4.77 |
| 12 |
911-0677 |
Ferrule, 5/16-18 x .312 Dia Price: $15.59 |
| 13 |
712-04063 |
Flange Lock Nut 5/16-18 Price: $3.56 |
| 14 |
712-04064 |
Flange Lock Nut 1/4-20 Price: $3.64 |
| 15 |
712-3009 |
Hex Lock Nut, 5/16-18 This part replaces 912-3009. Price: $5.99 |
| 16 |
714-0101 |
Int. Cotter Pin This part replaces 914-0101. Price: $4.13 |
| 17 |
714-0104 |
Hairpin Clip This part replaces 914-0104. Price: $3.90 |
| 18 |
715-04095 |
Spring Pin, .156 dia. x .875 Lg. Price: $4.39 |
| 19 |
720-0201A |
Knob, Crank Price: $9.62 |
| 20 |
720-04072A |
Wing Knob, 5/16-18 Price: $6.07 |
| 21 |
726-0100 |
Push Cap This part replaces 926-0100. Price: $3.75 |
| 22 |
736-0105 |
Bell Wash, .375 x .87 x .063 Price: $3.96 |
| 23 |
736-0159 |
Washer This part replaces 936-0159. Price: $3.71 |
| 24 |
736-0185 |
Flat Washer, .375 x .738 x .063 This part replaces 936-0185. Price: $3.43 |
| 25 |
736-0242 |
Wash, Bell, .34 x .872 x .06 Price: $3.75 |
| 26 |
736-0275 |
FLAT WASHER This part replaces 936-0275. Price: $5.99 |
| 27 |
936-3008 |
Flat Washer, .344 x .750 x .120 Price: $6.24 |
| 28 |
941-0475 |
Plastic Bushing, .38 ID Price: $3.74 |
| 29 |
747-0624-0637 |
Upper Chute Crank Rod Price: $21.14 |
| 30 |
747-0983A |
Lower Shift Rod Price: $39.81 |
| 31 |
747-0997 |
Upper Shift Rod Price: $61.20 |
| 32 |
749-0989A-0637 |
UPPER HANDLE (LH) (POWDER BLACK) Not Available This part replaces 749-0989A-0638. Price: |
| 33 |
749-0990A-0638 |
UPPER HANDLE (RH) (MTD RED) Not Available Price: |
| 34 |
749-0991-0638 |
LOWER HANDLE (MTD RED) Not Available Price: |
| 35 |
950-0963 |
Shift Rod Connector Price: $30.48 |
| 36 |
790-00329-0637 |
Chute Crank Bracket Not Available Price: |
| 37 |
705-5218 |
CLUTCH HANDLE(RH) Not Available Price: |
| 38 |
705-5219 |
CLUTCH HANDLE(LH) Not Available Price: |
| 39 |
710-04669 |
Screw, #10-16 x .625 This part replaces 7101003. Price: $2.98 |
| 40 |
720-04039 |
Shift Knob Price: $9.09 |
| 41 |
731-04069 |
HANDLE PANEL STYLE 7 Not Available Price: |
| 42 |
710-1625 |
Screw, #10-24 x 1.75 Price: $6.01 |
| 43 |
725-0157 |
Cable Tie Price: $3.46 |
| 44 |
746-0950A |
Trigger Control Price: $19.58 |
| 45 |
710-0805A |
SCREW 5/16-18 x 1.5 LG This part replaces 710-0805. Price: $3.75 |
| 46 |
710-0895 |
Hex Screw, 1/4-15 x .75 Price: $5.82 |
| 47 |
731-0846C |
Upper Chute, 6.0 Price: $45.74 |
| 48 |
731-0851A |
Chute Flange Keeper Price: $3.90 |
| 49 |
731-0903E |
Lower Chute Price: $37.79 |
| 50 |
731-1313C |
Cbl. Guide, Chute Tilt Price: $10.46 |
| 51 |
736-0231 |
Flat Washer, .344 x 1.125 x.12 This part replaces 936-0231. Price: $4.02 |
| 52 |
784-5594-0637 |
Cable Bracket Price: $10.15 |
| 53 |
946-0902 |
Chute Control Cable 66" This part replaces 746-0902. Price: $43.36 |
| 54 |
784-5604A-0637 |
Chute Tilt Handle Price: $22.34 |
| 55 |
946-0903 |
Chute Control Cable w/clip This part replaces 746-0903. Price: $46.91 |
| 56 |
684-0102A |
HANDLE PANEL ASSEMBLY Not Available This part replaces 684-0102A-0637. Price: |
| 57 |
710-0459A |
Hex Screw, 3/8-24 x 1.5 Price: $6.50 |
| 58 |
710-0599 |
Hex Screw, 1/4-20 x .5 Price: $3.86 |
| 59 |
711-0653 |
Clevis Pin, .312 x 1.0 Price: $3.37 |
| 60 |
712-0116 |
Jam Nut This part replaces 912-0116. Price: $3.95 |
| 61 |
914-0507 |
Cotter Pin, 3/32 x .75 Price: $3.93 |
| 62 |
732-0145 |
Compression Spring Price: $3.74 |
| 63 |
732-0193 |
Compression Spring Price: $4.11 |
| 64 |
732-0746 |
Torsion Spring Price: $4.06 |
| 65 |
735-0199A |
Rubber Bumper This part replaces 935-0199A. Price: $6.89 |
| 66 |
936-0119 |
Lock Washer, 5/16 Price: $4.29 |
| 67 |
736-0509 |
Flat Wash, .35 Sq x .72 x .134 Not Available Price: |
| 68 |
747-0877 |
Cam Rod Price: $19.94 |
| 69 |
748-0362 |
Handle Lock Cam Not Available Price: |
| 70 |
948-0363 |
Handle Lock Pawl Price: $14.41 |
| 71 |
784-5619B-0637 |
Shift Handle Price: $24.91 |
| 72 |
784-5679-0637 |
HANDLE BRACKET (LH) Not Available Price: |
| 73 |
784-5680-0637 |
Handle Support Bracket - RH Price: $10.88 |
| 74 |
784-5681 |
Handle Support Bracket - LH Price: $7.91 |
| 75 |
784-5682-0637 |
Handle Support Bracket - RH Price: $24.80 |
| 76 |
925-1672 |
Light Assembly Price: $78.41 |
| 77 |
747-1136 |
Headlight Retainer Price: $10.32 |
| 78 |
925-1658 |
Lamp Price: $52.74 |
| 79 |
710-0597 |
SCREW 1/4-20 X1.00 GR5 Price: $3.66 |
| 81 |
710-1681 |
HEX SCREW M8-1.25 x 20 GR8 This part replaces 710-04022. Price: $5.22 |
| 82 |
732-04677 |
Cable Guide Price: $7.87 |
| 83 |
736-0264 |
Flat Washer, .330 x .630 x .0635 Price: $5.99 |
