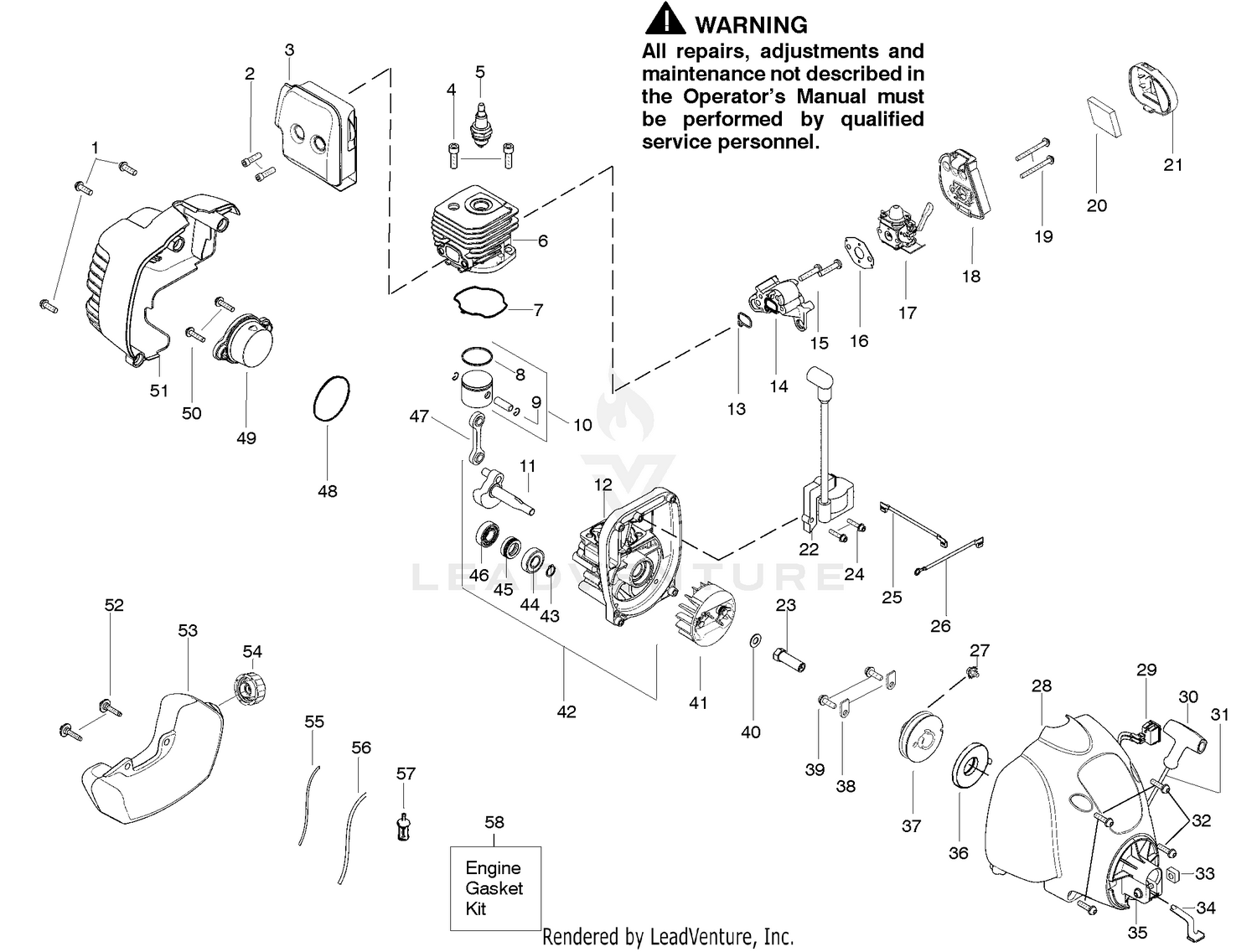

| Ref | Part Number | Description |
|---|
| 1 |
530015880 |
Screw Price: $1.99 |
| 1 |
95-1821 |
SPRING-COMPRESSION This part replaces 95-1821-03. Price: $6.71 |
| 2 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 2 |
530058982 |
Bolt-Muffler Price: $1.99 |
| 3 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 4 |
21-2850-01 |
MOUNT-PEDAL, RH Price: $69.64 |
| 4 |
530015953 |
Screw-Cylinder Price: $1.99 |
| 5 |
3218-5 |
NUT-JAM Price: $0.27 |
| 5 |
952030249 |
Spark Plug (RCJ 6Y) Price: Call Us |
| 6 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 6 |
530012541 |
Cylinder Price: $11.99 |
| 7 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 7 |
530071750 |
Seal-Cylinder (kit) Price: $8.99 |
| 8 |
233-17 |
KNOB Price: $10.58 |
| 8 |
545154001 |
RING PISTON This part replaces 530055120. Price: $1.99 |
| 9 |
530015162 |
Retainer-Piston Pin Price: $1.99 |
| 9 |
82-8670 |
ROD-LATCH, BRAKE Price: $61.33 |
| 10 |
94-3307 |
PAD-PEDAL, TRACTION Price: $12.11 |
| 11 |
323-15 |
SCREW-HH Price: $1.53 |
| 11 |
530057829 |
Assy-Crankshaft Price: $12.99 |
| 12 |
88-1720 |
PAD-FOOTREST Price: $5.27 |
| 13 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 13 |
530071750 |
Seal-Cyl/Carb.(kit) Price: $8.99 |
| 14 |
32144-102 |
SCREW-HWH This part replaces 11-0590. Price: $3.19 |
| 14 |
530057547 |
Adapter-Carb. Price: $7.99 |
| 15 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 15 |
530016309 |
Screw Price: $1.99 |
| 16 |
530071750 |
Gasket-Carb. (kit) Price: $8.99 |
| 16 |
88-1710-01 |
FOOTREST ASM Price: $62.29 |
| 17 |
530071752 |
Kit-Carb. Zama (C1U-W18) Price: $29.99 |
| 17 |
88-1680-01 |
BRACKET-FOOTREST Price: $17.86 |
| 18 |
3220-5 |
NUT-JAM Price: $0.65 |
| 18 |
530057585 |
Air Box Price: $7.99 |
| 19 |
21-0141 |
RH BALL JOINT ASM Price: $109.12 |
| 19 |
530016429 |
Screw Price: $1.99 |
| 20 |
3220-3 |
NUT-HJ Price: $0.28 |
| 20 |
530057781 |
Foam-Air Filter Price: $1.99 |
| 21 |
32128-25 |
NUT-HF Price: $3.19 |
| 21 |
530057584 |
Cover-Air Box Price: $4.99 |
| 22 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 22 |
530039223 |
Ignition Module Price: $16.17 |
| 23 |
28-5220 |
FRICTION WHEEL ASM Price: $108.15 |
| 23 |
530038604 |
Coupling-Drive Price: $1.99 |
| 24 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 24 |
530016357 |
Screw Price: $1.99 |
| 25 |
530014663 |
Assy-Leadwire Price: $5.99 |
| 25 |
88-1650 |
SHAFT-PEDAL, TRACTION Price: $55.18 |
| 26 |
530014662 |
Assy-Ground Wire Price: $4.99 |
| 26 |
88-1640 |
PIN-PEDAL, TRACTION Price: $17.64 |
| 27 |
108-1380 |
LH BRAKE CABLE ASM This part replaces 21-3380. Price: $162.33 |
| 27 |
530016392 |
Screw Price: $1.99 |
| 28 |
108-1379 |
RH BRAKE CABLE ASM This part replaces 21-3370. Price: $162.33 |
| 28 |
530058600 |
Assy.-Fan Hsg Price: $14.99 |
| 29 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 29 |
530071356 |
Kit-Switch Price: $4.99 |
| 30 |
3-7243 |
SPRING-EXTENSION Price: $11.23 |
| 30 |
530027569 |
Handle-Starter Price: $1.99 |
| 31 |
530071767 |
Kit - Rope Price: $3.99 |
| 31 |
88-1670 |
PIVOT BRACKET ASM Price: $109.29 |
| 32 |
530016386 |
Screw This part replaces 530015810. Price: $5.99 |
| 32 |
88-0470 |
TUBE-SPACER, PEDAL Price: $10.25 |
| 33 |
23-2270 |
BUSHING-RUBBER Price: $17.07 |
| 33 |
530016124 |
Nut Price: $1.99 |
| 34 |
23-2240-03 |
PUMP CONTROL TUBE ASM Price: $209.72 |
| 34 |
530057588 |
Clip-Spring Price: $1.99 |
| 35 |
530016430 |
Screw Price: $2.99 |
| 35 |
94-3304-01 |
SUPPORT-PEDAL Price: $121.34 |
| 36 |
545008010 |
STARTER SPRING This part replaces 530042085. Price: $3.99 |
| 37 |
530071786 |
Kit-Pulley-Starter Price: $3.99 |
| 38 |
530027523 |
Retainer-Pulley Price: $2.99 |
| 39 |
530015775 |
Screw Price: $1.99 |
| 40 |
530015828 |
Washer-Flat Price: $1.99 |
| 41 |
530054115 |
Assy-Flywheel Price: $27.99 |
| 43 |
530015941 |
Retain. Ring-C'shaft Price: $1.99 |
| 44 |
530055728 |
Outer Bearing Price: $6.99 |
| 45 |
530019264 |
Seal-C'case Price: $2.99 |
| 46 |
738210101 |
BEARING BALL 6001 This part replaces 530032125. Price: $8.99 |
| 47 |
530049817 |
CONNECTING ROD ASSY This part replaces 530069945. Price: $6.99 |
| 48 |
530071750 |
O-Ring-C'case (kit) Price: $8.99 |
| 50 |
530016386 |
Screw Price: $5.99 |
| 51 |
530057580 |
Shroud-Rear Green Price: $7.99 |
| 51 |
545011004 |
Shroud-Rear Black Price: $2.99 |
| 52 |
530016431 |
Retainer-Tank Price: $3.99 |
| 54 |
530014347 |
Assy-Fuel Cap Price: $4.49 |
| 55 |
530069247 |
Kit-Fuel Line (Small) Price: $3.69 |
| 56 |
530069216 |
Kit-Fuel Line (Large) Price: $3.99 |
| 57 |
530095646 |
Assy-Fuel Pickup Price: $2.69 |
