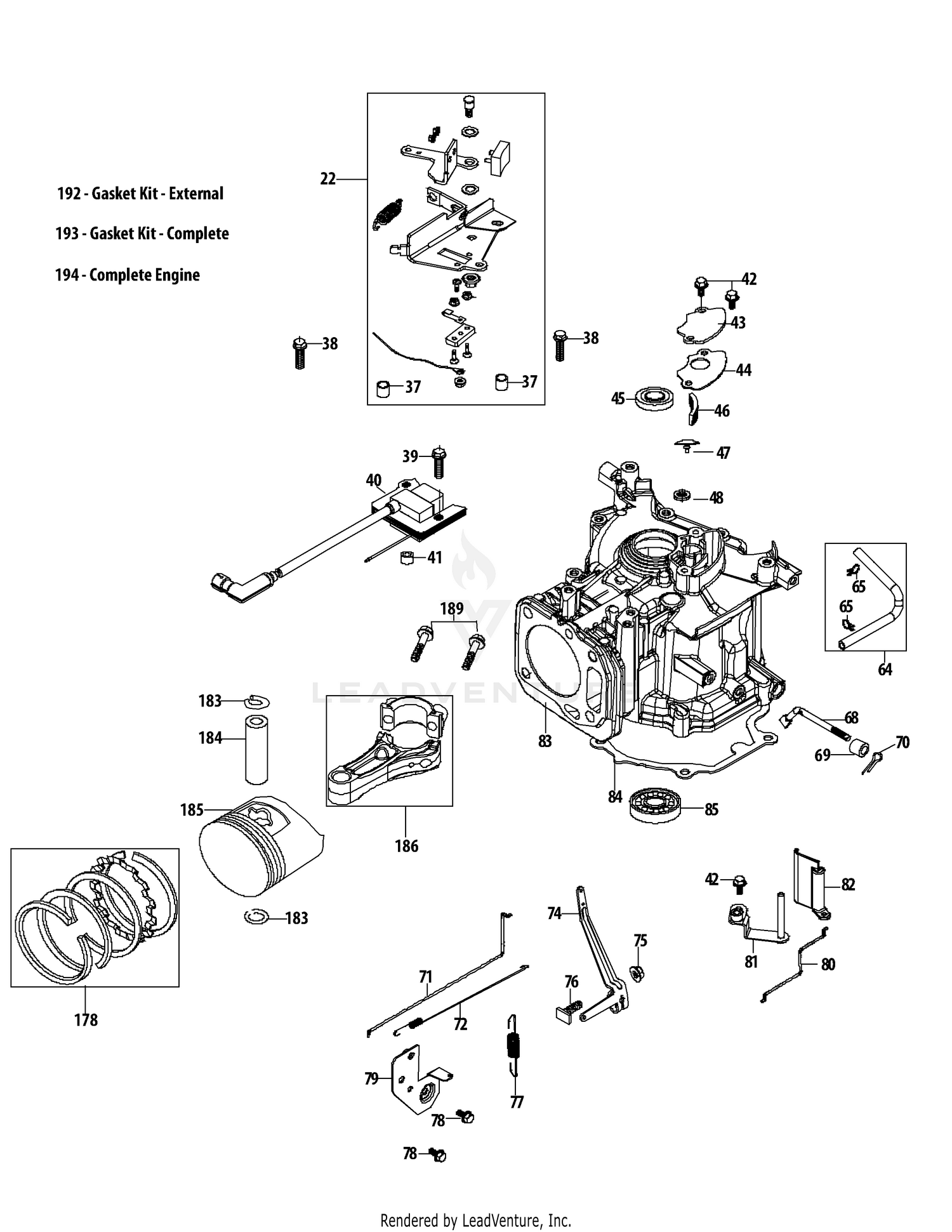

| Ref | Part Number | Description |
|---|
| 22 |
951-10320A |
Stop Switch and Brake Ass'y Price: $34.99 |
| 37 |
750-05384 |
Brake Spacer Price: $3.39 |
| 38 |
710-04980 |
Bolt M6X35 Price: $3.42 |
| 39 |
710-04969 |
Bolt M6X30 Price: $3.66 |
| 40 |
951-10367 |
Ignition Coil Assembly Price: $95.86 |
| 41 |
750-05383 |
IGNITION COIL SPACER Not Available Price: |
| 42 |
710-04916 |
Bolt M6X14 Price: $3.86 |
| 43 |
951-12684 |
Breather Cover Plate Price: $6.12 |
| 44 |
951-11729 |
Breather Gasket This part replaces 951-11613. Price: $4.66 |
| 45 |
951-11596A |
UPPER CRANKSHAFT SEAL This part replaces 951-11596. Price: $5.44 |
| 46 |
951-11730 |
Breather Screen Price: $4.75 |
| 47 |
951-12685 |
Breather Valve Price: $5.15 |
| 48 |
951-12686 |
Breather Valve Base Price: $5.15 |
| 64 |
951-11520 |
Breather Hose Assembly Price: $5.48 |
| 65 |
726-04101 |
Breather Hose Clamp Not Available Price: |
| 68 |
951-11621 |
GOVERNOR ARM SHAFT This part replaces 951-11608. Price: $8.68 |
| 69 |
951-11902A |
OIL SEAL This part replaces 951-11574. Price: $3.36 |
| 70 |
714-04078 |
Cotter Pin This part replaces 714-04074. Price: $3.66 |
| 71 |
951-11521 |
Throttle Linkage Price: $5.76 |
| 72 |
951-11522 |
Throttle Linkage Spring Price: $5.08 |
| 74 |
951-11523 |
Governor Arm Price: $7.72 |
| 75 |
712-05015 |
Nut M6 This part replaces 712-04212. Price: $5.78 |
| 76 |
710-04908 |
Governor Arm Bolt Price: $5.65 |
| 77 |
951-11273 |
Governor Spring Price: $6.30 |
| 78 |
710-04915 |
Bolt M6X12 Price: $3.82 |
| 79 |
951-11544 |
Component Bracket Price: $5.87 |
| 80 |
951-11524 |
CHOKE LINKAGE ROD Not Available Price: |
| 81 |
951-11792 |
AIR VANE BRACKET Not Available Price: |
| 82 |
951-11529A |
AIR VANE This part replaces 951-11529. Price: $6.25 |
| 84 |
951-11732 |
Crankcase Cover Gasket Price: $11.58 |
| 85 |
951-11369 |
Main Bearing Price: $30.42 |
| 178 |
951-11688 |
Piston Ring Set Price: $17.30 |
| 183 |
951-11603 |
Piston Pin Snap Ring Price: $3.53 |
| 184 |
951-11604 |
Piston Pin Price: $6.66 |
| 185 |
951-11605 |
PISTON Not Available Price: |
| 186 |
951-11744 |
CONNECTING ROD ASSEMBLY Not Available Price: |
| 189 |
710-05162 |
CONNECTING ROD BOLT Not Available Price: |
