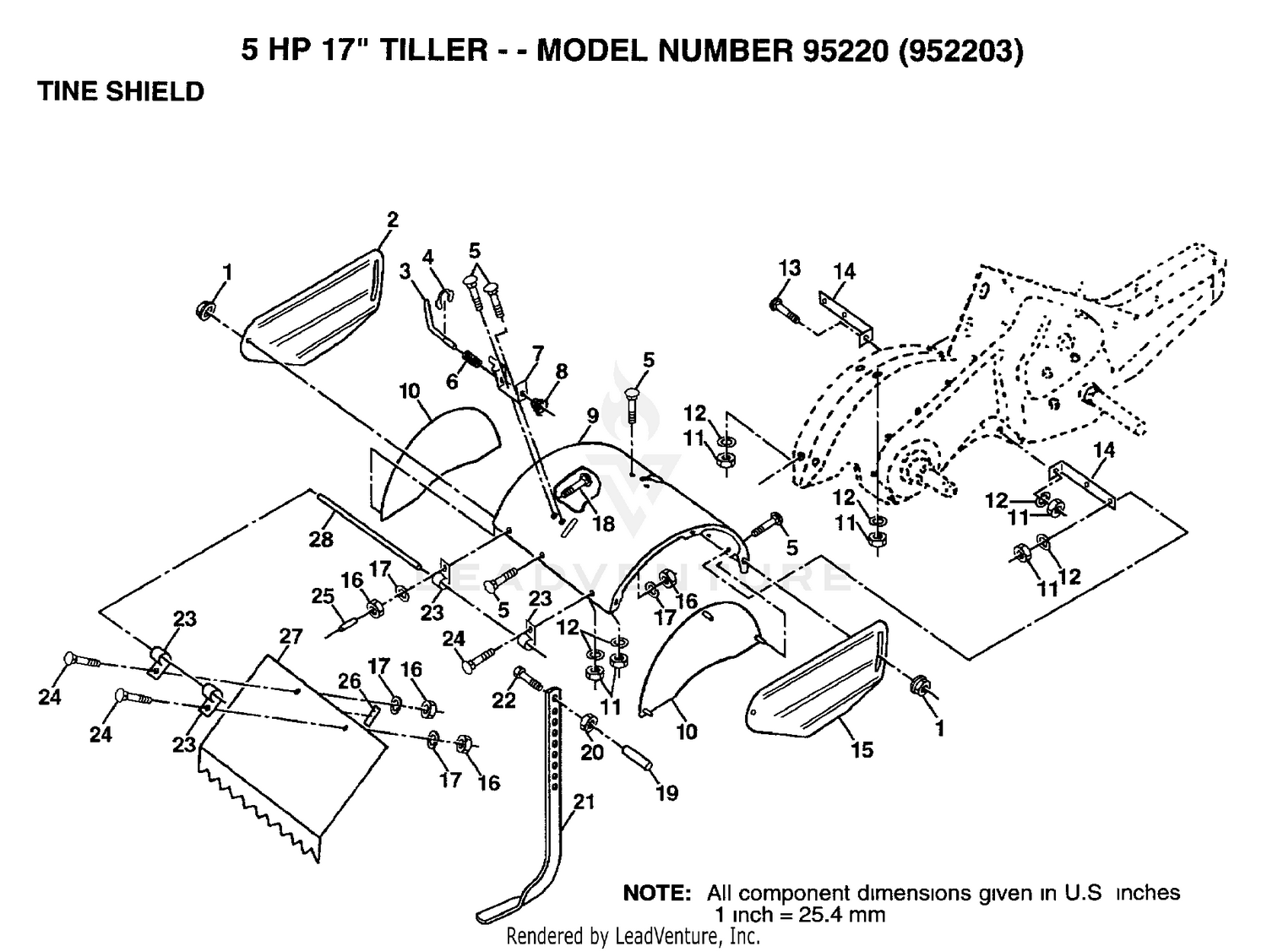

TINE SHIELD
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 131406340 | Atomiser Price: Call Us |
| 1 | 98000129 | NUT Price: Call Us |
| 2 | 104086X520 | SHIELD.SD.OUT.LH Price: Call Us |
| 2 | 131446069 | Nut Price: Call Us |
| 3 | 131426210 | Washer Price: Call Us |
| 3 | 8393J | STAKE PIN TI Price: Call Us |
| 4 | 12000036 | KLIP RING TI Price: Call Us |
| 4 | 131446065 | Body Price: Call Us |
| 5 | 131437250 | Shim +.090mm Price: Call Us |
| 5 | 72140506 | BOLT Price: Call Us |
| 6 | 131446066 | Spring Price: Call Us |
| 6 | 8394J | SPRING TI Price: Call Us |
| 7 | 131446070 | Pin Price: Call Us |
| 7 | 8392J | LATCH BRACKET TI Price: Call Us |
| 8 | 109230X | SPRING CRT Price: Call Us |
| 8 | 131446068 | Spacer Price: Call Us |
| 9 | 102326X520 | SHIELD.TINE Price: Call Us |
| 9 | 131416150 | Nozzle Price: Call Us |
| 10 | 104085X520 | SHIELD.SIDE Price: Call Us |
| 11 | 73220500 | NUT.HEX.5/16-18 Price: Call Us |
| 12 | 10040500 | LOCKWASHER Price: Call Us |
| 13 | 72110510 | BOLT Price: Call Us |
| 14 | 124343X | BRKT SHIELD TINE Price: Call Us |
| 15 | 104101X520 | SHIELD.SD.OUT.RH Price: Call Us |
| 16 | 73220400 | SUB= 50675 Price: Call Us |
| 17 | 10040400 | LOCKWASHER Price: Call Us |
| 18 | 72040410 | BOLT Price: Call Us |
| 19 | 102701X | GRIP CRT Price: Call Us |
| 20 | 73220600 | NUT.HEX.3/8-16UNC Price: Call Us |
| 21 | 102156X500 | STAKE DEPTH 16 Price: Call Us |
| 22 | 74930632 | BOLT Price: Call Us |
| 23 | 4440J | HINGE CRT Price: Call Us |
| 24 | 72140404 | BOLT Price: Call Us |
| 25 | 6712 | J VINYL CAP TI Price: Call Us 6712 J |
| 26 | 109227X | PAD IDLER TI Price: Call Us |
| 27 | 102695X520 | SHIELD.LEVELING Price: Call Us |
