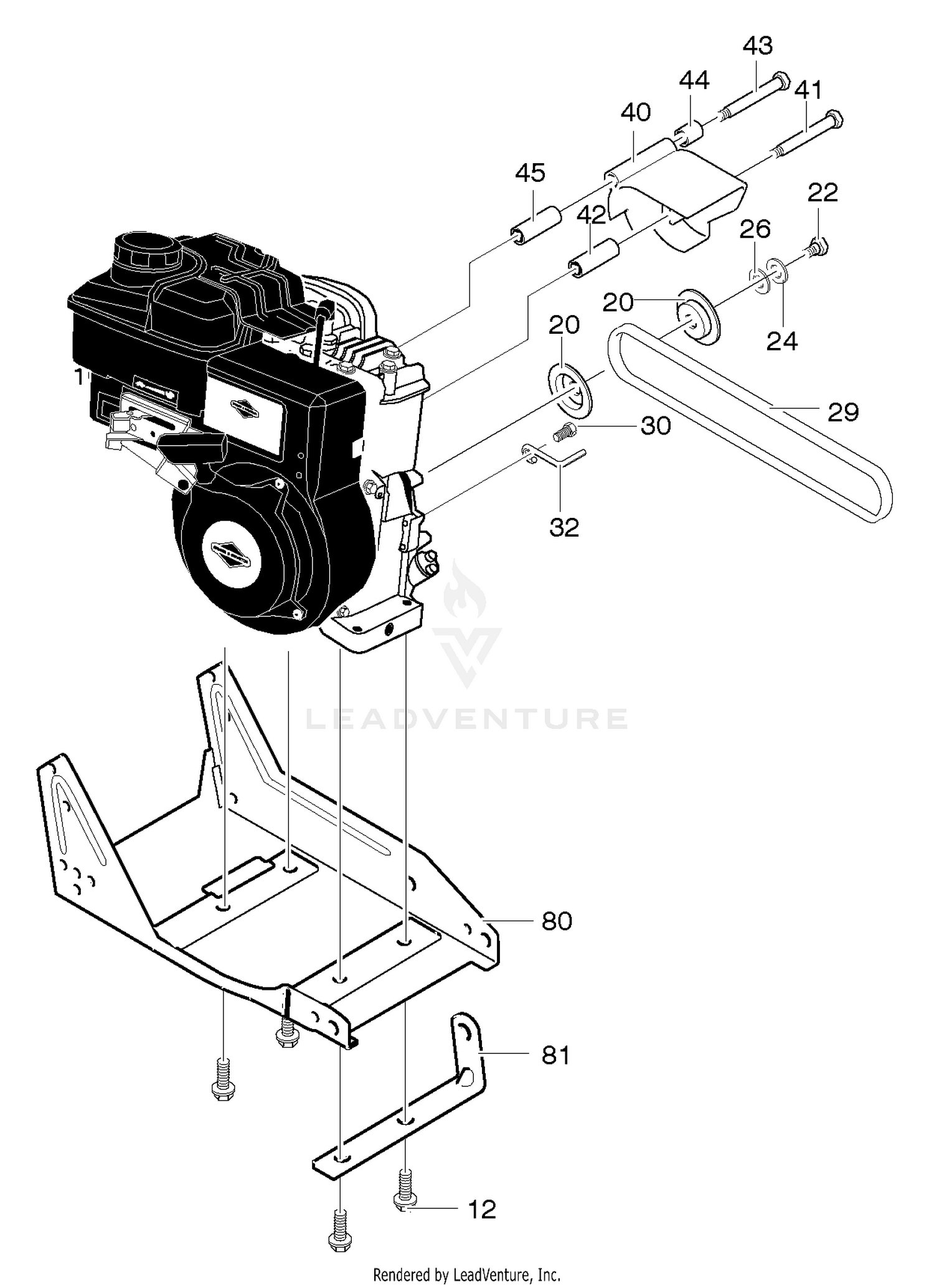

| Ref | Part Number | Description |
|---|
| 1 |
92-1812 |
SHAFT-PIVOT, LIFT Price: $51.90 |
| 2 |
32144-109 |
SCREW-THD Price: $1.29 |
| 3 |
323-9 |
SCREW-HH Price: $1.29 |
| 4 |
92-1818-01 |
ARM-SPRING, TENSION This part replaces 92-1818. Price: $13.39 |
| 5 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 6 |
94-5095 |
LIFT ARM ASM - SERVICE Price: $197.64 |
| 7 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 8 |
93-6696 |
DECAL-WARNING Price: $14.78 |
| 9 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 10 |
322-4 |
SCREW-HH Price: $0.35 |
| 11 |
256-115 |
WASHER-THRUST Price: $1.90 |
| 12 |
601000835 |
SCREW SELF-TAP 3/8-16X1 IN Price: $2.53 |
| 12 |
99-2338 |
SHAFT-PIVOT This part replaces 94-5069. Price: $101.09 |
| 13 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 14 |
3234-32 |
SCREW-HHF Price: $8.48 |
| 15 |
5-0743-03 |
SPRING-MOWER This part replaces 5-0743. Price: $188.53 |
| 16 |
93-6912 |
DISCONTINUED Price: Call Us |
| 17 |
283-75 |
PIN-CLEVIS Price: $1.56 |
| 18 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 19 |
125-5196 |
BUSHING This part replaces 3-0348. Price: $6.00 |
| 20 |
601002203 |
PULLEY, HALF V3L Price: $22.99 |
| 21 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 22 |
601001327 |
SCREW Price: $4.95 |
| 22 |
93-6738 |
CHAIN Price: $13.80 |
| 23 |
323-18 |
SCREW-HH Price: $0.82 |
| 24 |
601000023 |
WASHER, HVSPTLK .328X.60X Price: $2.99 |
| 24 |
62-7300 |
CHAIN Price: $9.30 |
| 25 |
282-4 |
SHACKLE Price: $32.98 |
| 26 |
283-6 |
PIN-CLEVIS Price: $1.70 |
| 26 |
601000547 |
WASHER, FLAT .333X .87X. Price: $3.99 |
| 27 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 28 |
323-7 |
SCREW-HH Price: $0.65 |
| 29 |
601000509 |
BELT, V4L 32.60LG Price: $37.99 |
| 29 |
98-3445 |
SPACER Price: $6.02 |
| 30 |
601001433 |
SCREW Price: $2.92 |
| 30 |
98-3446 |
PLATE-REINFORCEMENT Price: $11.38 |
| 32 |
601000580 |
BELT GUIDE Price: $1.99 |
| 40 |
601002204 |
COVER, ENGINE PULLEY Price: $8.99 |
| 41 |
601000080 |
Screw, 5/16-24x3.00 Price: $3.41 |
| 42 |
601002205 |
Spacer, Sleeve Price: $3.57 |
| 43 |
601002206 |
SCREW Price: $1.99 |
| 44 |
601002207 |
Spacer Price: $4.90 |
| 45 |
601002205 |
Spacer, Sleeve Price: $3.57 |
| 80 |
601002208 |
FRAME, ASSY EDGER Price: $68.99 |
| 81 |
601002209 |
Strap Price: $4.80 |
