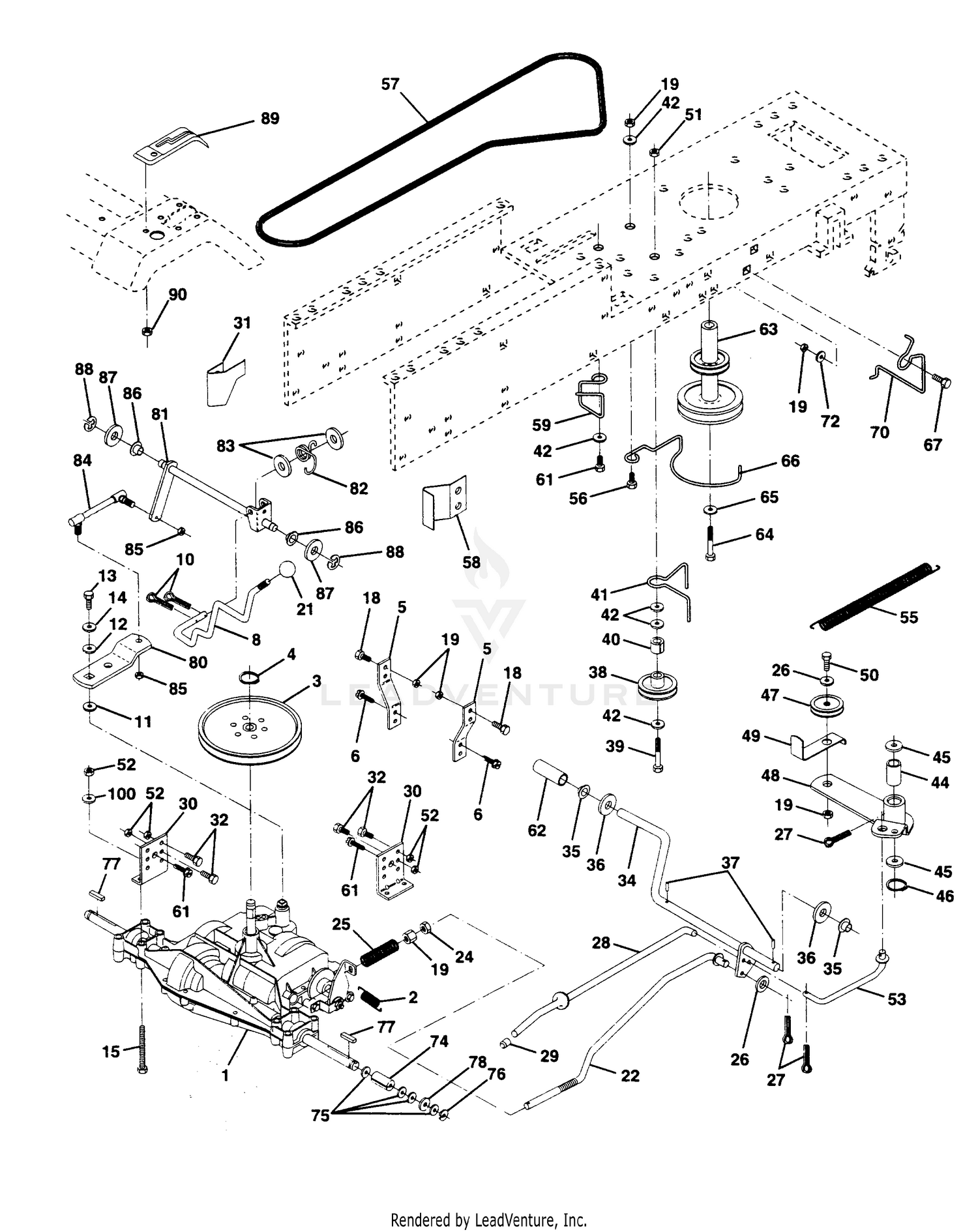

| Ref | Part Number | Description |
|---|
| 1 |
108-6715 |
GAUGE BAR ASM Price: $148.12 |
| 1 |
532142603 |
Transaxle 6sp Model No. 4360-79 (AYP part number) Price: $499.99 |
| 2 |
29-9100 |
BRUSH AND HANDLE ASM Price: $58.15 |
| 2 |
532146682 |
Spring Return Brake (AYP part number) Price: $4.99 |
| 3 |
532123666 |
Pulley Transaxle 18" tires (AYP part number) Price: $22.99 |
| 4 |
115-0803 |
ROLLER REBUILD TOOL KIT Price: $122.41 |
| 4 |
812000028 |
Ring Retainer # 5100-62 (AYP part number) Price: $4.99 |
| 5 |
125-5610 |
PAPER-REEL, TORO (10 PACK) Price: $6.02 |
| 5 |
532121520 |
Strap Torque 30 Degrees (AYP part number) Price: $3.99 |
| 6 |
140-5531 |
SHIM-TORO REEL (.002IN) This part replaces 125-5611. Price: $6.67 |
| 6 |
539976934 |
HCS 5/16C X 3/4 This part replaces 817490512. Price: $1.99 |
| 7 |
131-6828 |
INDICATOR-ANGLE Price: $69.10 |
| 8 |
532141003 |
Rod Shifter (AYP part number) Price: $10.40 |
| 10 |
876020416 |
Pin Cotter 1/8 X 1 Cad (AYP part number) Price: $3.99 |
| 11 |
532105701 |
Washer Plate Shf 388 Sq Hole (AYP part number) Price: $3.99 |
| 12 |
819151216 |
Washer 9/32 X 3/4 X 10 Ga (AYP part number) Price: Call Us |
| 13 |
871040412 |
BOLT LT This part replaces 874550412. Price: $3.99 |
| 14 |
810040400 |
Washer Lock Hvy Helical 1/4 (AYP part number) Price: $3.99 |
| 15 |
874780544 |
Bolt Fin Hex 5/16 - 18 UNC x 2.75 (AYP part number) Price: $3.99 |
| 18 |
874780616 |
Bolt Fin Hex 3/8-16unc X 1 Gr. 5 (AYP part number) Price: $3.99 |
| 19 |
873680600 |
LOCKNUT This part replaces 873800600. Price: $1.99 |
| 21 |
532106933 |
Knob Duckhead 1/2-13 UNC (AYP part number) Price: $3.99 |
| 22 |
532130804 |
Rod Brake Blk Zinc 27 326 (AYP part number) Price: $17.99 |
| 24 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $3.99 |
| 25 |
532151332 |
SPRING, BRAKE ROD This part replaces 532106888. Price: $2.99 |
| 26 |
819131316 |
Washer 13/32 X 13/16 X 16 Ga (AYP part number) Price: $2.99 |
| 27 |
876020412 |
Pin Cotter 1/8 X 3/4 Cad (AYP part number) Price: $3.99 |
| 28 |
532145204 |
Rod Brake Parking LT/YT (AYP part number) Price: $3.12 |
| 29 |
532071673 |
Cap Brake Parking Black (AYP part number) Price: $3.99 |
| 30 |
532130807 |
Bracket Mtg Transaxle (AYP part number) Price: $3.99 |
| 31 |
532127275 |
Keeper Belt LH LT 14 Ga (AYP part number) Price: $3.99 |
| 32 |
539976934 |
HCS 5/16C X 3/4 This part replaces 874760512. Price: $1.99 |
| 34 |
532149001 |
Shaft Asm Pedal Foot (AYP part number) Price: $24.99 |
| 35 |
532120183 |
Bearing Nylon Blk 629 Id (AYP part number) Price: $2.99 |
| 36 |
819211616 |
Washer 21/32 X 1 X 16 Ga (AYP part number) Price: $3.99 |
| 37 |
532001572 |
Pin, Roll, 3/16 x 1 (AYP part number) This part replaces 532124963. Price: $3.99 |
| 38 |
532123674 |
Pulley Idler Flat (AYP part number) Price: $17.99 |
| 39 |
874760644 |
Bolt Fin Hex 3/8-16unc X 2-3/4 (AYP part number) Price: $3.99 |
| 40 |
532124965 |
Spacer Split 395 X 59 Bzp (AYP part number) Price: $3.99 |
| 41 |
532109070 |
Keeper Belt Retainer (AYP part number) Price: $3.99 |
| 42 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 44 |
532105706 |
Bearing Nyl 503 X 628 X 1 25 (AYP part number) Price: $3.99 |
| 45 |
532110812 |
Washer Hardened (AYP part number) Price: $3.10 |
| 46 |
812000039 |
Ring Klip #t5304-50 (AYP part number) Price: $3.99 |
| 47 |
532139245 |
Pulley, Idler V Groove (AYP part number) This part replaces 532127783. Price: $22.99 |
| 48 |
532123789 |
Bellcrank Asm Clutch (AYP part number) Price: $13.07 |
| 49 |
532123205 |
Retainer Belt Style Spring (AYP part number) Price: $3.99 |
| 50 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 (AYP part number) This part replaces 874760624. Price: $3.99 |
| 51 |
873680600 |
Nut Crownlock 3/8-16 Unc Price: $1.99 |
| 52 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 53 |
532199652 |
LINK.CLUTCH.7.66.2005 This part replaces 532105710. Price: $8.99 |
| 55 |
532105709 |
Spring Return Clutch 6 75 (AYP part number) Price: $7.99 |
| 56 |
874760620 |
Bolt Fin Hex 3/8-16 UNC x 1-1/4 (AYP part number) Price: $3.99 |
| 57 |
532138255 |
BELT, V GROUND DRIVE 95 25 This part replaces 532130801. Price: $27.99 |
| 58 |
532127274 |
Keeper Belt RH LT Pnt/zinc 16g (AYP part number) Price: $2.99 |
| 59 |
532169691 |
KEEPER, BELT CENTER This part replaces 532140312. Price: $14.99 |
| 61 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 62 |
532008883 |
PEDAL COVER This part replaces 532124872. Price: $3.99 |
| 63 |
532140186 |
Engine Pulley (AYP part number) Price: $59.99 |
| 64 |
501606501 |
Speed Clip This part replaces 871170764. Price: $1.99 |
| 65 |
539990247 |
WASHER 7/16 LOCK This part replaces 810040700. Price: $1.99 |
| 66 |
532129921 |
Keeper Belt Engine LH LT (AYP part number) Price: $3.99 |
| 67 |
874780616 |
BOLT This part replaces 874760616. Price: $3.99 |
| 70 |
532134683 |
Guide Belt Mower Drive RH (AYP part number) Price: $5.99 |
| 72 |
819132012 |
Washer 13/32 X 1-1/4 X 12 Ga (AYP part number) Price: $2.99 |
| 74 |
532109502 |
Spacer Axle (AYP part number) Price: $3.99 |
| 75 |
532121749 |
Washer 25/32 X 1 1/4 X 16 Ga. (AYP part number) Price: $1.99 |
| 76 |
812000001 |
E-ring #5133-75 (AYP part number) Price: $2.99 |
| 77 |
532123583 |
Key Square 2 0 X 1845/ 1865 (AYP part number) Price: $2.99 |
| 78 |
532121748 |
Washer 25/32 X 1-5/8 X 16 Ga. (AYP part number) Price: $1.99 |
| 80 |
532131488 |
Arm Shift Transaxle (AYP part number) Price: $2.99 |
| 81 |
532136932 |
Shaft Asm. Cross 18" + 42" Deck (AYP part number) Price: $15.65 |
| 82 |
532123782 |
Spring Torsion T/A (AYP part number) Price: $2.99 |
| 83 |
734117771 |
BUSHING This part replaces 819171216. Price: $2.99 |
| 84 |
532132182 |
Rod Shift Adj. Tie (AYP part number) Price: $41.60 |
| 85 |
873610400 |
NUT.FIN HEX 1/4-28 UNF This part replaces 873530400. Price: $2.99 |
| 86 |
532071208 |
Bushing Rod Strg. 629/632 Id (AYP part number) Price: $3.99 |
| 87 |
819212016 |
Washer 21/32 x 1 - 1/4 x 16 Ga. (AYP part number) Price: $3.99 |
| 88 |
812000008 |
Ring Klip #5304 - 62 (AYP part number) Price: $3.99 |
| 89 |
532139964 |
Console Shift 6 st LT (AYP part number) Price: $13.39 |
| 90 |
532124346 |
Nut Self-thd Wsh-hd 1/4 Zinc (AYP part number) Price: $3.99 |
