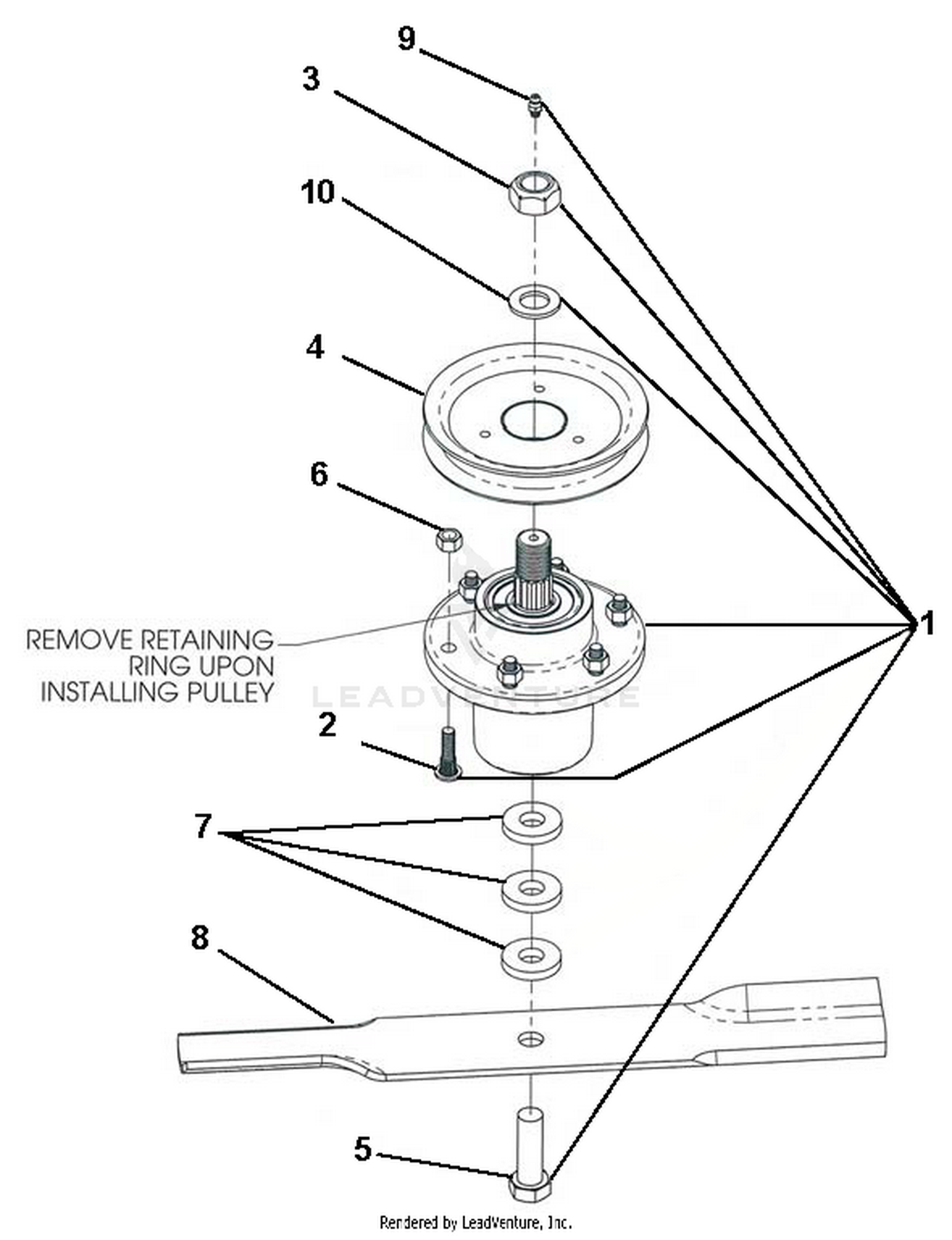

Spindle Assembly
Parts (7)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 00200262 | ASSY, SPINDLE S/O Price: $258.45 |
| 2 | 00200045 | BOLT, 3/8-16X1.25RDHD RIBNKS/O Price: $6.45 |
| 3 | 06500031 | LOCKNUT, 3/4-16 CROWN GR 8 Y Price: $3.45 |
| 5 | 05901725 | BLT, HEX .62-11X2.00 G8 ZCC This part replaces 05970002. Price: $5.45 |
| 6 | 06500917 | NUT-STD .375-16 G2 ZCC This part replaces 06529400. Price: $0.95 |
| 7 | 06401033 | WSHR,FLT .630X1.50X.25 ZCC This part replaces 06400913. Price: $6.45 |
| 9 | 00959995 | FTG, 1/4-28 STRGT GREASE ZERK Price: $3.45 |
