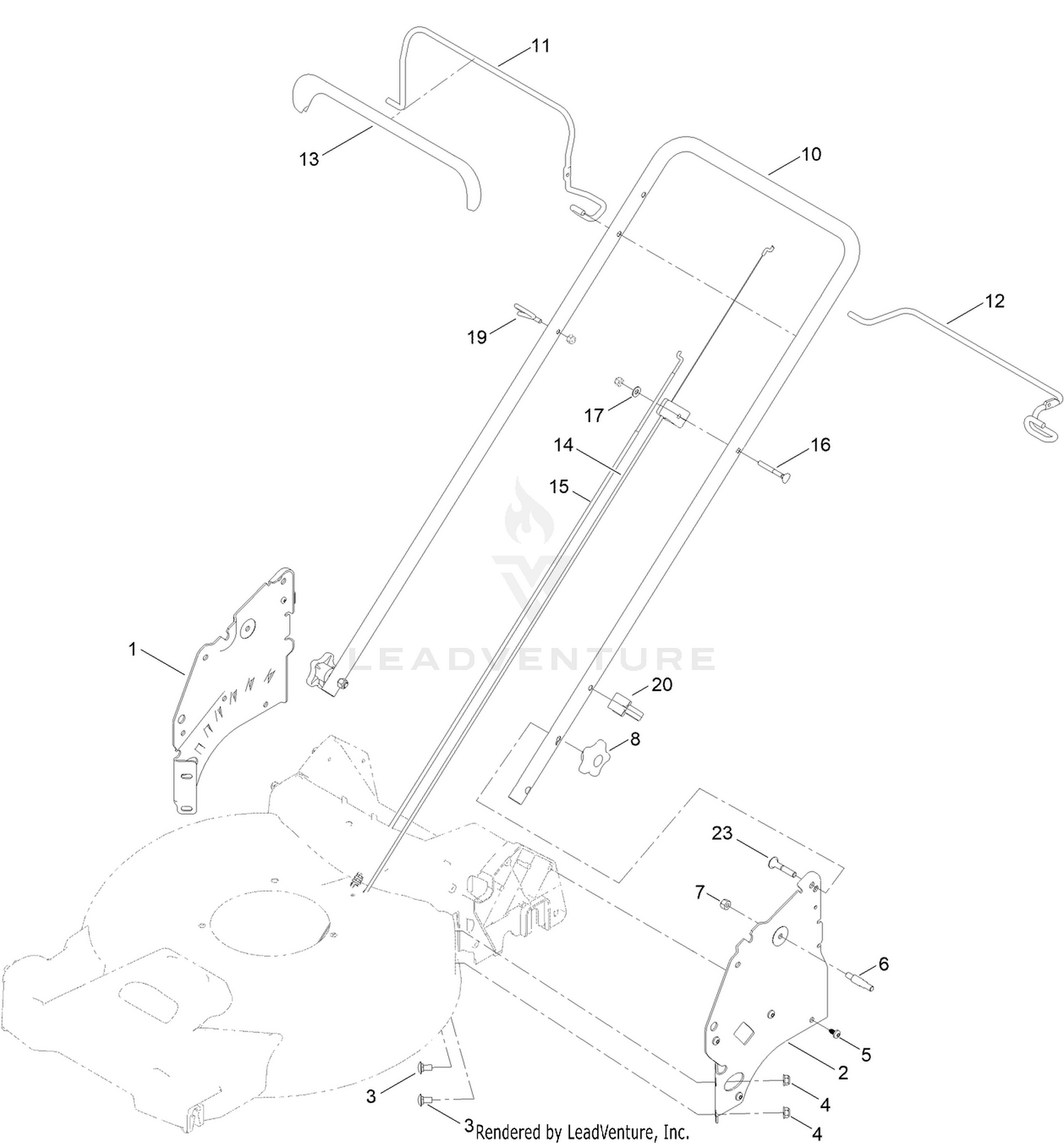

Handle Assembly
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 145-5528-05 | PLATE-HOC, RH Price: Call Us |
| 2 | 145-5527-05 | PLATE-HOC, LH [BLK-TXT] Price: Call Us |
| 3 | 3230-18 | SCREW-CARR Price: $4.09 |
| 4 | 130-6655 | NUT-FLANGE, NI Price: $0.22 |
| 5 | 139-1679 | SCREW-PLASTIC,PH Price: $0.66 |
| 6 | 139-6599 | BOLT-SHOULDER, HANDLE Price: $0.98 |
| 7 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 8 | 117-5976 | KNOB-HANDLE Price: $2.17 |
| 10 | 145-5509-05 | HANDLE-UPPER Price: Call Us |
| 11 | 138-3270-03 | BAIL-BRAKE Price: $9.61 |
| 12 | 137-4799-03 | BAIL-TRACTION Price: $11.07 |
| 13 | 137-4797 | COVER-BAIL Price: $2.84 |
| 14 | 112-8818 | CABLE-BRAKE Price: $22.47 |
| 15 | 127-0733 | CABLE-TRACTION Price: $11.70 |
| 16 | 92-2270 | SCREW-HANDLE Price: $5.42 |
| 17 | 3256-1 | WASHER-FLAT Price: $0.39 |
| 19 | 86-9671 | GUIDE-ROPE Price: $3.28 |
| 20 | 114-7988 | GUIDE-CABLE Price: $1.84 |
