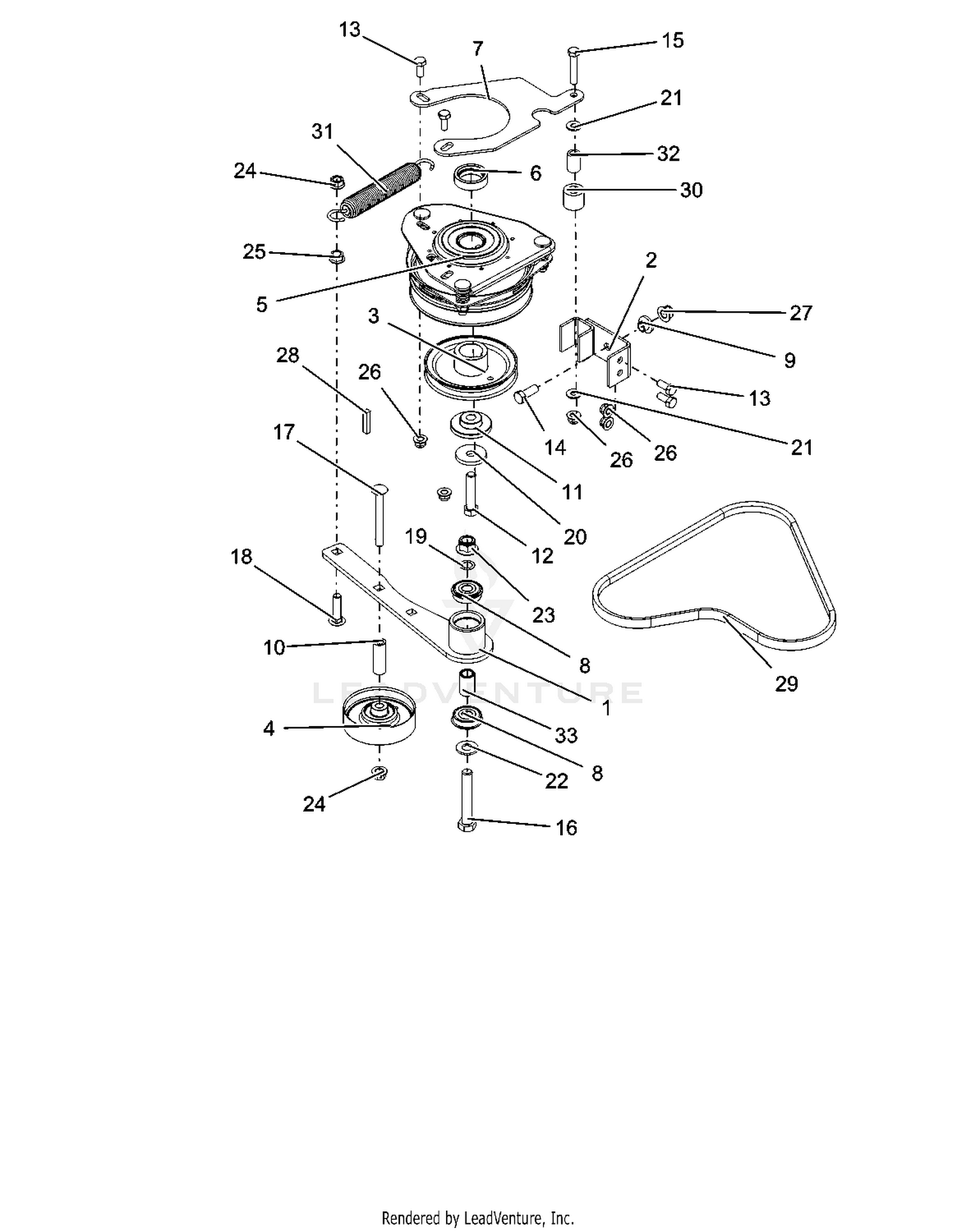

| Ref | Part Number | Description |
|---|
| 1 |
04597451 |
WLDMT, HYDRO DRIVE IDLER ARME Price: $56.95 |
| 2 |
04635851 |
WLDMT, CLUTCH STOP Price: $59.45 |
| 3 |
07340667 |
SHEAVE, ENGINE 4.50 X 1.127 Price: $173.45 |
| 4 |
07341100 |
IDLER, FLAT 3.5" NO FLANGES Price: $112.45 |
| 5 |
03789900 |
CLUTCH, OGURA GT1A-AR03 Price: $286.45 |
| 6 |
04650700 |
SPCR, CLUTCH Price: $22.95 |
| 7 |
04663951 |
PLATE, CLUTCH DOG Price: $10.45 |
| 8 |
05480000 |
BRG-BALL .50X1.38X.438 SEALED Price: $13.95 |
| 9 |
05500435 |
BSHG-FLG .385X.500X.875X.406 Price: $1.95 |
| 10 |
05501138 |
BSHG, SLV .375 X .75 X 1.75 Price: $30.95 |
| 11 |
05501206 |
BSHG-FLG .469X1.06X.574X2.0 Price: $17.45 |
| 12 |
05901916 |
BLT, HEX 0.4375-20X2 G8 ZCC NT This part replaces 05901530. Price: $3.45 |
| 13 |
05901704 |
BLT-HEX .31-18X.75 G5 ZCC This part replaces 05947000. Price: $1.45 |
| 14 |
05901711 |
BLT-HEX .38-16X1.00 G5 ZCC This part replaces 05948700. Price: $1.45 |
| 15 |
05901804 |
BLT, HEX .31-18X1.75 G5 ZCC This part replaces 05957400. Price: $2.95 |
| 16 |
05901737 |
BLT, HEX .50-13X3.00 G5 ZCC This part replaces 05959900. Price: $4.45 |
| 17 |
06200001 |
BLT-RDHDSQNK .38-16X3.25 GR5YZ Price: $3.45 |
| 18 |
06200416 |
BLT, RHSN .38-16X1.50 G5 ZCC This part replaces 06224200. Price: $3.95 |
| 19 |
06400015 |
WASHER, .500X.750X.020 THRUST Price: $0.95 |
| 20 |
06400936 |
WASHER, 7/16" SPRING DISK Price: $10.45 |
| 21 |
06401124 |
WSHR- FLT .312X.734X.065 ZCC This part replaces 06435800. Price: $0.95 |
| 22 |
06401015 |
WSHR,FLT .531X1.062X.095 ZCC This part replaces 06441900. Price: $0.95 |
| 23 |
06500810 |
NUT,NYL-FLG .50-13 GF ZCC This part replaces 06500010. Price: $1.45 |
| 24 |
06500901 |
NUT-LK-CTR-FLG .375-16 GF ZCC This part replaces 06534800. Price: $0.95 |
| 25 |
06500735 |
NUT- SPNLK-FLG .38-16 G5 ZCC This part replaces 06534900. Price: $1.45 |
| 26 |
06500809 |
NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45 |
| 27 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 28 |
06603400 |
KEY-SQ .25 X 1.25 X .25 SAE Price: $3.45 |
| 29 |
07200641 |
BELT, 4L RAW EDGE 37.900" Price: $25.95 |
| 30 |
07500007 |
BUMPER,RUBBER .62X1.0X.88 LG Price: $5.45 |
| 31 |
08300513 |
SPRING, EXTENSION 1.0 X 6.65 Price: $30.95 |
| 32 |
08833400 |
BUSH.,S.391X.622X.950 ST Price: $5.45 |
