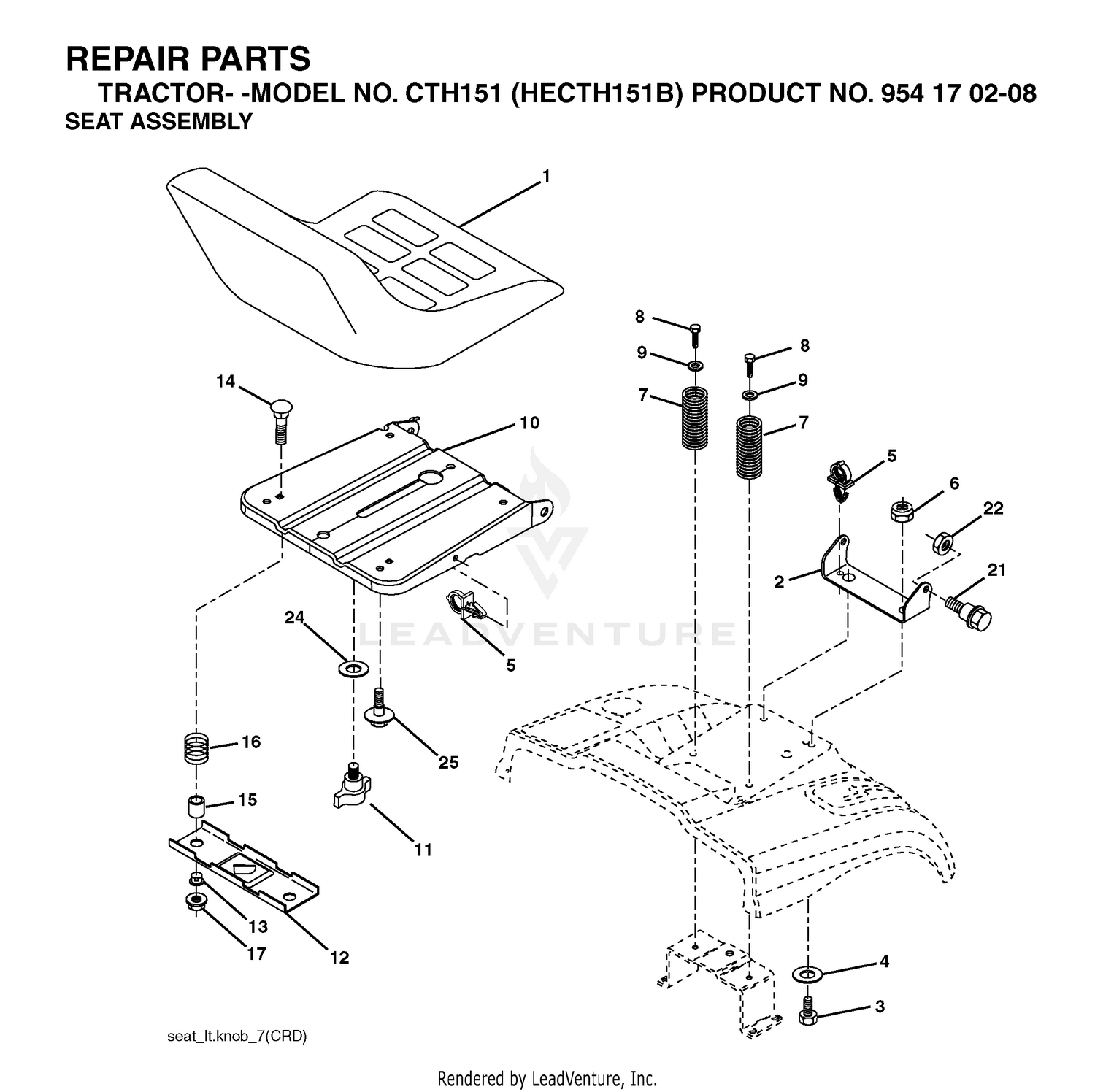

| Ref | Part Number | Description |
|---|
| 1 |
532401042 |
SEAT.XG090.BLK.KB/BLT.NO-LOG This part replaces 532184992. Price: $149.99 |
| 2 |
531152401 |
SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 3 |
871110616 |
BOLT, HEX 3/8-16X1 Price: $3.99 |
| 4 |
819131610 |
WASHER PM Price: $4.99 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 8 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 9 |
596140201 |
Washers This part replaces 819131614. Price: $2.99 |
| 10 |
107-7848 |
UPPER GASKET KIT Price: $323.93 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT This part replaces 532182493. Price: $17.99 |
| 11 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT Price: $6.99 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $8.99 |
| 13 |
532121248 |
BUSHING Price: $4.99 |
| 15 |
532134300 |
SPACER SPLIT 28X.96 Price: $3.99 |
| 16 |
532121250 |
SPRING Price: $3.99 |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 20 |
108-6573 |
GASKET-HEAD, CYLINDER Price: $208.72 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 22 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 24 |
819171912 |
WASHER Price: $3.99 |
| 25 |
532127018 |
BOLT,SHOULD Price: $4.99 |
| 30 |
98-9615 |
GASKET-COVER, HEAD Price: $20.34 |
| 40 |
98-9609 |
GASKET-MANIFOLD, INLET Price: $26.16 |
| 50 |
99-8343 |
GASKET-MUFFLER Price: $14.99 |
| 60 |
99-8327 |
GASKET-MANIFOLD, EXHAUST Price: $19.14 |
| 70 |
98-9638 |
GASKET-FLANGE, WATER Price: $3.74 |
| 80 |
105-3748 |
GASKET-THERMOSTAT Price: $4.31 |
| 90 |
99-3446 |
O-RING Price: $7.11 |
| 100 |
98-9454 |
GASKET Price: $1.43 |
