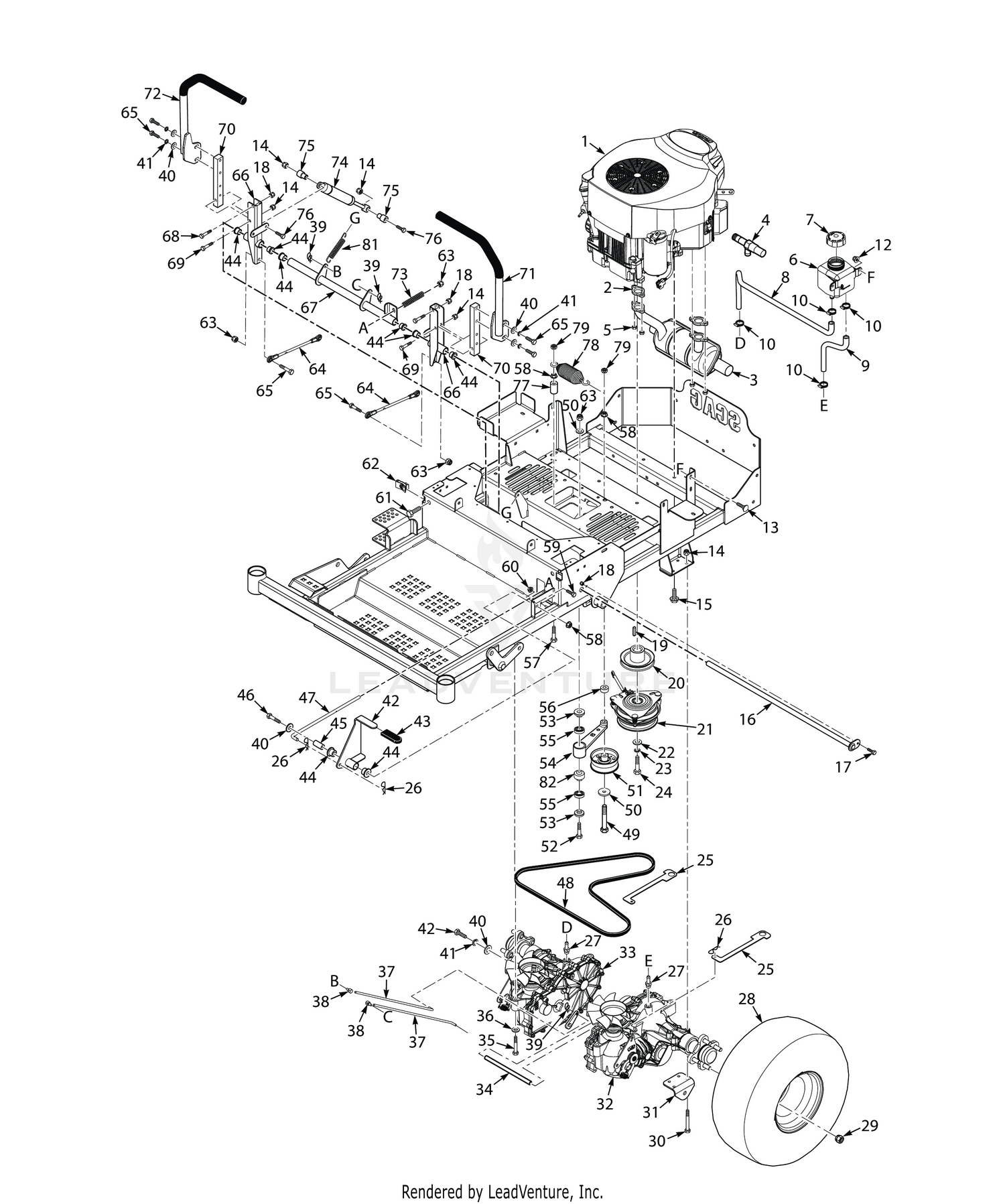

| Ref | Part Number | Description |
|---|
| 3 |
485225 |
Muffler, Kawasaki FR651V & FR691V Price: Call Us |
| 3 |
485336 |
Muffler, Kohler KT Price: Call Us |
| 4 |
484706 |
Hose, Oil Drain - Kohler CV & CV-EFI Price: Call Us |
| 5 |
04121-01 |
Nut, M6-1.0 Hex Flange Price: Call Us |
| 6 |
483438 |
Reservoir Assembly Price: Call Us |
| 7 |
483514 |
Cap, Hydraulic Tank Price: Call Us |
| 8 |
485402 |
Hose, RH Transmission Price: Call Us |
| 9 |
485401 |
Hose, LH Transmission Price: Call Us |
| 10 |
48136-05 |
Clamp, Cable 3/4" I.D. Price: Call Us |
| 11 |
48136-13 |
Clamp, .69" Max. / .25" Min. Dia. Price: Call Us |
| 12 |
04117-03 |
Nut, Flanged Elastic Stop 1/4-20 Price: Call Us |
| 13 |
04003-02 |
Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4" Price: Call Us |
| 14 |
04021-10 |
HEX NUT, ELASTIC STOP LOCK, 5/16-18 Price: Call Us |
| 15 |
04011-07 |
Bolt, Hex Head Self-Tap 3/8-16 x 1-1/4" (Kohler x3 - 25EFI, Kohler x4 - 29EFI) Price: Call Us |
| 16 |
452620 |
Shaft Weldment, Control Arm Price: Call Us |
| 17 |
04001-06 |
BOLT, HEX HEAD, 1/4-20 X 5/8 Price: Call Us |
| 18 |
04021-08 |
HEX, NUT, ELASTIC STOP LOCK, 1/4-20 Price: Call Us |
| 19 |
04063-01 |
Key, 1/4 x 1/4 x 1.25" Pulley Mtg. Price: Call Us |
| 20 |
485956 |
Pulley, 4-1/2" - 1" Bore Price: Call Us |
| 20 |
486326 |
Pulley, 4-1/2" - 1.125" Bore (SZL-61) Price: Call Us |
| 21 |
462228 |
Electric Clutch Assembly - SFZ52 & SFZ61 Price: Call Us |
| 21 |
462715 |
Electric Clutch Assembly Price: Call Us |
| 22 |
04041-28 |
Flatwasher, 7/16-.469 x 1.75 x .25 (48, 52) Price: Call Us |
| 23 |
04030-05 |
Lockwasher, 7/16” Spring Price: Call Us |
| 24 |
04102-06 |
Bolt, Hex Head 7/16-20 x 3" w/t Patch Price: Call Us |
| 25 |
426592 |
Lever, Dump Valve Price: Call Us |
| 26 |
04062-02 |
HAIR PIN, .08 DIAMETER X 1-3/16" Price: Call Us |
| 27 |
482800- |
Fitting, O-Ring x 3/8" Hose Price: Call Us |
| 28 |
481868 |
Rim w/Valve Stem (48, 52, 61) Price: Call Us |
| 28 |
483389 |
Tire, 20 x 10-8 2-Ply (48, 52, 61) Price: Call Us |
| 28 |
483390 |
Wheel Assembly (48, 52) Price: Call Us |
| 28 |
485948 |
WHEEL ASSY, 20 X 10-10 Price: Call Us |
| 28 |
485949 |
RIM W/ VALVE STEM Price: Call Us |
| 29 |
04028-02 |
Wheel Nut, 1/2-20 x 13/16 Price: Call Us |
| 30 |
04001-49 |
Bolt, Hex Head 5/16-18 x 3.00" Price: Call Us |
| 31 |
424489 |
Bracket, Push Arm Link Price: Call Us |
| 32 |
485339 |
Transaxle, LH - SZL Price: Call Us |
| 32 |
486038 |
Transaxle, LH - SZL-61 Price: Call Us |
| 33 |
485340 |
Transaxle, RH - SZL Price: Call Us |
| 33 |
486039 |
Transaxle, RH - SZL-61 Price: Call Us |
| 34 |
43984 |
Spacer Price: Call Us |
| 35 |
04001-39 |
BOLT, HEX HEAD, 5/16-18 X 2-1/4 Price: Call Us |
| 36 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI) Price: Call Us |
| 37 |
44218 |
Rod, Brake Price: Call Us |
| 38 |
43876 |
Joint, Swivel Price: Call Us |
| 39 |
04069-01 |
Pin, Rue Cotter 3/8" Diameter Price: Call Us |
| 40 |
04041-07 |
Flatwasher, 3/8" Special (.391 x .938 x .105) Price: Call Us |
| 41 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 42 |
463105 |
Bearing Price: Call Us |
| 43 |
482102 |
Grip, Brake Handle Price: Call Us |
| 44 |
483453-05 |
Bearing Price: Call Us |
| 45 |
43969 |
Pivot, Brake Lever Price: Call Us |
| 46 |
04001-31 |
Capscrew, Hex Head 3/8-16 x 2-1/2" Price: Call Us |
| 47 |
44231 |
Rod, Upper Brake Linkage This part replaces 44219. Price: Call Us |
| 48 |
485349 |
Belt, Transmission -SZL Price: Call Us |
| 49 |
04001-51 |
Capscrew, Hex Head 3/8-16 x 3-3/4" Price: Call Us |
| 50 |
04043-04 |
Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8 Price: Call Us |
| 51 |
486045 |
Pulley, 3-1/2" Dia. Price: Call Us |
| 52 |
04001-54 |
Bolt, Hex Head 3/8-16 x 3" - 52" Price: Call Us |
| 53 |
431049 |
Spacer, Controls Price: Call Us |
| 54 |
463017 |
Trans. Idler Arm Assy. (Includes 24, 79) Price: Call Us |
| 55 |
48224 |
BEARINGS, BALL, NEUTRAL RETURN Price: Call Us |
| 56 |
43720 |
Spacer, Idler Pulley - SFZ61 Price: Call Us |
| 57 |
04001-45 |
Capscrew, Hex Head 3/8-16 x 2.0" Price: Call Us |
| 58 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 59 |
04001-14 |
Capscrew, Hex Head 1/4-20 x 1" Price: Call Us |
| 60 |
04019-02 |
NUT, 1/4-20 SERRATED FLANGE HEX HEAD Price: Call Us |
| 61 |
04107-05 |
Bolt, Hex Head 3/8-16 x 2-1/2" Soecial Lock Price: Call Us |
| 62 |
04110-03 |
U-Nut, 3/8-16 (short) Price: Call Us |
| 63 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 64 |
485312 |
Linkage, Pump Price: Call Us |
| 65 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 66 |
462797 |
Control Arm Assembly Price: Call Us |
| 67 |
463019 |
Bellcrank Assembly (incl. 44) Price: Call Us |
| 68 |
04001-02 |
Bolt, Hex Head, 1/4-20 x 1-1/4" Price: Call Us |
| 69 |
04001-12 |
Bolt, Hex Head 5/16-18 x 1-1/2" - Front Price: Call Us |
| 70 |
422372 |
Bar, Control Lever Price: Call Us |
| 71 |
462740 |
Handlebar w/Grip Price: Call Us |
| 71 |
484376 |
Grip, Control Handle Price: Call Us |
| 72 |
462741 |
Handlebar w/Grip Price: Call Us |
| 72 |
484376 |
Grip, Control Handle Price: Call Us |
| 73 |
483538 |
Spring, Brake Price: Call Us |
| 74 |
484193 |
Damper, Steering Price: Call Us |
| 75 |
43602 |
Spacer, Pump Dampener Price: Call Us |
| 76 |
04001-11 |
Bolt, Hex Head 5/16-18 x 1-1/2" (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 77 |
43674 |
Spacer, Idler Pulley - SFZ52 Price: Call Us |
| 78 |
483112 |
Spring, Transmission Drive Price: Call Us |
| 79 |
04021-05 |
Bolt, Hex Head 3/8-16 x 1" Ser. Flg. Price: Call Us |
| 80 |
04001-04 |
Bolt, Hex Head, 1/4-20 x 1-1/2" Price: Call Us |
| 81 |
483600 |
Spring, Deck Latch Price: Call Us |
