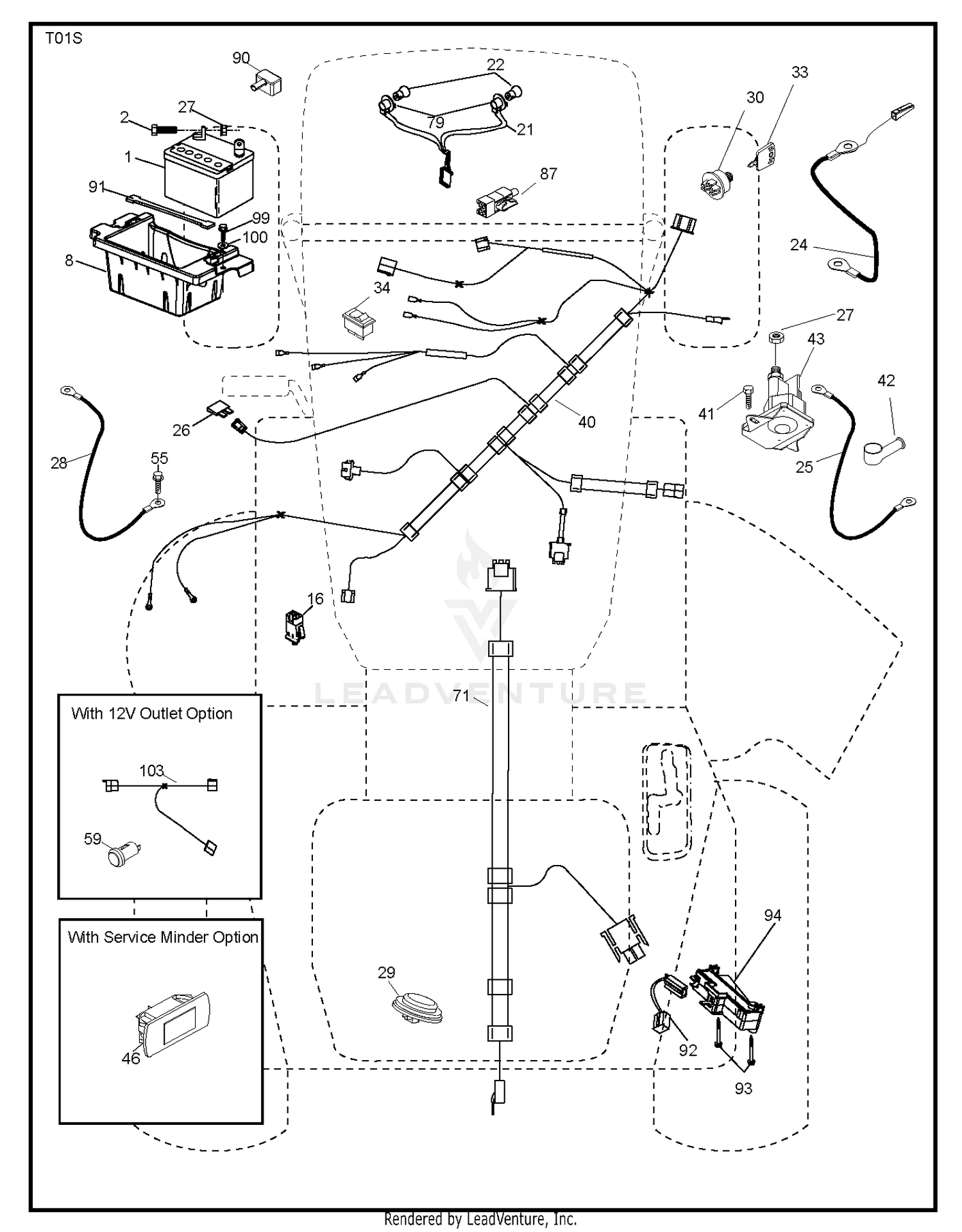

| Ref | Part Number | Description |
|---|
| 1 |
3290-277 |
NUT-SPEED Price: $0.61 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $139.99 |
| 2 |
27-2850 |
DISCONTINUED This part replaces 10-7360. Price: Call Us |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 4 |
10-9100 |
DISCONTINUED Price: Call Us |
| 5 |
23-4800 |
THROTTLE CONTROL This part replaces 10-7400. Price: $77.20 |
| 6 |
321-15 |
SCREW-HH Price: $0.61 |
| 7 |
12-8150 |
DISCONTINUED Price: Call Us |
| 8 |
323-14 |
SCREW-HH Price: $1.34 |
| 8 |
532186491 |
BOX.BATTERY.MOUNT.FRONT.LT Price: $11.99 |
| 9 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 10 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 11 |
HY2562 |
DISCONTINUED This part replaces 256-2. Price: Call Us |
| 12 |
5-2653 |
PULLEY ASM Price: $38.12 |
| 13 |
351-34 |
SEAT & BACK CUSHION Price: $904.58 |
| 14 |
321-2 |
SCREW-HH Price: $2.79 |
| 15 |
3218-1 |
NUT-JAM Price: $1.29 |
| 16 |
351-36 |
LOWER SLIDE Price: $137.29 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $11.99 |
| 17 |
322-1 |
SCREW-HH Price: $0.22 |
| 18 |
351-35 |
DISCONTINUED Price: Call Us |
| 19 |
351-52 |
DISCONTINUED Price: Call Us |
| 20 |
10-6480 |
DISCONTINUED Price: Call Us |
| 21 |
3219-14 |
NUT-HEX Price: $0.25 |
| 21 |
532183759 |
HARNESS ASSY LIGHT Price: $29.99 |
| 22 |
532004152 |
LIGHTBULB Price: $2.99 |
| 22 |
62-7770 |
KEY-IGNITION This part replaces 218-412. Price: $4.39 |
| 23 |
12-8140 |
KEY SWITCH Price: $39.86 |
| 24 |
585555601 |
CABLE.FRBATT.W/WIRE.8GA.8 This part replaces 532400253. Price: $4.99 |
| 24 |
7-6130 |
DISCONTINUED Price: Call Us |
| 25 |
32140-16 |
DISCONTINUED Price: Call Us |
| 25 |
532412894 |
CABLE.STARTER.6GA.BL/RED.14. Price: $11.99 |
| 26 |
532175158 |
FUSE 20AMP Price: $3.99 |
| 26 |
67-1300 |
DECAL This part replaces 10-8160. Price: $29.99 |
| 27 |
321-6 |
SCREW-HH Price: $0.25 |
| 27 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 873510400. Price: $2.99 |
| 28 |
120-2244 |
HOURMETER This part replaces 12-9990. Price: $48.06 |
| 28 |
532145491 |
CABLE GROUND 6 GA 21" 90T BLK Price: $6.99 |
| 29 |
12-7840 |
DISCONTINUED Price: Call Us |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $24.99 |
| 30 |
101450 |
REGULATOR-RECTIFIER This part replaces 218-452. Price: $244.13 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $9.99 |
| 31 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 32 |
3217-5 |
NUT-HEX Price: $0.25 |
| 33 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 33 |
532411935 |
KEY.CHAIN.BLISTER.PACK.GEN.INT Price: $6.99 |
| 34 |
322-2 |
SCREW-HH Price: $0.69 |
| 34 |
532110712 |
SWITCH LT Price: $4.99 |
| 35 |
32153-3 |
NUT-HEX, SIDE DEFORM This part replaces 32146-5. Price: $5.59 |
| 36 |
10-9240 |
SEAT CLAMP Price: $18.21 |
| 37 |
322-3 |
SCREW-HH Price: $0.79 |
| 38 |
603773 |
LOCKNUT This part replaces 32146-2. Price: $2.09 |
| 39 |
10-7300 |
DISCONTINUED Price: Call Us |
| 40 |
256-113 |
BUSHING-FLANGE Price: $5.58 |
| 40 |
532401098 |
HARNESS IGN. DASH Price: $74.99 |
| 41 |
10-7210 |
DISCONTINUED Price: Call Us |
| 41 |
539990071 |
HCS 1/4-20. This part replaces 817720408. Price: $1.99 |
| 42 |
10-7370 |
TUBE CAP W A *R Price: $26.93 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
32121-34 |
PIN-ROLL Price: $1.31 |
| 43 |
582042801 |
SOLENOID.STARTER.BRASS.PLUNGER This part replaces 532192507. Price: $7.99 |
| 44 |
3254-6 |
WASHER-LOCK, INTERNAL Price: $0.31 |
| 45 |
3296-42 |
NUT-LOCK, NI This part replaces 32146-17. Price: $0.28 |
| 46 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 46 |
586161801 |
GUAGE.SRVCMNDR.HRMTR. This part replaces 532401763. Price: $17.99 |
| 47 |
2412-4 |
CLAMP-R Price: $4.22 |
| 48 |
10-7980 |
DISCONTINUED Price: Call Us |
| 49 |
10-8150 |
DISCONTINUED Price: Call Us |
| 50 |
6-9150 |
DISCONTINUED Price: Call Us |
| 51 |
10-7220 |
STEERING CABLE Price: $131.91 |
| 52 |
3290-314 |
TINNERMAN Price: $0.54 |
| 53 |
10-7240 |
SLEEVE-PULLEY, STEERING Price: $3.73 |
| 54 |
3296-42 |
NUT-LOCK, NI This part replaces 32146-17. Price: $0.28 |
| 55 |
3290-321 |
SCREW-HWH Price: $3.99 |
| 55 |
532171877 |
BOLT, 5/16-18 X 1 3/4 This part replaces 817060512. Price: $3.99 |
| 71 |
532194276 |
HARNESS-CHASSIS SUB Price: $24.99 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $11.99 |
| 87 |
532197802 |
SWITCH.INTRLCK.CLUTCH. Price: $11.99 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY Price: $2.99 |
| 91 |
532190270 |
STRAP.BATTERY.MOUNT.FRONT Price: $5.99 |
| 92 |
532196615 |
HARNESS.PIGTAIL.CONSLE Price: $11.99 |
| 93 |
532192540 |
SCREW.PLASTITE Price: $2.99 |
| 94 |
532191834 |
MODULE.REVERSE.ROS Price: $22.99 |
| 99 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $2.99 |
