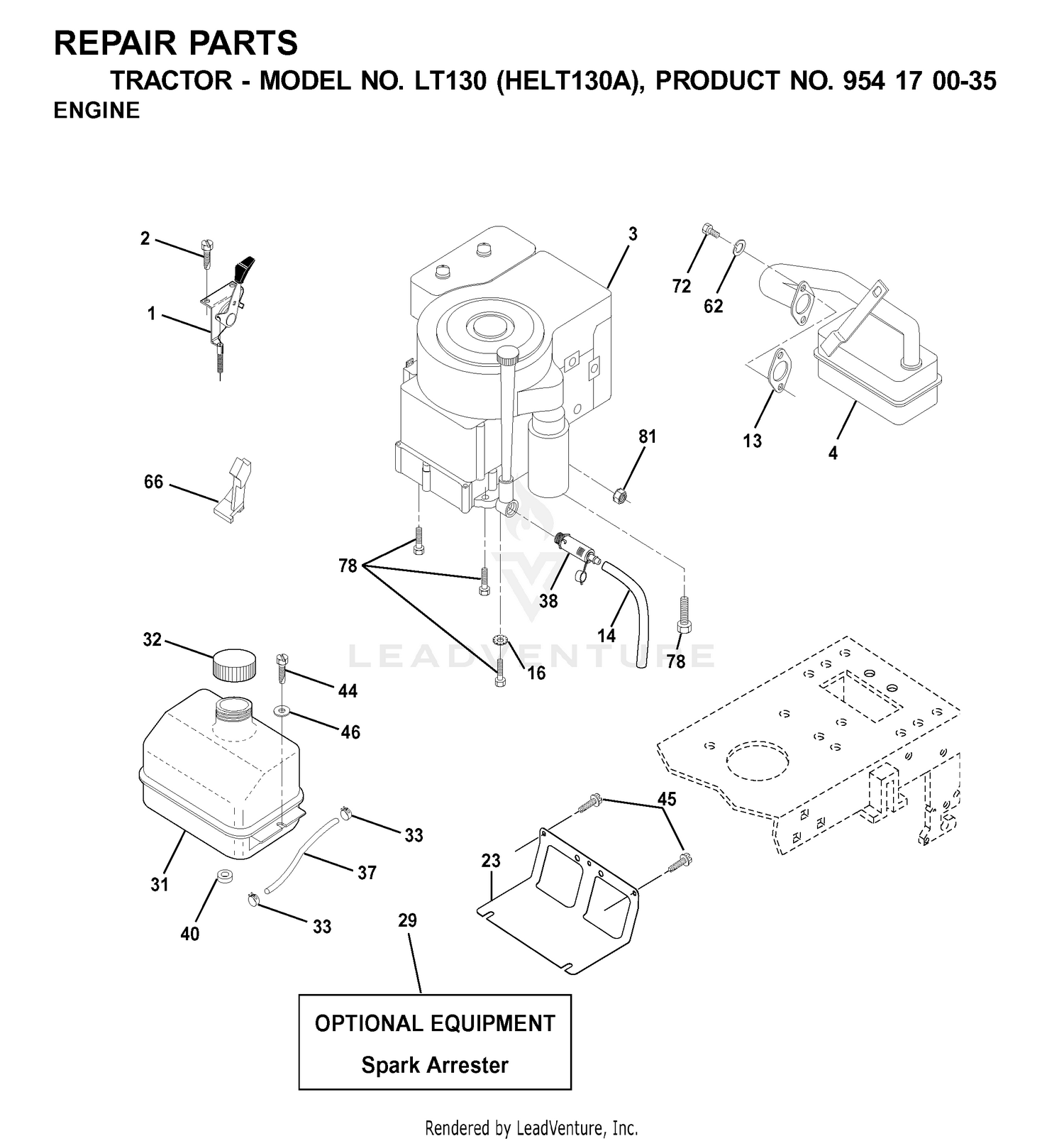

| Ref | Part Number | Description |
|---|
| 1 |
532170865 |
THROTTLE.CONTROL.CABLE.BLACK Price: $22.99 |
| 2 |
596582501 |
Bolts This part replaces 817720410. Price: $2.99 |
| 4 |
532137348 |
MUFFLER.SINGLE.B&S.10-12HP Price: $89.99 |
| 13 |
532272293 |
GASKET.ENG.1.313 ID.TIN PLATED This part replaces 532165291. Price: $8.99 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 16 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 20 |
98-9453 |
PULLEY-DYNAMO Price: $138.04 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
98-7708 |
NUT Price: $7.76 |
| 31 |
532184900 |
TANK.ASM.FUEL.FRONT.W/CAP This part replaces 532109202. Price: $39.99 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 38 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532148315. Price: $14.99 |
| 40 |
532124028 |
BUSHING.SNAP.NYL.BLK. Price: $4.99 |
| 40 |
98-7709 |
COLLAR Price: $8.79 |
| 44 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 50 |
107-0136 |
ROTOR ASM Price: $268.62 |
| 60 |
98-7711 |
COVER-BEARING Price: $7.32 |
| 66 |
532127951 |
STOP THROTTLE Price: $2.52 |
| 70 |
107-0138 |
BEARING-BALL Price: $48.37 |
| 72 |
596134201 |
Screws This part replaces 871070512. Price: $2.99 |
| 78 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 90 |
131-9573 |
FRAME-END, DRIVE Price: Call Us |
| 100 |
98-7715 |
PLATE-RETAINER Price: $9.38 |
| 110 |
98-7716 |
SCREW-HEAD, ROUND Price: $0.91 |
| 120 |
98-7717 |
BOLT-THROUGH Price: $9.75 |
| 130 |
133-2811 |
BEARING Price: $46.67 |
| 140 |
121-3812 |
FRAME-END Price: $148.26 |
| 150 |
121-3813 |
COVER-END Price: $40.62 |
| 160 |
121-3805 |
RECTIFIER ASM Price: $264.23 |
| 170 |
117-0321 |
INSULATION-BRUSH Price: $39.99 |
| 180 |
107-0141 |
BRUSH HOLDER ASM Price: $107.10 |
| 190 |
98-7724 |
BRUSH Price: $12.41 |
| 200 |
98-7725 |
SPRING-BRUSH Price: $4.32 |
| 210 |
98-7726 |
SCREW-HEAD, ROUND Price: $0.42 |
| 220 |
98-7727 |
SCREW-HEAD, ROUND Price: $0.94 |
| 230 |
98-7728 |
SCREW-HEAD, ROUND Price: $0.70 |
| 240 |
98-7729 |
BOLT Price: $2.35 |
| 250 |
98-7730 |
NUT Price: $1.31 |
| 260 |
98-7731 |
BOLT Price: $3.94 |
| 270 |
98-7732 |
NUT Price: $1.45 |
| 275 |
100-1776 |
NUT Price: $0.87 |
| 280 |
121-3809 |
REGULATOR ASM Price: $362.38 |
