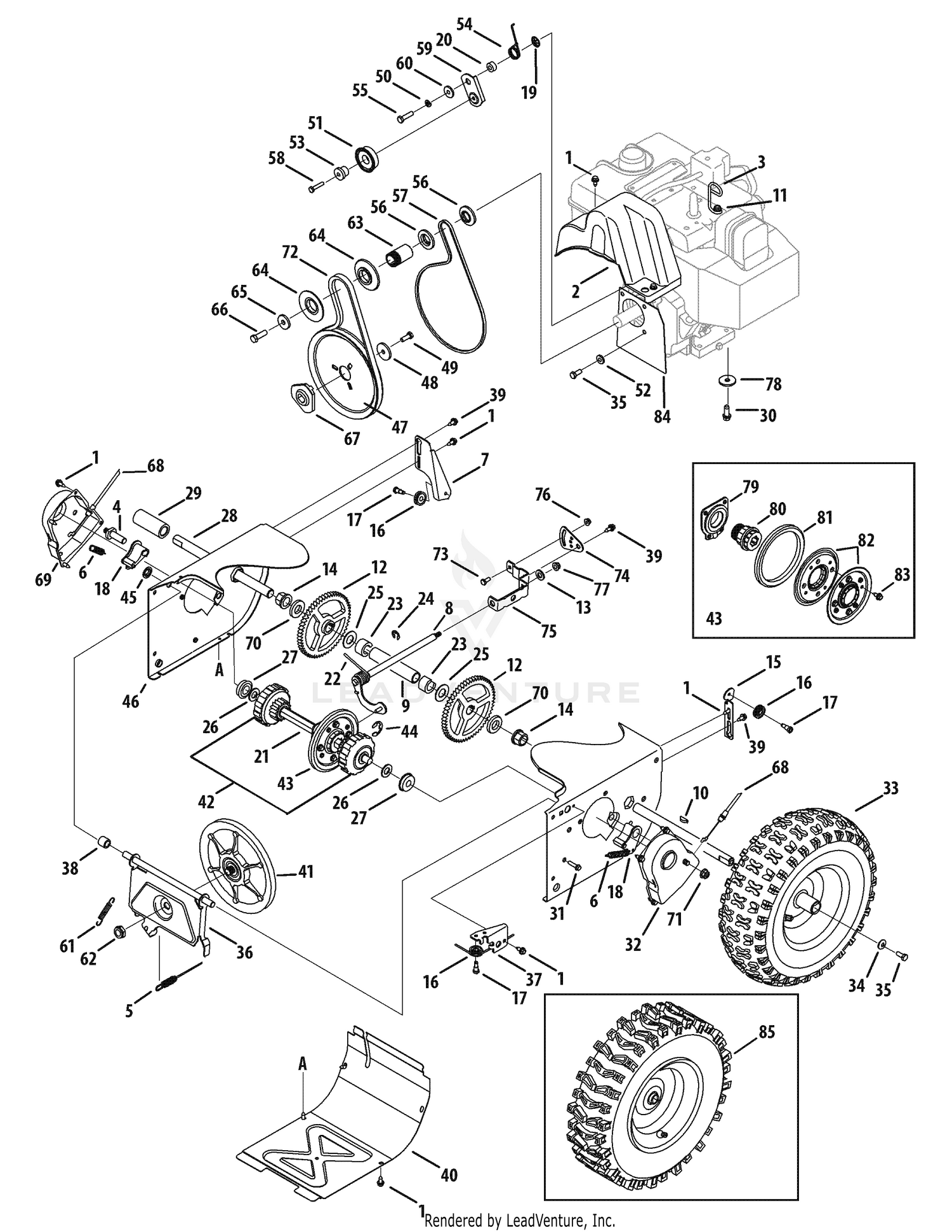

| Ref | Part Number | Description |
|---|
| 1 |
710-1652 |
AB Screw, 1/4-20 x 0.625 Price: $3.86 |
| 2 |
731-05353B |
BELT COVER Not Available This part replaces 731-05353. Price: |
| 3 |
732-0705 |
Cable Guide Price: $10.40 |
| 4 |
711-1268B |
Actuator Shaft Price: $8.86 |
| 5 |
946-04229B |
Wheel Clutch Cable, 44.95" This part replaces 746-04229. Price: $18.98 |
| 6 |
732-04345 |
Extension Spring Price: $9.09 |
| 7 |
790-03997 |
CABLE GUIDE BRACKET (DRIVE) This part replaces 790-00207A. Price: $4.55 |
| 8 |
684-04156A |
Shift Rod Assembly Price: $54.39 |
| 9 |
750-04474 |
Axle Support Tube Price: $36.90 |
| 10 |
714-0126 |
Hi-pro Key Price: $4.05 |
| 11 |
710-0602 |
TT Screw, 5/16-18 x 1.00 Price: $4.05 |
| 12 |
917-04210 |
Gear, 56T This part replaces 717-04210. Price: $69.94 |
| 13 |
936-3015 |
FLAT WASHER This part replaces 736-3015. Price: $3.89 |
| 14 |
941-0245 |
Hex Flange Bearing, .75 ID This part replaces 741-0245. Price: $9.07 |
| 15 |
790-00206B |
AUGER CABLE GUIDE BRACKET This part replaces 790-00206A. Price: $7.40 |
| 16 |
756-0625 |
Cable Roller Price: $8.52 |
| 17 |
738-0924A |
C Screw, 1/4-28 x 0.375 Price: $5.94 |
| 18 |
618-04287 |
Dogg Assembly - RH Price: $20.42 |
| 18 |
618-04288 |
DOGG ASSEMBLY (LH) Not Available Price: |
| 19 |
726-04012 |
Speed Nut Price: $6.20 |
| 20 |
750-04477A |
Spacer, .340 x .750 x .330 This part replaces 750-04477. Price: $4.53 |
| 21 |
711-04416A |
Hex Drive This part replaces 711-04416. Price: $112.65 |
| 22 |
732-04311A |
TORSION SPRING This part replaces 732-04311. Price: $9.09 |
| 23 |
731-05297 |
Spacer Price: $8.47 |
| 24 |
916-0104 |
E-Ring This part replaces 716-0104. Price: $3.37 |
| 25 |
736-0188 |
Flat Washer, .76 x 1.49 x .06 Price: $3.75 |
| 26 |
736-0626 |
Flat Washer Price: $8.32 |
| 27 |
741-04076 |
Ball Bearing Price: $13.01 |
| 28 |
938-04180 |
Axle, .75 x 11.12 This part replaces 738-04180. Price: $62.14 |
| 29 |
731-04873 |
Spacer Price: $8.93 |
| 30 |
710-0654A |
TT Sems Screw, 3/8-16 x 1.0 Price: $3.75 |
| 31 |
710-0788 |
TT Screw, 1/4-20 x 1.0 Price: $6.20 |
| 32 |
790-00185 |
HEX SHAFT RETAINER (LH) Not Available Price: |
| 33 |
634-04141 |
Wheel Complete Price: $173.67 |
| 34 |
736-0242 |
Bell Washer Price: $3.75 |
| 35 |
710-0627 |
Hex Bolt, 5/16-24 x 0.75 Price: $3.68 |
| 36 |
684-04154B-0637 |
Friction Wheel Support Bracket This part replaces 684-04154. Price: $36.47 |
| 37 |
790-00096 |
Auger Cable Guide Bracket Price: $6.65 |
| 38 |
748-0190 |
Spacer Price: $5.48 |
| 39 |
738-04184A |
Shoulder Screw Price: $5.99 |
| 40 |
790-00316 |
Frame Cover Price: $33.77 |
| 41 |
656-04055A |
FRICTION WHEEL DISC ASSEMBLY This part replaces 656-04025A. Price: $52.47 |
| 42 |
918-04322A |
Drive Shaft Assembly This part replaces 618-04283. Price: $434.85 |
| 43 |
684-04159C |
Friction Wheel Assembly This part replaces 684-04159. Price: $89.34 |
| 44 |
716-0136 |
Retainer Ring Price: $7.56 |
| 45 |
726-0221 |
Speed Nut Price: $5.34 |
| 46 |
790-00183E |
DRIVE FRAME HOUSING This part replaces 790-00183. Price: $75.37 |
| 47 |
756-04109 |
Auger Pulley Price: $47.55 |
| 48 |
736-0505 |
Flat Washer Price: $5.65 |
| 49 |
710-1245B |
Hex Bolt, 5/16-24 x 0.875 Price: $7.21 |
| 50 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 51 |
684-04169 |
Pulley Assembly Price: $29.87 |
| 52 |
748-0234 |
Shoulder Spacer Price: $3.86 |
| 53 |
750-04571 |
Spacer Price: $6.01 |
| 54 |
732-04308C |
Torsion Spring, .850 dia. x .333 lg. This part replaces 732-04308A. Price: $4.42 |
| 55 |
710-0672 |
Hex Screw, 5/16-24 x 1.25 Price: $3.85 |
| 56 |
756-04252 |
Pulley Half Price: $5.62 |
| 57 |
954-0367 |
Wheel Drive Belt This part replaces 754-0367. Price: $25.67 |
| 58 |
710-0809 |
TT Screw, 1/4-20 x 1.25 Price: $6.37 |
| 59 |
790-00208D |
Wheel Drive Idler Bracket This part replaces 790-00208B. Price: $7.85 |
| 60 |
748-04112B |
Shoulder Spacer, .3175 x .5 x .0975 This part replaces 748-04112. Price: $3.60 |
| 61 |
932-0264 |
Extension Spring This part replaces 732-0264. Price: $4.40 |
| 62 |
712-0413 |
Jam Lock Nut, 5/8-18 Price: $5.50 |
| 63 |
750-04303 |
Spacer Price: $15.09 |
| 64 |
756-06563 |
HALF PULLEY A2.76 x 1.140 SPLINE This part replaces 756-04113. Price: $3.40 |
| 65 |
736-0247 |
Flat Washer Price: $8.82 |
| 66 |
710-0191 |
Hex Bolt, 3/8-24 x 1.25 Price: $4.02 |
| 67 |
748-04053A |
Pulley Adapter Price: $19.41 |
| 68 |
946-0956C |
Steering Cable This part replaces 746-0956A. Price: $21.54 |
| 69 |
790-00186 |
HEX SHAFT RETAINER (RH) Not Available Price: |
| 70 |
750-0767 |
Axle Spacer Price: $5.11 |
| 71 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 72 |
954-04050A |
Auger Drive Belt This part replaces 754-04050. Price: $25.43 |
| 73 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 74 |
790-00217A |
Speed Selector Pivot Bracket Price: $8.22 |
| 75 |
790-00218A |
Speed Selector Shift Bracket Price: $41.84 |
| 76 |
712-04064 |
Flange Lock Nut 1/4-20 Price: $3.64 |
| 77 |
712-04063 |
Flange Lock Nut 1/4-20 Price: $3.56 |
| 78 |
736-320 |
Flat Washer Price: Call Us |
| 79 |
618-0063A |
Bearing Assembly Price: $80.89 |
| 80 |
718-04144 |
Friction Wheel Hub Price: Call Us |
| 81 |
935-04054A |
FRICTION WHEEL 5.50OD This part replaces 735-04054. Price: $35.10 |
| 82 |
790-00174C |
Friction Wheel Plate This part replaces 790-00174. Price: $13.09 |
| 83 |
710-0896 |
AB Screw Price: $3.86 |
| 84 |
790-00289B-0637 |
COVER PLATE (POWDER BLACK) This part replaces 790-00289A. Price: $23.34 |
| 85 |
634-04136 |
Wheel (Troy-Bilt) - LH Price: $202.62 |
