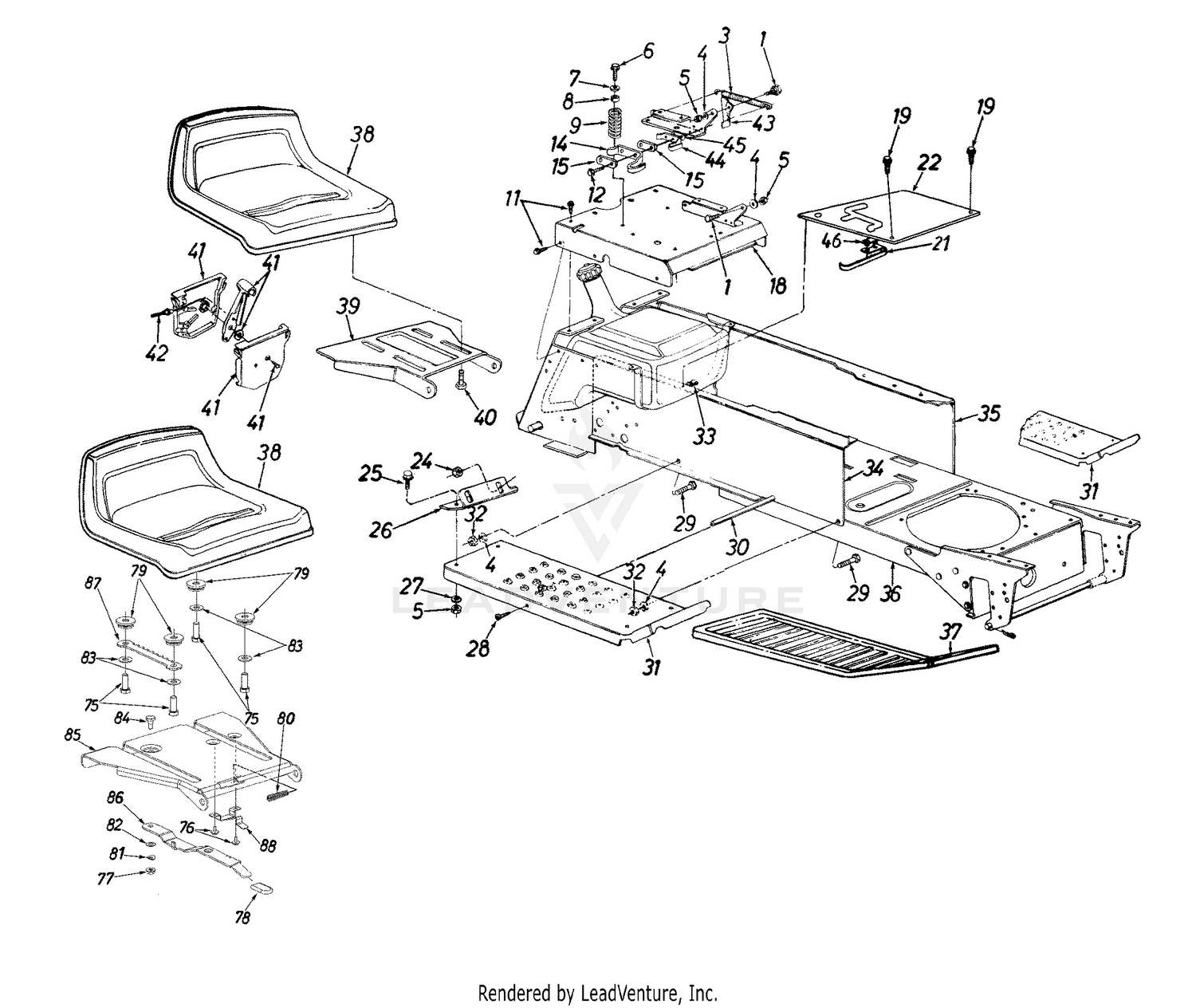

| Ref | Part Number | Description |
|---|
| 1 |
738-0296 |
Shld. Bolt .437" Dia. x .162" Price: $3.93 |
| 3 |
932-0581B |
Extension Spring This part replaces 732-0581B. Price: $12.55 |
| 4 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 5 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
| 6 |
710-0650 |
Hex Wash. Hd. Tap Scr. 5/16 -18 x .7" Lg. Price: $3.71 |
| 7 |
736-0159 |
Fl-Wash. .344" I.D. Price: $3.71 |
| 8 |
722-0160 |
RUBBER BUSHING .318IDX.930OD Not Available Price: |
| 9 |
732-0588 |
COMPRESSION SPRING Not Available Price: |
| 11 |
710-0726 |
Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg. Price: $3.82 |
| 14 |
925-1303 |
Outer Seat Spring Switch This part replaces 725-1303. Price: $5.58 |
| 15 |
726-0279 |
Insulator Plate Price: $3.22 |
| 19 |
710-0351 |
Truss Mach. B-Tap Scr. Price: $3.90 |
| 24 |
712-0271 |
Hex Sems Nut 1/4-20 Price: $3.78 |
| 25 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 26 |
15846 |
BRACKET-FENDER (RH) Not Available Price: |
| 27 |
736-0242 |
Bell-Wash. .345" I.D. x .88" O.D. Price: $3.75 |
| 28 |
710-0323 |
Truss Mach. Scr. 5/16-18 x .75" Lg. Price: $4.02 |
| 29 |
710-1012 |
Rib Neck Bolt 5/16-24 x .75" Lg. Price: $3.94 |
| 30 |
738-0435 |
ROD-RUNNING BOARD Not Available Price: |
| 31 |
16922 |
RUNNING BOARD (RH) Not Available Price: |
| 32 |
912-3057 |
Hex Nut 5/16-24 Thd. This part replaces 712-0123. Price: $5.94 |
| 33 |
726-0139 |
Speed Nut #10Z Price: $5.94 |
| 34 |
17360C |
FRAME (RH) S Not Available Price: |
| 35 |
17361D |
FRAME (LH) S Not Available Price: |
| 36 |
17359C |
FRAME-LOWER Not Available Price: |
| 37 |
731-1052 |
LARGE FOOT PAD Not Available Price: |
| 38 |
957-0378 |
LOW BACK SEAT BLACK W/SWITCH Not Available This part replaces 757-0363A. Price: |
| 39 |
783-0039A |
SEAT PIVOT BRACKET Not Available Price: |
| 40 |
710-0870 |
Hex Tap Scr. 3/8-16 x .62" Lg. Price: $5.44 |
| 41 |
831-0823A |
Throttle Control Box Ass'y. Price: $30.59 |
| 42 |
946-0634 |
Throttle Wire This part replaces 746-0634. Price: $10.24 |
| 43 |
17239C |
BRACKET-SEAT LIFT Not Available This part replaces 17239A. Price: |
| 44 |
725-1439 |
Seat Spring Switch Price: $7.18 |
| 45 |
726-0278 |
Insulator Boss Plate Price: $5.95 |
| 46 |
926-0320 |
Insulatop Nut Plate This part replaces 726-0320. Price: $6.01 |
| 15847 |
Fender |
Bracket-L.H. Price: Call Us 15847 |
| 16921 |
RUNNING |
BOARD (LH) Not Available Price: 16921 |
| 17407 |
FENDER |
BRACKET - L.H Not Available Price: 17407 |
